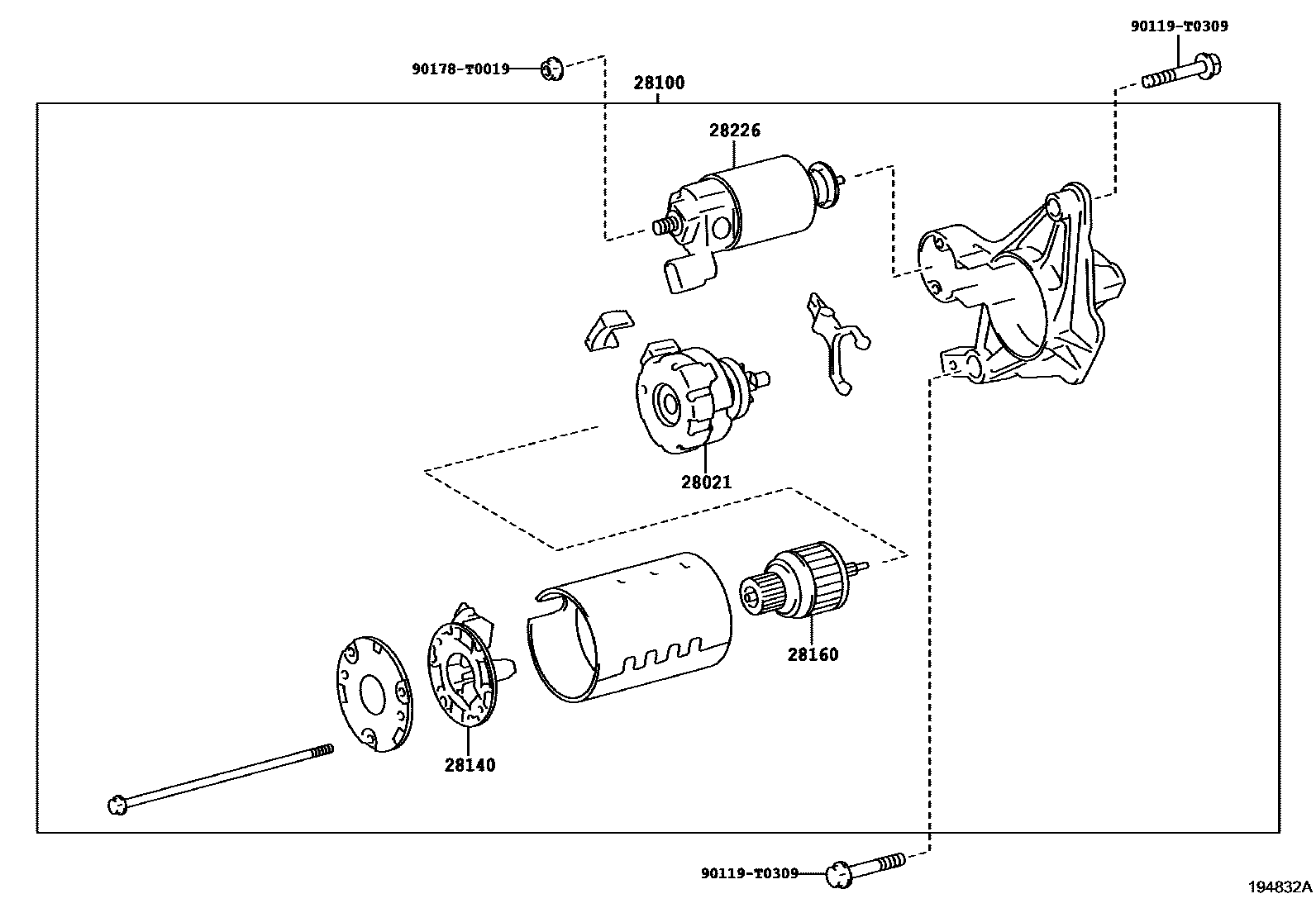

STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0Y300i2NRFE..NSP170201607-201907

28100STARTER ASSY

main28100-0Y300i2NRFE..NSP170201607-201907

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-0Y300i2NRFE..NSP170201607-201907

28160ARMATURE ASSY, STARTER

main28160-0Y300i2NRFE..NSP170201607-201907

28226STARTER KIT, BATTERY TERMINAL

main28226-0Y340i2NRFE..NSP170201607-201907

90119T0309

main90119-T0309

90178T0019

main90178-T0019

7 parts on this diagram · 1 diagram in section
