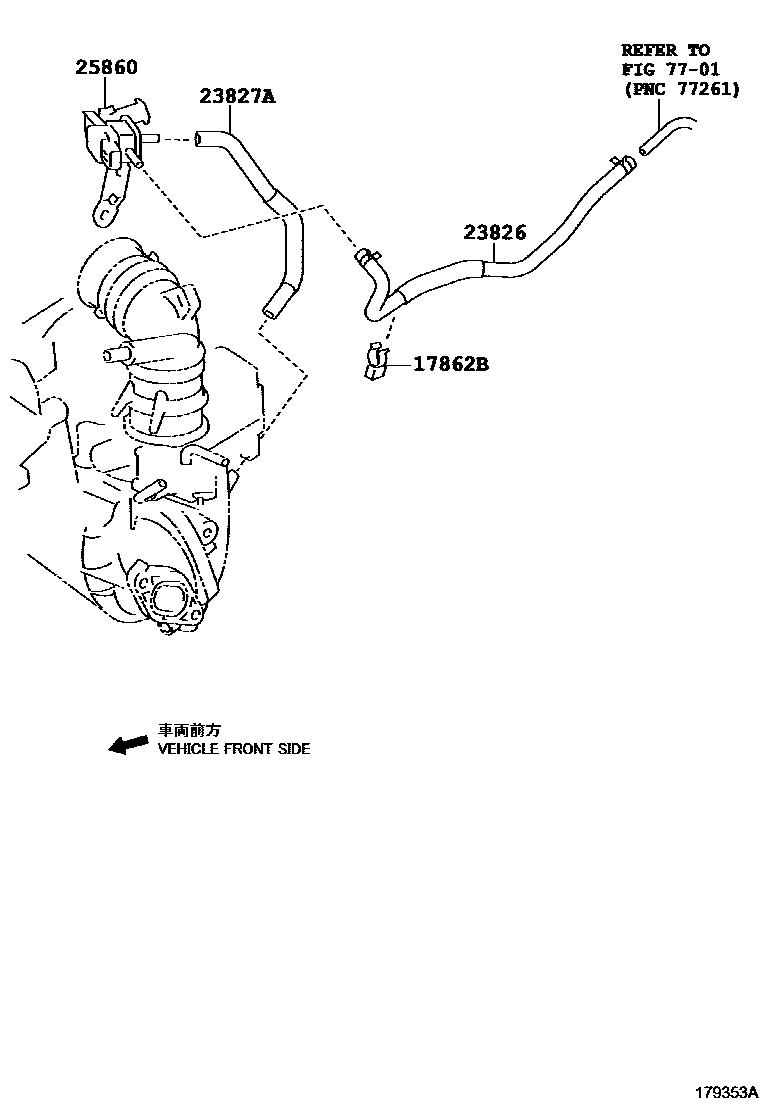

VACUUM PIPING

0001 1 0002 1 0003 1SINGAPORE SPEC 0004 1 0005 1

17862BCLAMP, HOSE

main23847-0Y040i2NRFE..NSP170201607-201907

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0Y040i2NRFE..NSP170201607-201803

main23826-0Y340i2NRFE..NSP170201803-201907

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0Y110i2NRFE..NSP170201607-201803

main23827-0Y270i2NRFE..NSP170201803-201907

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0Y080i2NRFE..NSP170201607-201803

main25860-0Y090i2NRFE..NSP170..6F..TH201907-202203

7701

5 parts on this diagram · 5 diagrams in section
