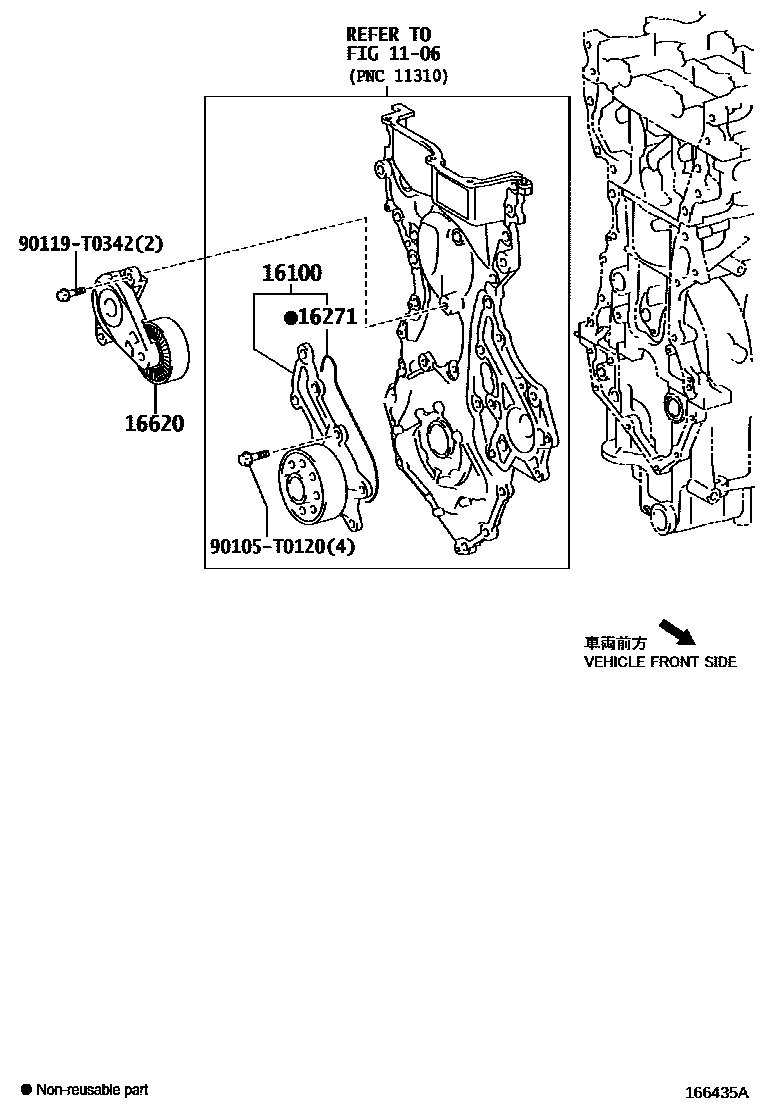

WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-B9490i2NRFE..NSP170201607-201907

16271GASKET, WATER PUMP

main16271-0Y030i2NRFE..NSP170201607-201907

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0Y020i2NRFE..NSP170201607-201710

main16620-0Y060i2NRFE..NSP170201710-201907

main16620-0Y061i2NRFE..NSP170..6F..TH201912-202203

main16620-0Y062i2NRFE..NSP170..CVT;2NRFE..NSP170..6F..IDN202209

90105T0120

main90105-T0120

90119T0342

main90119-T0342

6 parts on this diagram · 1 diagram in section
