PARTIAL ENGINE ASSEMBLY

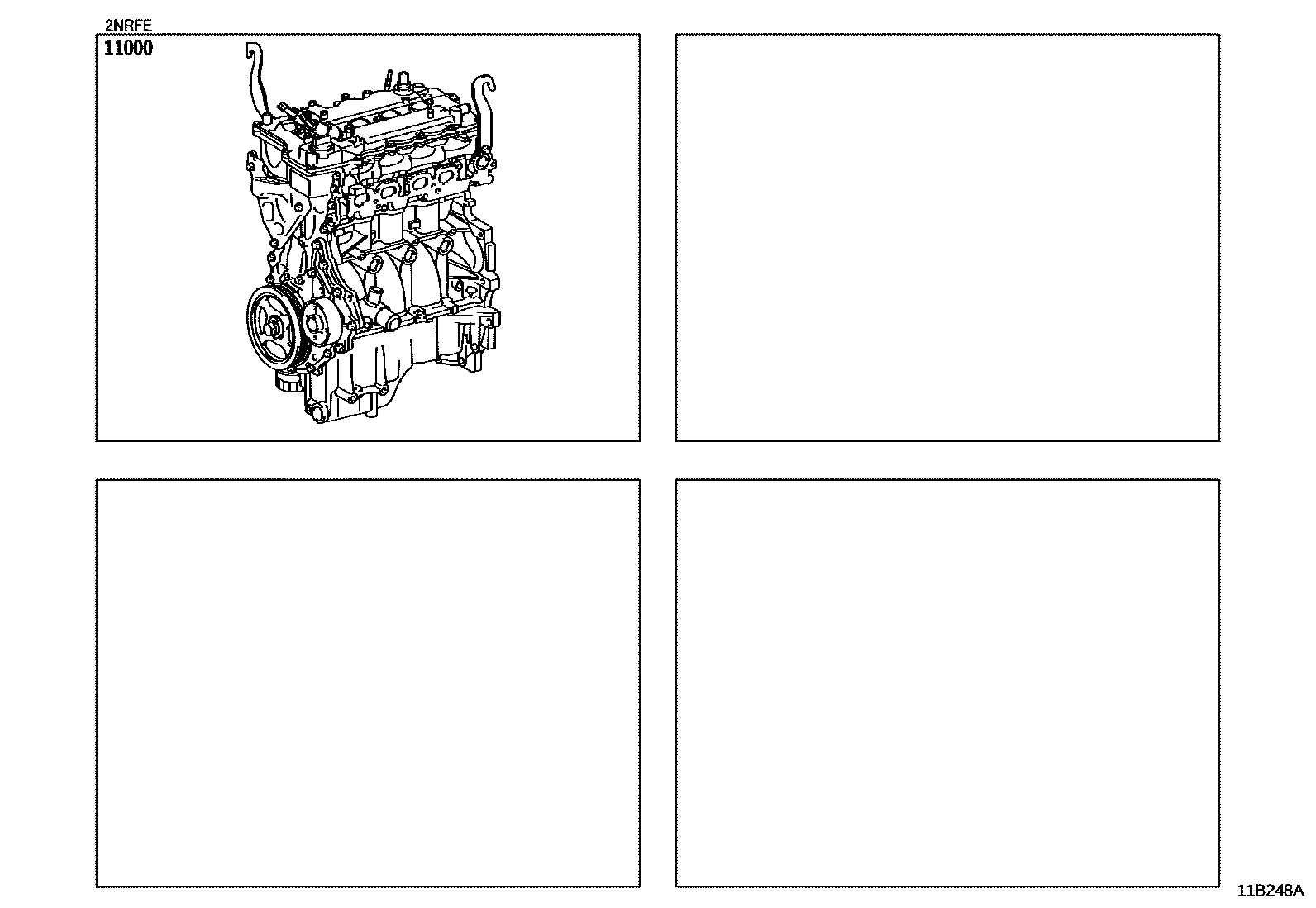

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0Y130i201607-201907
main19000-0Y390i202002
main19000-0Y440i202008

1 parts on this diagram · 1 diagram in section
