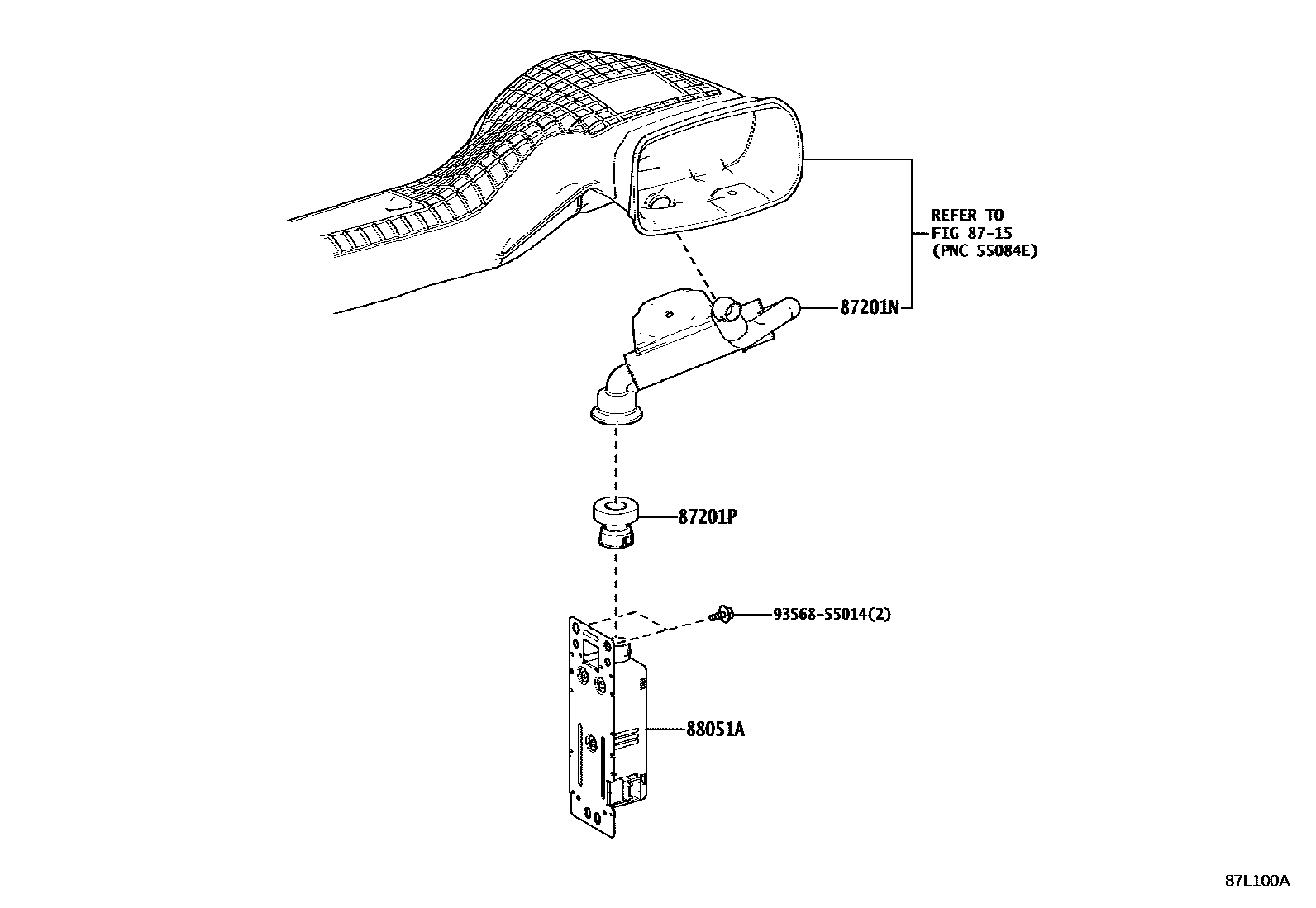

AIR PURIFIER OR ION GENERATOR

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main87201-52240iMXPL10;MXPC10..U202207

87201PDUCT SUB-ASSY, AIR ,NO.2

main87201-K0010iMXPL10;MXPC10..U202207

88051AGENERATOR SUB-ASSY,ION

main88051-48010iMXPL10;MXPC10..U202207

9356855014

main93568-55014

5 parts on this diagram · 1 diagram in section
