REAR WIPER

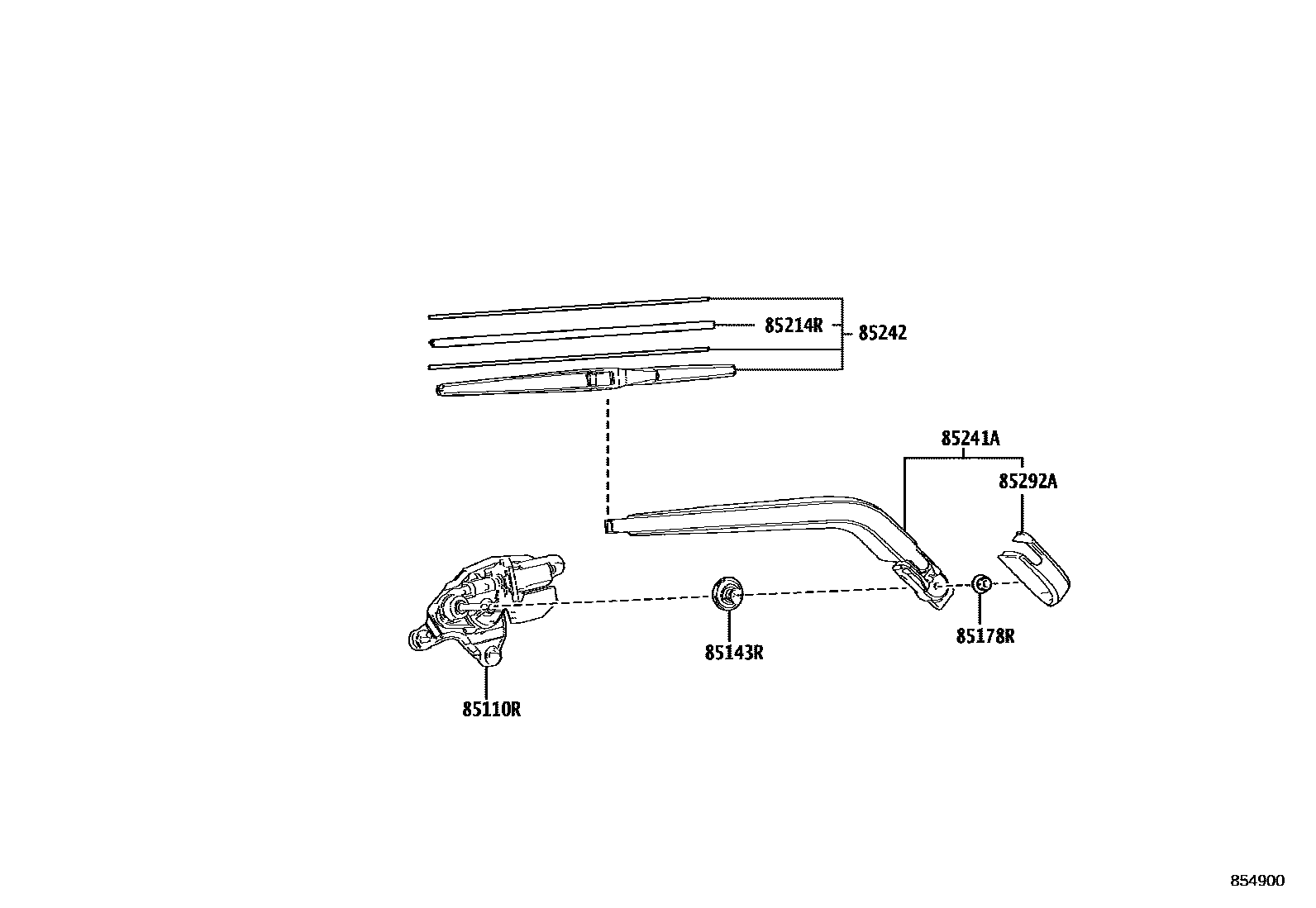

Parts diagram

85110RMOTOR ASSY, REAR WIPER

main85130-52310i202207-202405

85143RGROMMET, REAR WIPER MOTOR

main85143-52070i202207-202405

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158i202207-202405

85214RRUBBER, REAR WIPER

main85214-42040i202207-202405

85241AARM, REAR WIPER

main85241-52170i202207-202405

85242BLADE, RR WIPER

main85242-60130i202207-202405

85292ACAP, REAR WIPER ARM HEAD

main85292-42010i202207-202405

7 parts on this diagram · 1 diagram in section
