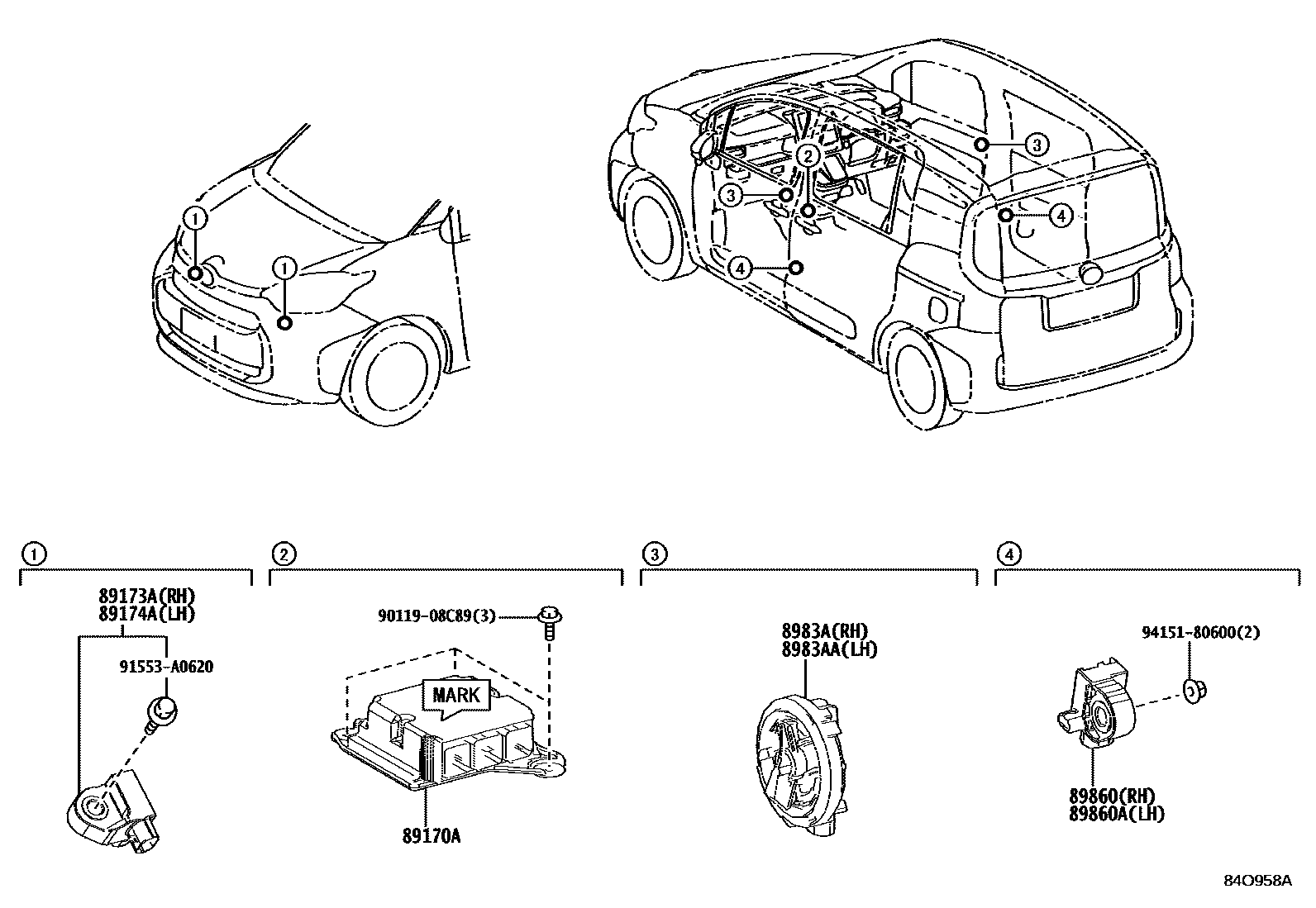

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-48F40iMXPC10,MXPL10202207-202307

*614,MARK89170-48F40

main89170-52U00iMXPC10..N202307-202405

*614,MARK89170-52U00

89173ASENSOR, AIRBAG, FRONT RH

main89173-59415iMXPC10,MXPL10202207-202307

main89173-59475iMXPC10..N202307-202405

89174ASENSOR, AIRBAG, FRONT LH

main89173-59415iMXPC10,MXPL10202207-202307

main89173-59475iMXPC10..N202307-202405

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-52020iMXPC10,MXPL10202207-202307

main8983A-52030iMXPC10..N202307-202405

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-52020iMXPC10,MXPL10202207-202307

main8983A-52030iMXPC10..N202307-202405

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-52100iMXPC10,MXPL10202207-202307

main89831-52160iMXPC10..N202307-202405

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-52100iMXPC10,MXPL10202207-202307

main89831-52160iMXPC10..N202307-202405

9011908C89

main90119-08C89

91553A0620

main91553-A0620

9415180600

main94151-80600

10 parts on this diagram · 1 diagram in section
