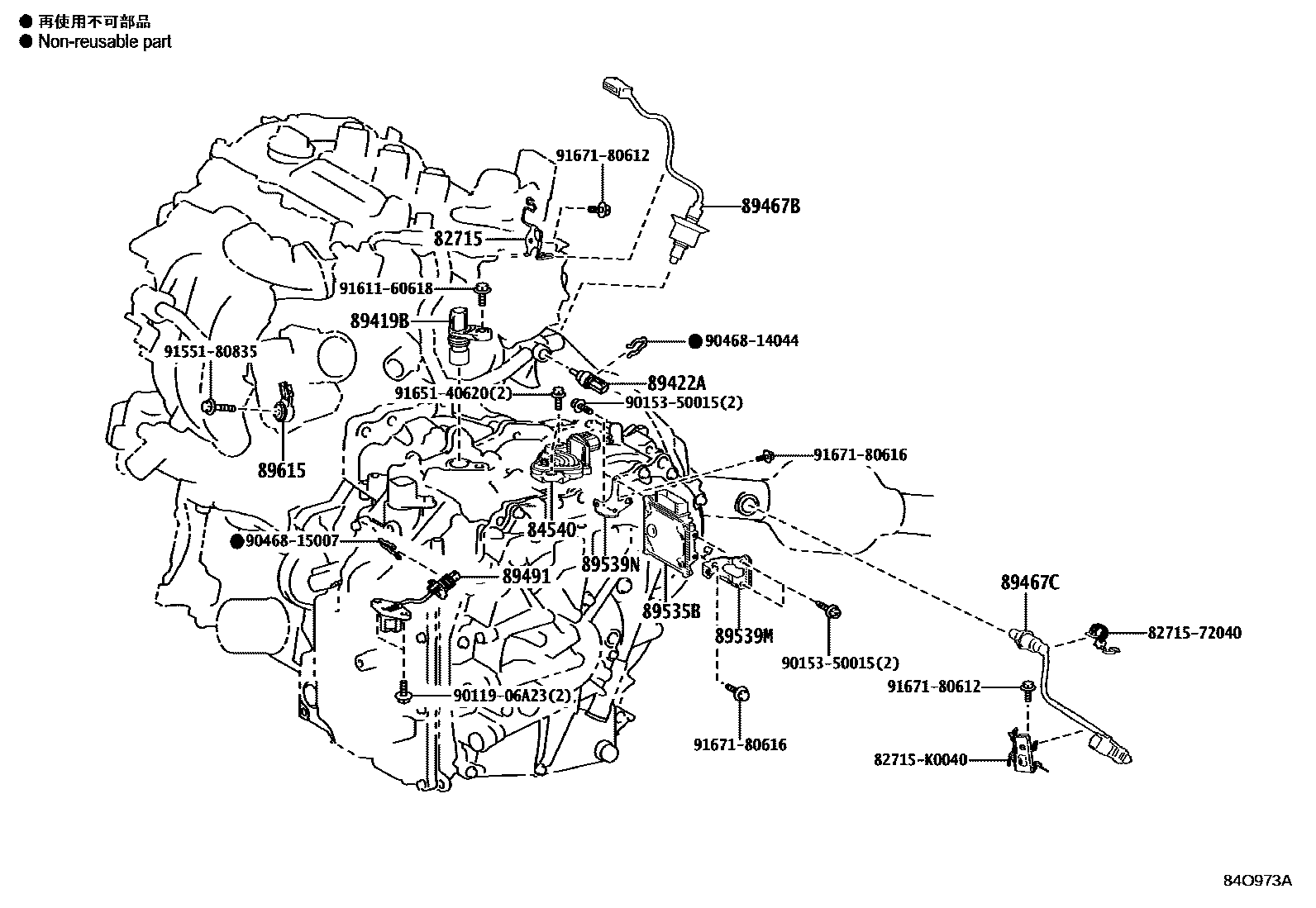

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1ENGINE ROOM RELAY BLOCK 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1STEERING 0009 1SEAT 0010 1DOOR & ROOF 0011 1FLOOR & BACK DOOR 0012 1REAR RELAY BLOCK

82715BRACKET,WIRING HARNESS CLAMP

main82715-K0030iMXPL10;MXPC10..U202207-202405

84540SWITCH ASSY, NEUTRAL START

main84540-K0010iMXPC10..N202207-202405

89419BSENSOR, SHIFT STROKE

main89419-K2010iMXPC10..N202207-202405

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMXPL10;MXPC10..U202207-202405

89467BSENSOR, AIR FUEL RATIO

main89467-K0020iMXPC10..N202207-202405

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-52370iMXPL10;MXPC10..U202405

main89467-K0030iMXPC10,MXPL10202207-202405

89491SENSOR, ENGINE OIL LEVEL

main89491-50082iMXPC10..N202207-202405

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-52170iMXPC10202207-202405

*614

main89535-52310iMXPC10..U202405-202508

*614

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-K0010iMXPC10..N202207-202405

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-K0020iMXPC10..N202207-202405

89615SENSOR, KNOCK CONTROL

main89615-20090iMXPC10..N202207-202405

8271572040BRACKET,WIRING HARNESS CLAMP

main82715-72040

82715K0040BRACKET,WIRING HARNESS CLAMP

main82715-K0040

9011906A23

main90119-06A23

9015350015

main90153-50015

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9161160618

main91611-60618

9165140620

main91651-40620

9167180612

main91671-80612

9167180616

main91671-80616

22 parts on this diagram · 12 diagrams in section
