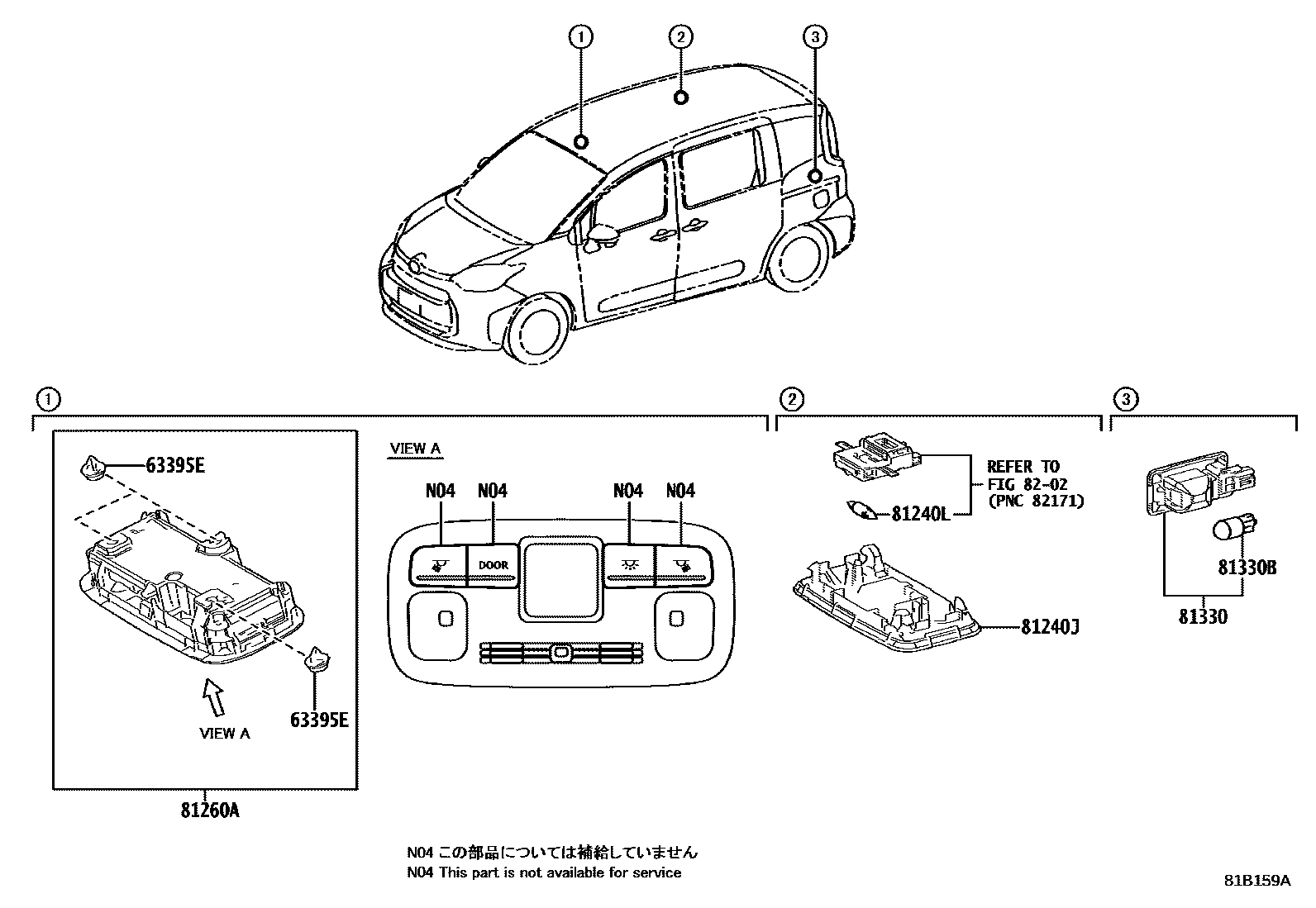

INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

main90467-09240×3iMXPC10..N202207-202405

81240JLAMP ASSY, ROOM

main81240-42020-B0iMXPC10..N202207-202405

LT.GRAY,TRIM2#

81240LBULB, ROOM LAMP

main90981-14011iMXPC10..N202207-202405

12V 8W

81260ALAMP ASSY, MAP

main81260-52190-B0iMXPC10,MXPL10..N; MXPC10,MXPL10..U202207-202311

LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#

main81260-52191-B0iMXPC10..N202312-202405

LT.GRAY,TRIM2#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-58010iMXPC10..N202207-202405

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iMXPC10..N202207-202405

12V 5W

8202WIRING & CLAMP

→ Go to FIG 82-02

7 parts on this diagram · 1 diagram in section
