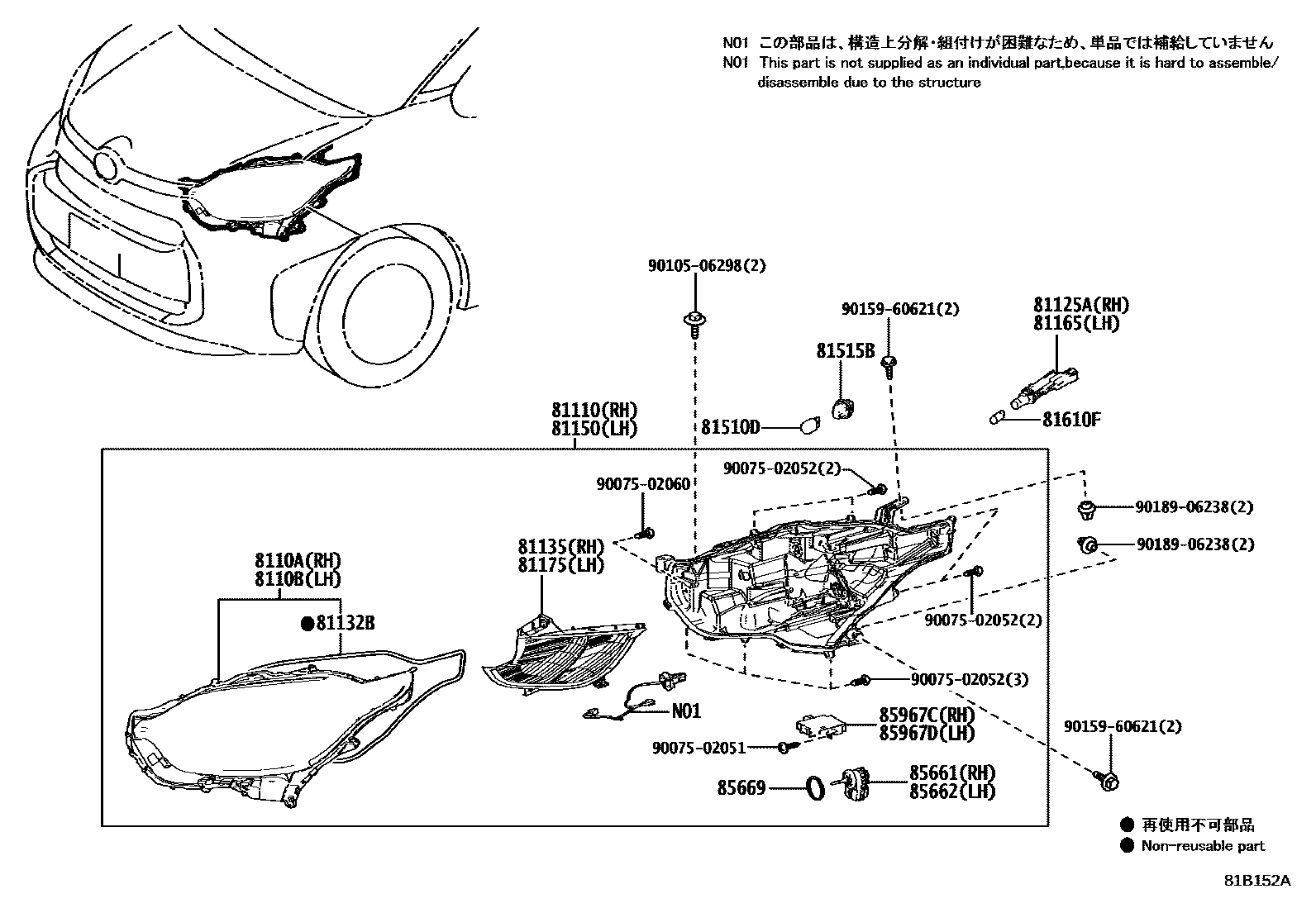

HEADLAMP

0001 1W/O(*AHS) 0002 1W(*AHS)

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-52P00iMXPC10..N202207-202405

main8110A-52P10iMXPC10,MXPL10..U202207

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-52P00iMXPC10..N202207-202405

main8110B-52P10iMXPC10,MXPL10..U202207

81110HEADLAMP ASSY, RH

main81105-52P00iMXPC10..N202207-202405

main81145-52P10iMXPC10,MXPL10..U202207

81125ACORD, HEADLAMP, RH

main81125-52M10iMXPC10..N202207-202405

81132BGASKET, HEADLAMP LENS

main81132-50590×2iMXPC10..N202207-202405

81135UNIT ASSY, HEADLAMP, RH

main81130-52P00iMXPC10..N202207-202405

main81130-52P10iMXPC10,MXPL10..U202207

81150HEADLAMP ASSY, LH

main81106-52P00iMXPC10..N202207-202405

main81185-52P10iMXPC10,MXPL10..U202207

81165CORD, HEADLAMP, LH

main81125-52M10iMXPC10..N202207-202405

81175UNIT ASSY, HEADLAMP, LH

main81170-52P00iMXPC10..N202207-202405

main81170-52P10iMXPC10,MXPL10..U202207

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iMXPC10..N202207-202405

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iMXPC10..N202207-202405

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069×2iMXPL10..N202207

12V 5W

85661MOTOR, HEADLAMP LEVELING, RH

main85661-45010iMXPC10,MXPL10..U202207

main85661-52030iMXPC10..N202207-202405

85662MOTOR, HEADLAMP LEVELING, LH

main85661-52030iMXPC10..N202207-202405

main85691-45010iMXPC10,MXPL10..U202207

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iMXPC10..N202207-202405

85967CCOMPUTER, LIGHT CONTROL LED, RH

main85967-52090iMXPC10..N202207-202405

85967DCOMPUTER, LIGHT CONTROL LED, LH

main85967-52090iMXPC10..N202207-202405

9007502051

main90075-02051

9007502052

main90075-02052

9007502060

main90075-02060

9010506298

main90105-06298

9015960621

main90159-60621

9018906238

main90189-06238

23 parts on this diagram · 2 diagrams in section
