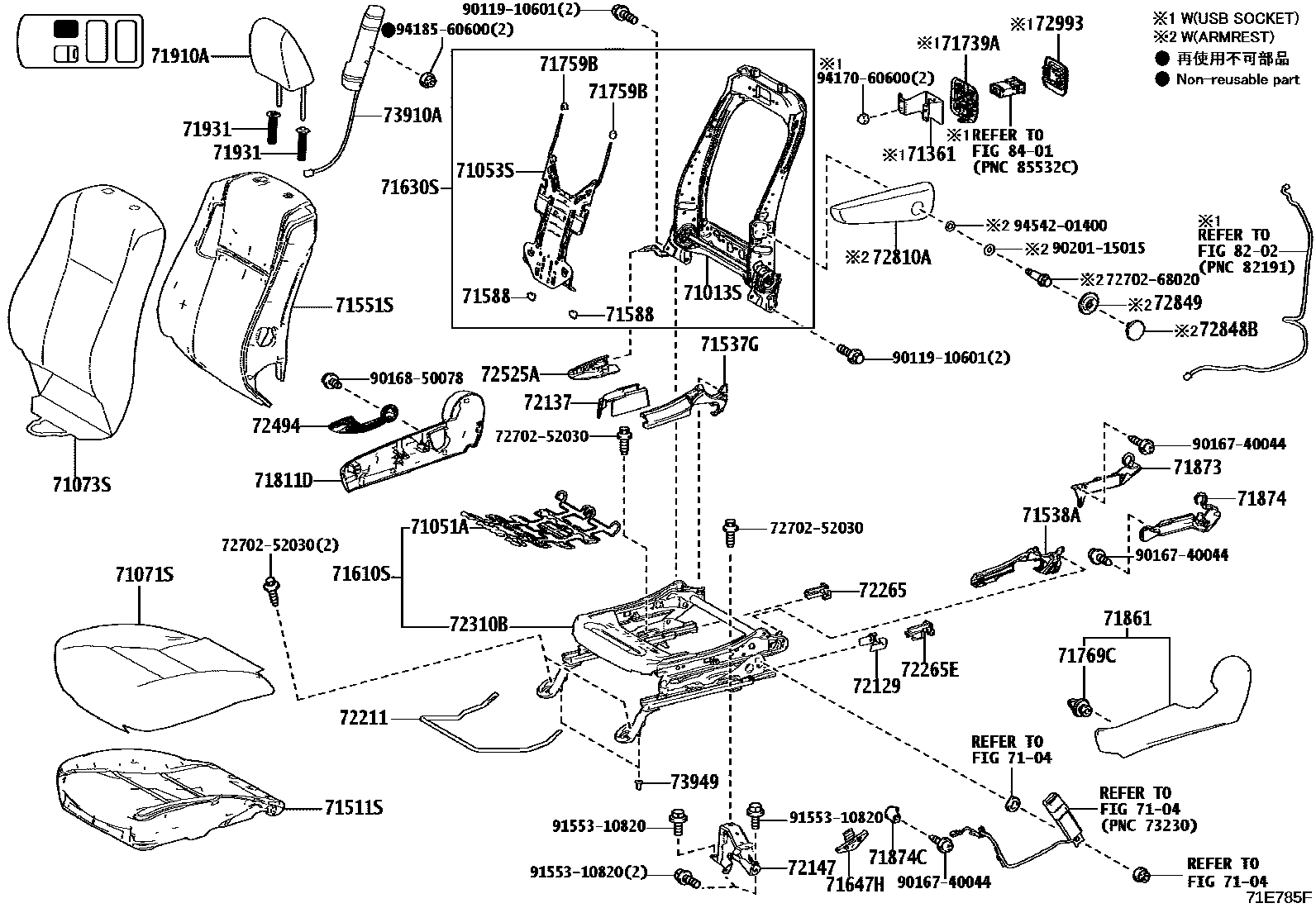

FRONT SEAT & SEAT TRACK

0001 1RH SEAT 0002 1LH SEAT

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-52650iMXPL10..N202207

main71013-52660iMXPC10,MXPL10..U202207

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47060iMXPC10..N202207-202405

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-47050iMXPC10..N202207-202405

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-5CK80-B0iMXPC10..N202207-202405

DK.GRAY,TRIM2#

main71071-5CL20-B1iMXPC10,MXPL10..U202207

DK.GRAY,TRIM2#

main71071-5CL20-E1iMXPC10,MXPL10..U202207

KHAKI,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-5CN00-C0iMXPC10,MXPL10..N202207-202308

BLACK,TRIM2#

main71073-5CN01-C0iMXPC10,MXPL10..N202309-202311

BLACK,TRIM2#

main71073-5CN02iMXPC10..N202312-202405

main71073-5CN02-C0iMXPL10..N202312

BLACK,TRIM2#

main71073-5CX20-C1iMXPC10,MXPL10..U202207-202308

BLACK,TRIM2#

main71073-5CX20-E1iMXPC10,MXPL10..U202207-202308

KHAKI,TRIM4#

main71073-5CX21-C1iMXPC10,MXPL10..U202309-202311

BLACK,TRIM2#

main71073-5CX21-E1iMXPC10,MXPL10..U202309-202311

KHAKI,TRIM4#

main71073-5CX22-C1iMXPC10,MXPL10..U202312

BLACK,TRIM2#

main71073-5CX22-E1iMXPC10,MXPL10..U202312

KHAKI,TRIM4#

71361BRACKET, FRONT SEAT SET, NO.1

main71361-52010iMXPC10,MXPL10..U202207

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-52A40iMXPC10..N202207-202405

71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-52150-C1iMXPC10..N202207-202405

BLACK,TRIM2#

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-52090-C1iMXPC10,MXPL10..U; MXPL10..N202207

BLACK,TRIM2#; BLACK,TRIM2#,4#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-52G20iMXPC10..N202207-202405

main71551-52G40iMXPC10,MXPL10..U202207

71588PROTECTOR, FRONT SEATBACK EDGE, NO.2

main71587-47010×4iMXPC10..N202207-202405

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-52390iMXPC10..N202207-202405

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-52A00iMXPC10,MXPL10..U202207

main71630-52A10iMXPC10..N202207-202405

71647HPROTECTOR, FRONT SEAT CUSHION EDGE

main71537-52180iMXPC10..N202207-202405

71739ABEZEL, FRONT SEATBACK

main71739-52040-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

71759BHOOK, FRONT SEATBACK

main71759-50040×4iMXPC10..N202207-202405

71769CCLIP, FRONT SEAT CUSHION COVER

main71769-47020×2iMXPC10..N202207-202405

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-52450-C1iMXPC10..N202207-202405

BLACK,TRIM2#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-52330-C1iMXPC10,MXPL10..U; MXPL10..N202207

BLACK,TRIM2#; BLACK,TRIM2#,4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47040iMXPC10..N202207-202405

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47040iMXPC10..N202207-202405

71874CSHIELD, FRONT SEAT CUSHION, LOWER

main71873-68020iMXPC10..N202207-202405

71910AHEADREST ASSY, FRONT SEAT

main71910-52R00-C0×2iMXPC10..N202207-202405

BLACK,TRIM2#

main71910-52R20-B0×2iMXPC10,MXPL10..U202207

DK.GRAY,TRIM2#

main71910-52R20-E0×2iMXPC10,MXPL10..U202207

KHAKI,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5×2iMXPC10,MXPL10..U; MXPL10..N202207

W(LOCK),BLACK,TRIM2#; W(LOCK),BLACK,TRIM2#,4#

main71931-47030-C4×2iMXPC10,MXPL10..U; MXPL10..N202207

W/O(LOCK),BLACK,TRIM2#; W/O(LOCK),BLACK,TRIM2#,4#

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-52180iMXPC10..N202207-202405

72137COVER, SEAT TRACK, OUTER RH

main72137-52180-C0iMXPC10..N202207-202405

BLACK,TRIM2#

72147BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

main72147-52200iMXPC10..N202207-202405

72211HANDLE, SEAT TRACK ADJUSTING

main72211-52260×2iMXPL10;MXPC10..U202207

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-52040iMXPL10;MXPC10..U202207

72265ECOVER, SEAT TRACK UPPER RAIL, RH

main72265-52040iMXPC10..N202207-202405

72310BADJUSTER ASSY, FRONT SEAT VERTICAL, RH

main72310-52010iMXPC10..N202207-202405

main72310-52011iMXPL10;MXPC10..U202408

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-68011-C1iMXPC10..N202207-202405

BLACK,TRIM2#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-C1iMXPC10,MXPL10..U; MXPL10..N202207

BLACK,TRIM2#; BLACK,TRIM2#,4#

72810AARMREST ASSY, SEAT, RH

main72810-52250-B0iMXPC10,MXPL10..U202207

DK.GRAY,TRIM2#

main72810-52250-E0iMXPC10,MXPL10..U202207

KHAKI,TRIM4#

72848BCAP, SEAT ARMREST, NO.1

main72848-52030-C0iMXPC10,MXPL10..U202207-202408

BLACK,TRIM2#,4#

main72848-52031-C0iMXPC10,MXPL10..U202409

BLACK,TRIM2#,4#

72849CAP, SEAT ARMREST, NO.2

main72849-52020-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

72993COVER, FRONT SEATBACK

main79157-52020iMXPC10,MXPL10..U202207

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-52220iMXPC10..N202207-202405

73949CAP

main71848-76010×4iMXPC10..N202207-202405

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

7270268020BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-68020

9011910601

main90119-10601

9016740044

main90167-40044

9016850078

main90168-50078

9020115015

main90201-15015

9155310820

main91553-10820

9417060600

main94170-60600

9418560600

main94185-60600

9454201400

main94542-01400

52 parts on this diagram · 2 diagrams in section
