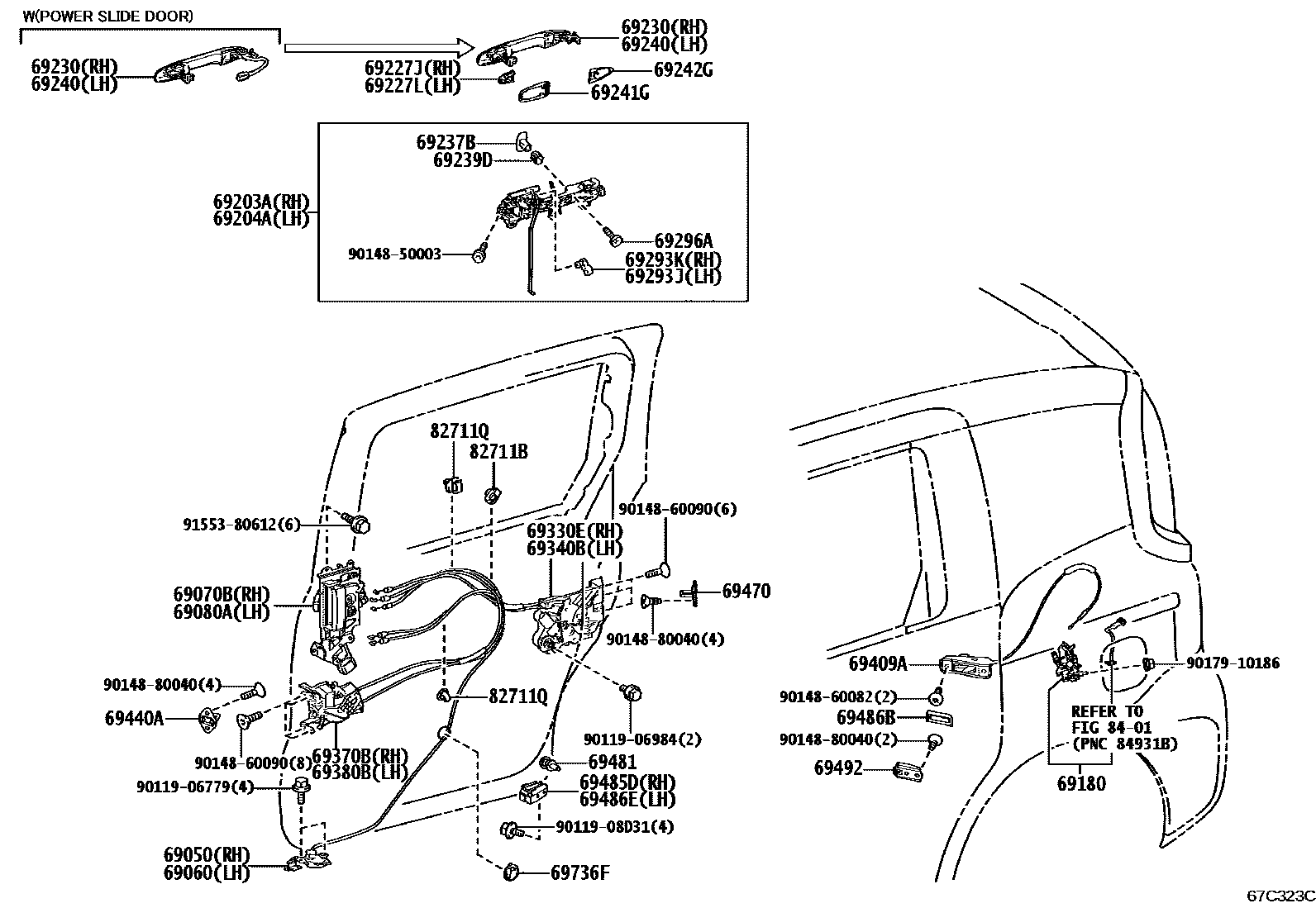

REAR DOOR LOCK & HANDLE

69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH

main69050-52310iMXPL10;MXPC10..U202207-202411

main69050-52311iMXPL10;MXPC10..U202412

69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH

main69060-52350iMXPL10;MXPC10..U202207-202411

main69060-52351iMXPL10;MXPC10..U202412

69070BHANDLE ASSY, SLIDE DOOR, INSIDE, W/CHILD LOCK LEVER, RH

main69070-28191-C0iMXPC10..N202207-202405

BLACK

main69070-28210-C0iMXPC10,MXPL10..U202207

BLACK

69080AHANDLE ASSY, SLIDE DOOR, INSIDE, W/CHILD LOCK LEVER, LH

main69080-28140-C0iMXPC10..N202207-202405

BLACK

69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER

main69180-52040iMXPC10..N202207-202405

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-52150iMXPC10..N202207-202405

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-52170iMXPC10..N202207-202405

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69217-V1010iMXPC10..N202207-202405

BLACK

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69217-V1010iMXPC10..N202207-202405

BLACK

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-28140-A0iMXPC10,MXPL10..U202207-202405

WHITE PEARL CS.,070 ,2WQ

main69210-28140-A2iMXPC10,MXPL10..U202405

PLATINUM WHITE PEARL MC.,089 ,2YP

main69210-28140-B2iMXPC10,MXPL10..U202207

DK.GRAY,1L7

main69210-28140-C3iMXPC10,MXPL10..U202207

BLACK,202

main69210-28140-D1iMXPC10,MXPL10..U202207

SCARLET ME.,2WR ,3U4

main69210-28140-E1iMXPC10,MXPL10..U202207

BEIGE,2WS ,4V6

main69210-28140-E2iMXPC10,MXPL10..U202207

CLEAR BEIGE ME.,2WT ,4Y3

main69210-28140-G0iMXPC10,MXPL10..U202207

URBAN KHAKI,2WU ,6X3

main69210-28140-J0iMXPC10,MXPL10..U202207

GRAYISH BLUE,2WV ,8W2

main69210-28150-A0iMXPC10,MXPL10..N202207-202405

WHITE PEARL CS.,070

main69210-28150-A2iMXPL10..N202405

PLATINUM WHITE PEARL MC.,089

main69210-28150-B2iMXPC10..N202207-202405

DK.GRAY,1L7

main69210-28150-C3iMXPL10..N202207

BLACK,202

main69210-28150-D1iMXPL10..N202207

SCARLET ME.,3U4

main69210-28150-E1iMXPC10..N202207-202405

BEIGE,4V6

main69210-28150-E2iMXPC10..N202207-202405

CLEAR BEIGE ME.,4Y3

main69210-28150-G0iMXPL10..N202207

URBAN KHAKI,6X3

main69210-28150-J0iMXPL10..N202207

GRAYISH BLUE,8W2

69237BNUT, REAR DOOR HANDLE

main69237-62010×2iMXPC10..N202207-202405

69239DBUSH, REAR DOOR HANDLE

main69239-47010×2iMXPC10..N202207-202405

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-28140-A0iMXPC10,MXPL10..N; MXPC10,MXPL10..U202207-202405

WHITE PEARL CS.,070; WHITE PEARL CS.,070 ,2WQ

main69210-28140-A2iMXPC10,MXPL10..U; MXPL10..N202405

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2YP

main69210-28140-B2iMXPC10..N202207-202405

DK.GRAY,1L7

main69210-28140-C3iMXPC10..N202207-202405

BLACK,202

main69210-28140-D1iMXPC10,MXPL10..U; MXPL10..N202207

SCARLET ME.,2WR ,3U4; SCARLET ME.,3U4

main69210-28140-E1iMXPC10,MXPL10..U; MXPL10..N202207

BEIGE,2WS ,4V6; BEIGE,4V6

main69210-28140-E2iMXPC10..N202207-202405

CLEAR BEIGE ME.,4Y3

main69210-28140-G0iMXPC10,MXPL10..U; MXPL10..N202207

URBAN KHAKI,2WU ,6X3; URBAN KHAKI,6X3

main69210-28140-J0iMXPC10,MXPL10..U; MXPL10..N202207

GRAYISH BLUE,2WV ,8W2; GRAYISH BLUE,8W2

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69242-47030×2iMXPC10..N202207-202405

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-47020×2iMXPC10..N202207-202405

69293JSNAP, REAR DOOR OUTSIDE HANDLE, LH

main69293-28040iMXPC10..N202207-202405

69293KSNAP, REAR DOOR OUTSIDE HANDLE, RH

main69293-28030iMXPC10..N202207-202405

69296ASCREW, DOOR INSIDE HANDLE

main90148-50006×2iMXPL10;MXPC10..U202207

69330ELOCK ASSY, SLIDE DOOR, RH

main69200-52020iMXPC10,MXPL10..N202207-202307

main69200-52021iMXPC10..N202308-202405

main69200-52022iMXPL10..N202407

main69200-52050iMXPC10,MXPL10..U202207-202307

main69200-52051iMXPC10,MXPL10..U202308-202406

main69200-52052iMXPC10,MXPL10..U202407

69340BLOCK ASSY, SLIDE DOOR, LH

main69300-52070iMXPC10,MXPL10202207-202307

main69300-52071iMXPC10..N202308-202405

main69300-52072iMXPL10;MXPC10..U202407

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-52060iMXPC10..N202207-202405

main69370-52061iMXPL10;MXPC10..U202407

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-52110iMXPC10..N202207-202405

main69380-52111iMXPL10;MXPC10..U202407

69409ASTOPPER SUB-ASSY, SLIDE DOOR HALF OPEN

main69409-52040iMXPC10..N202207-202405

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-52010×2iMXPC10..N202207-202405

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28120×2iMXPC10..N202207-202405

69481LATCH, SLIDE DOOR OPEN

main69481-52030×2iMXPC10..N202207-202405

69485DSTRIKER, SLIDE DOOR OPEN, RH

main69485-52041iMXPL10;MXPC10..U202207

69486BCOVER, SLIDE DOOR HALF OPEN STOPPER

main69486-46010iMXPC10..N202207-202405

69486ESTRIKER, SLIDE DOOR OPEN, LH

main69486-52061iMXPC10..N202207-202405

69492STOPPER, SLIDE DOOR HALF OPEN

main69492-52020iMXPL10;MXPC10..U202207

69736FGUIDE, SLIDE DOOR LOCKING LINK

main69736-52010×2iMXPL10;MXPC10..U202207

82711BCLAMP, WIRING HARNESS

main82711-1E340×2iMXPL10;MXPC10..U202207

82711QCLAMP, WIRING HARNESS

main69749-52030×4iMXPL10;MXPC10..U202408

main82711-1E300×4iMXPC10..N202207-202405

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906779

main90119-06779

9011906984

main90119-06984

9011908D31

main90119-08D31

9014850003

main90148-50003

9014860082

main90148-60082

9014860090

main90148-60090

9014880040

main90148-80040

9017910186

main90179-10186

9155380612

main91553-80612

43 parts on this diagram · 1 diagram in section
