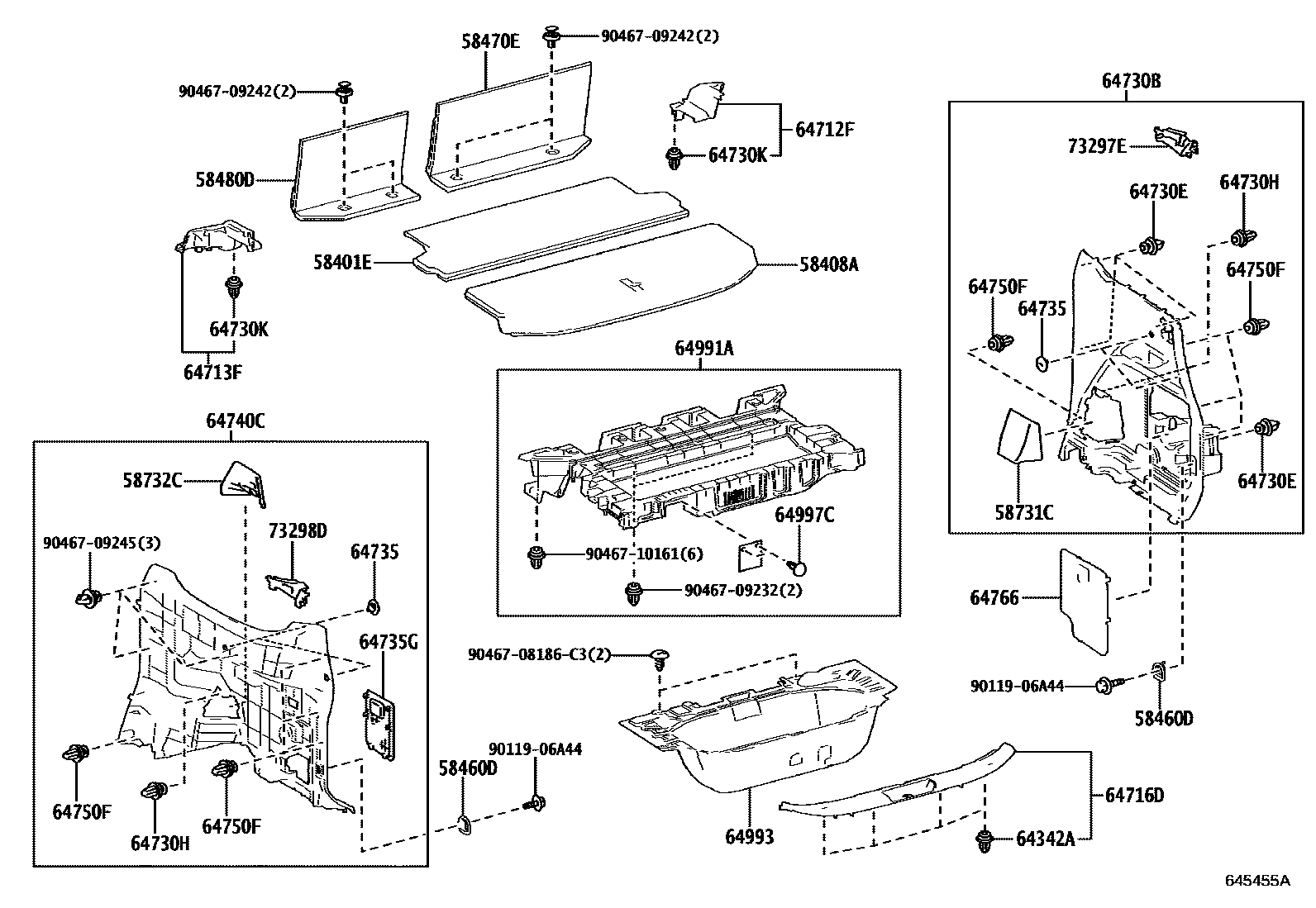

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58401EBOARD SUB-ASSY, DECK

main58401-52090-B0iMXPC10,MXPL10..U; MXPL10..N202207

DARK GRAY,TRIM2#; DARK GRAY,TRIM2#,4#

main58401-52100-B0iMXPC10..05S202207-202405

DARK GRAY,TRIM2#

58408ABOARD SUB-ASSY, DECK, NO.2

main58408-52070-B0iMXPC10,MXPL10..U; MXPL10..N202207

DARK GRAY,TRIM2#; DARK GRAY,TRIM2#,4#

main58408-52120-B0iMXPC10..05S202207-202405

DARK GRAY,TRIM2#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020×2iMXPL10;MXPC10..U202207

58470EBOARD ASSY, REAR FLOOR, NO.1

main58470-52070-B0iMXPC10..05S202207-202405

DARK GRAY,TRIM2#

58480DBOARD ASSY, REAR FLOOR, NO.2

main58480-52030-B0iMXPC10..05S202207-202405

DARK GRAY,TRIM2#

58731CCAP, REAR ABSORBER

main58731-52100-C0iMXPC10..N202207-202405

BLACK,TRIM2#

58732CCAP, REAR ABSORBER

main58732-52080-C0iMXPC10,MXPL10..U; MXPL10..N202207

BLACK,TRIM2#; BLACK,TRIM2#,4#

64342ACLIP

main90467-10161×4iMXPC10..N202207-202405

64712FCOVER, DECK SIDE TRIM, FRONT RH

main64712-52060-C0iMXPC10,MXPL10..U; MXPL10..N202207

BLACK,TRIM2#; BLACK,TRIM2#,4#

main64712-52080-C0iMXPC10..05S202207-202405

BLACK,TRIM2#

64713FCOVER, DECK SIDE TRIM, FRONT LH

main64713-52140-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

main64713-52160-C0iMXPC10..05S202207-202405

BLACK,TRIM2#

64716DCOVER, DECK TRIM, REAR

main64716-52250-C0iMXPC10,MXPL10..U; MXPL10..N202207

BLACK,TRIM2#; BLACK,TRIM2#,4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52680-C0iMXPC10,MXPL10..U; MXPL10..N202207

BLACK,TRIM2#; BLACK,TRIM2#,4#

main64730-52790-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

main64730-52810-C1iMXPC10..05S202207-202405

BLACK,TRIM2#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-09245×4iMXPC10..N202207-202405

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-09232×2iMXPC10..N202207-202405

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-09206×2iMXPC10..N202207-202405

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-52020-C1×4iMXPC10..N202207-202405

BLACK,TRIM2#

64735GCOVER, DECK TRIM SIDE SERVICE HOLE, LH

main64722-52040-C0iMXPC10,MXPL10..U; MXPL10..N202207

BLACK,TRIM2#; BLACK,TRIM2#,4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52760-C0iMXPC10,MXPL10..U; MXPL10..N202207

BLACK,TRIM2#; BLACK,TRIM2#,4#

main64740-52A10-C0iMXPC10..07S..N202207-202405

BLACK,TRIM2#

main64740-52A30-C1iMXPC10..05S202207-202405

BLACK,TRIM2#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161×8iMXPC10..N202207-202405

64766COVER SUB-ASSY, QUARTER TRIM JACK

main64766-52070-C0iMXPC10,MXPL10..U; MXPL10..N202207

BLACK,TRIM2#; BLACK,TRIM2#,4#

64991ABOX, DECK FLOOR, FR

main64991-52060-C0iMXPC10..05S202207-202405

BLACK,TRIM2#

64993BOX, DECK FLOOR, REAR

main64993-52270iMXPC10..N202207-202405

64997CCLIP(FOR DECK FLOOR BOX)

main90467-05162-C1×2iMXPC10..05S202207-202405

BLACK,TRIM2#

73297ECOVER, DECK TRIM SIDE BELT HOLE, RH

main73297-52010-B0iMXPC10..05S202207-202405

LT.GRAY,TRIM2#

73298DCOVER,DECK TRIM SIDE BELT HOLE, LH

main73298-52010-B0iMXPC10..05S202207-202405

LT.GRAY,TRIM2#

9011906A44

main90119-06A44

9046708186C3

main90467-08186C3

9046709232

main90467-09232

9046709242

main90467-09242

9046709245

main90467-09245

9046710161

main90467-10161

31 parts on this diagram · 2 diagrams in section
