INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62053ARETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR RH

main67867-48030iMXPC10..N202207-202405

62054ARETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR LH

main67867-48030iMXPC10..N202207-202405

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iMXPL10;MXPC10..U202207-202405

62111CBOARD, COWL SIDE TRIM, RH

main62111-52280-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

main62111-52280-C0iMXPC10,MXPL10..U202207-202405

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-52500-C0iMXPC10,MXPL10..U202207-202405

BLACK,TRIM2#

main62112-52500-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-06147iMXPC10..N202207-202405

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-52220iMXPC10..N202207-202405

62170BBOLT, W/WASHER

main91673-80616iMXPC10..N202207-202405

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-52220iMXPC10..N202207-202405

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iMXPC10..N202207-202405

62211GARNISH, FRONT PILLAR, RH

main62210-52010-B0iMXPC10..N202207-202405

LT.GRAY,TRIM2#

main62210-52010-B0iMXPC10,MXPL10..U202207

LT.GRAY,TRIM2#,4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161iMXPC10..N202207-202405

62212GARNISH, FRONT PILLAR, LH

main62220-52010-B0iMXPL10..N202207-202405

LT.GRAY,TRIM2#

main62220-52010-B0iMXPC10,MXPL10..U202207

LT.GRAY,TRIM2#,4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050iMXPC10..N202207-202405

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-52280iMXPC10,MXPL10202207-202308

sub62311-52281

main62311-52281iMXPC10..N202309-202405

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-52240iMXPC10..N202207-202405

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-52150iMXPC10,MXPL10202207-202402

sub62331-52151

main62331-52151iMXPC10..N202403-202405

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-52170iMXPC10,MXPL10202207-202402

sub62332-52171

main62332-52171iMXPC10..N202403-202405

62370RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, RH

main67867-12150iMXPC10..N202207-202405

62380RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, LH

main67867-12150iMXPC10..N202207-202405

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-52060iMXPC10..N202207-202405

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-52060iMXPC10..N202207-202405

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167iMXPC10..N202207-202405

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-52020-B0iMXPC10..N202207-202405

LT.GRAY,TRIM2#

main62410-52020-B0iMXPC10,MXPL10..U202207

LT.GRAY,TRIM2#,4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-52020-B0iMXPC10..N202207-202405

LT.GRAY,TRIM2#

main62420-52020-B0iMXPC10,MXPL10..U202207

LT.GRAY,TRIM2#,4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-52210-C0iMXPC10..N202207-202405

BLACK,TRIM2#

main62413-52210-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iMXPC10..N202207-202405

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-52220-C0iMXPL10..N202207

BLACK,TRIM2#,4#

main62414-52220-C0iMXPC10..N202207-202405

BLACK,TRIM2#

62430ACLIP, ROOF SIDE RAIL GARNISH

main90467-09245iMXPL10;MXPC10..U202207-202405

62451CGARNISH, ROOF SIDE RAIL, REAR RH

main62451-52050-B0iMXPC10,MXPL10..U202207-202405

LT.GRAY,TRIM2#

main62451-52050-B0iMXPL10..N202207

LT.GRAY,TRIM2#,4#

62452CGARNISH, ROOF SIDE RAIL, REAR LH

main62452-52060-B0iMXPC10..N202207-202405

LT.GRAY,TRIM2#

main62452-52060-B0iMXPC10,MXPL10..U202207

LT.GRAY,TRIM2#,4#

62457COVER, ROOF SIDE RAIL GARNISH

main62457-52020-B0iMXPC10..05S202207-202405

LT.GRAY,TRIM2#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-52110-B0iMXPC10,MXPL10..U202207

LT.GRAY,TRIM2#,4#

main62470-52110-B0iMXPC10..07S..N202207-202405

LT.GRAY,TRIM2#

main62470-52120-B0iMXPC10..05S202207-202405

LT.GRAY,TRIM2#

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-52140-B0iMXPC10..07S..N202207-202405

LT.GRAY,TRIM2#

main62480-52140-B0iMXPC10,MXPL10..U202207

LT.GRAY,TRIM2#,4#

main62480-52150-B0iMXPC10..05S202207-202405

LT.GRAY,TRIM2#

62485ARETAINER, ROOF SIDE INNER GARNISH

main67771-28150iMXPL10;MXPC10..U202207-202405

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010iMXPC10..N202207-202405

62566ACOVER, REAR PILLAR, RH

main62566-52050-B0iMXPC10,MXPL10..U202207-202405

LT.GRAY,TRIM2#

main62566-52050-B0iMXPC10,MXPL10..U202207

LT.GRAY,TRIM2#,4#

62567BCOVER, REAR PILLAR, LH

main62567-52040-B0iMXPC10..N202207-202405

LT.GRAY,TRIM2#

main62567-52040-B0iMXPC10,MXPL10..U202207

LT.GRAY,TRIM2#,4#

62597DCLIP

main90467-18017iMXPC10..N202207-202405

62638BCLIP

main90467-06084iMXPC10..N202207-202405

67913PLATE, FRONT DOOR SCUFF, RH

main67913-52250-C0iMXPC10..N202207-202405

BLACK,TRIM2#

main67913-52250-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-52350-C0iMXPC10..N202207-202405

BLACK,TRIM2#

main67914-52350-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-52270-C0iMXPC10..N202207-202405

BLACK,TRIM2#

main67917-52270-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-52280-C0iMXPC10..N202207-202405

BLACK,TRIM2#

main67918-52280-C0iMXPC10,MXPL10..U202207

BLACK,TRIM2#,4#

7403

9046710216

main90467-10216

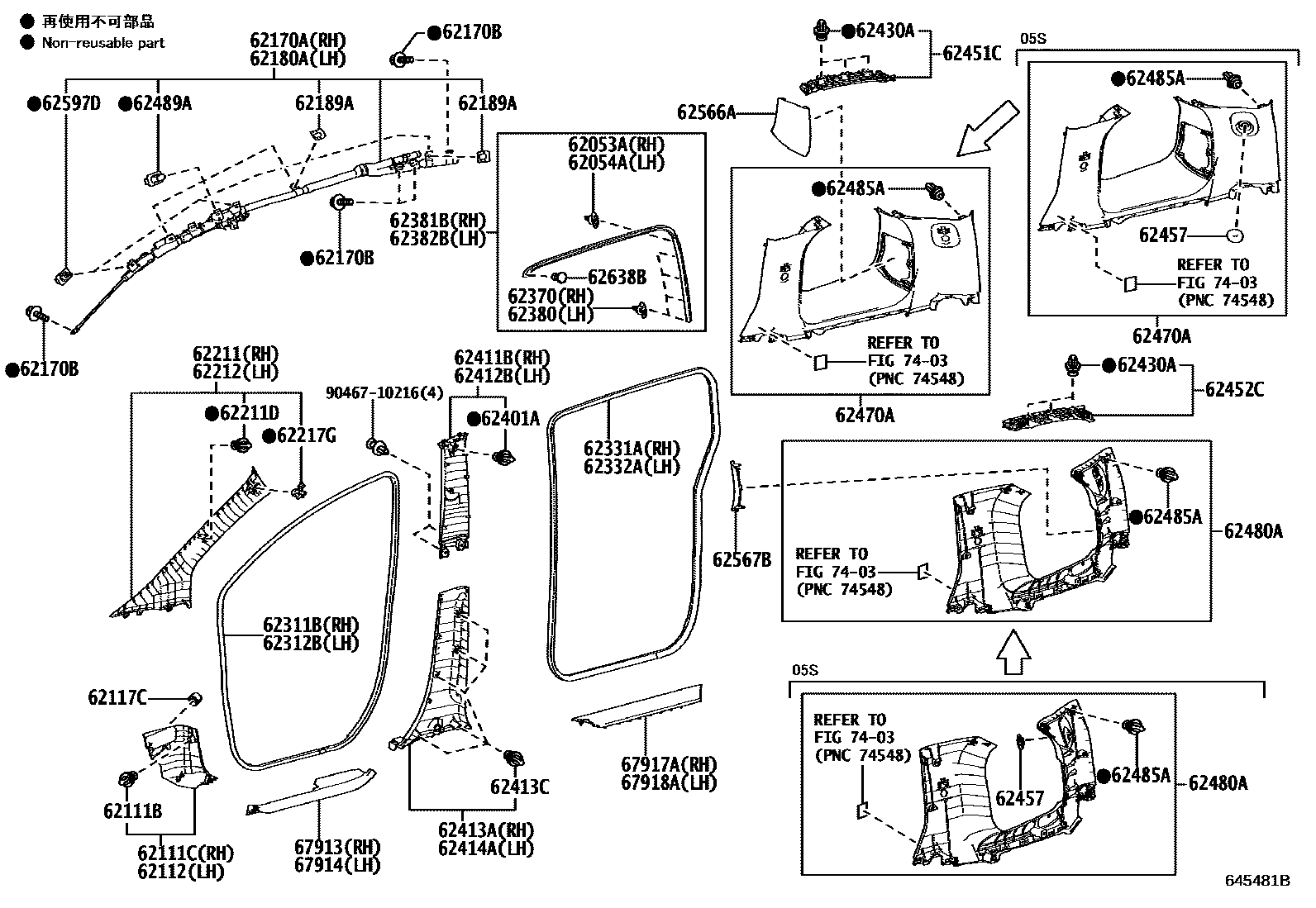

46 parts on this diagram · 1 diagram in section
