FRONT FENDER APRON & DASH PANEL

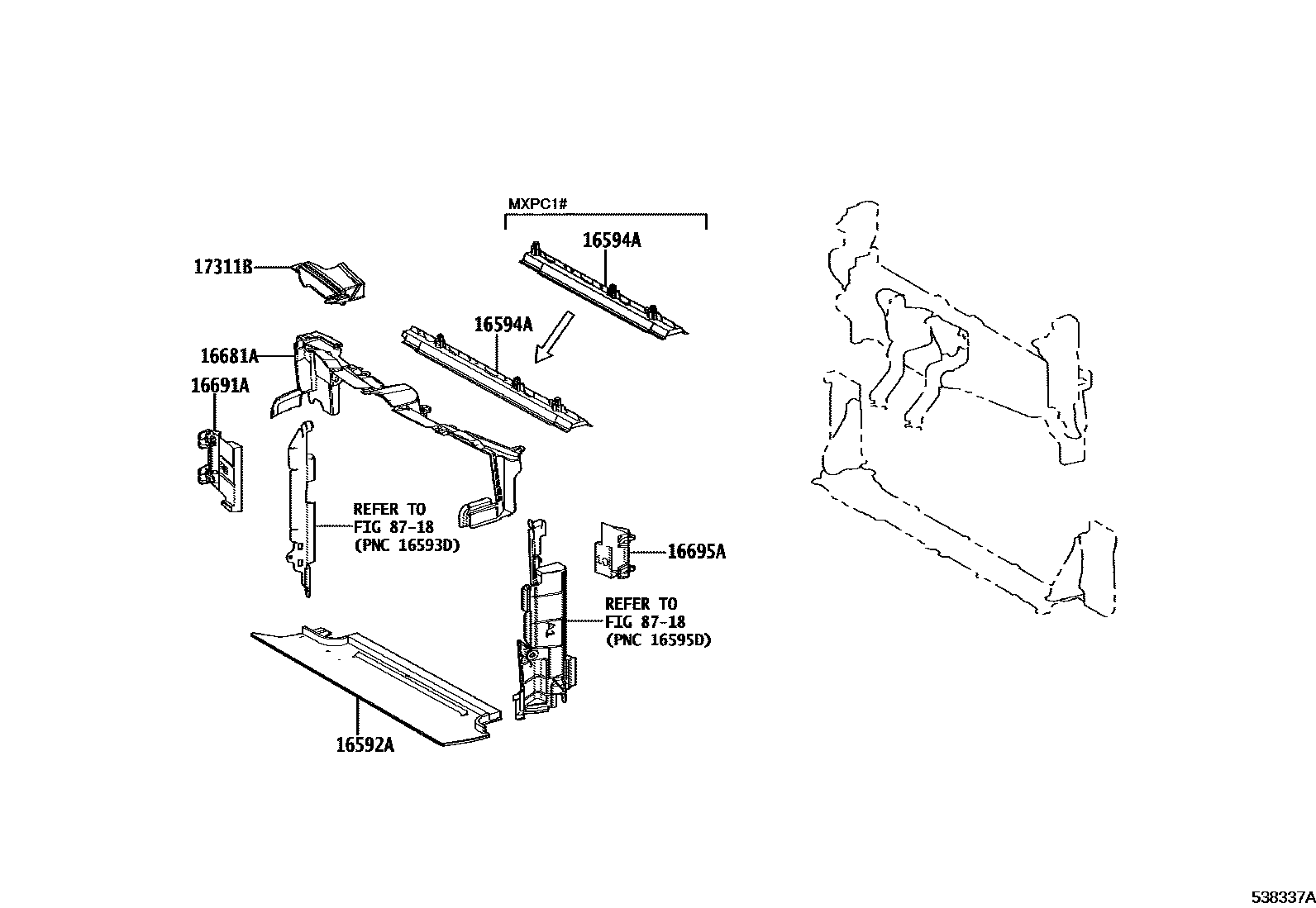

Parts diagram

16592AGUIDE, RADIATOR AIR, NO.3

main16592-15020i202207-202405

16594AGUIDE, RADIATOR AIR, NO.2

main16594-15010i202207-202405

main16594-15020i202207

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-15040i202207-202405

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-15010i202207-202405

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-15010i202207-202405

17311BDUCT, AIR INLET, NO.1

main17311-15030i202207-202405

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

7 parts on this diagram · 3 diagrams in section
