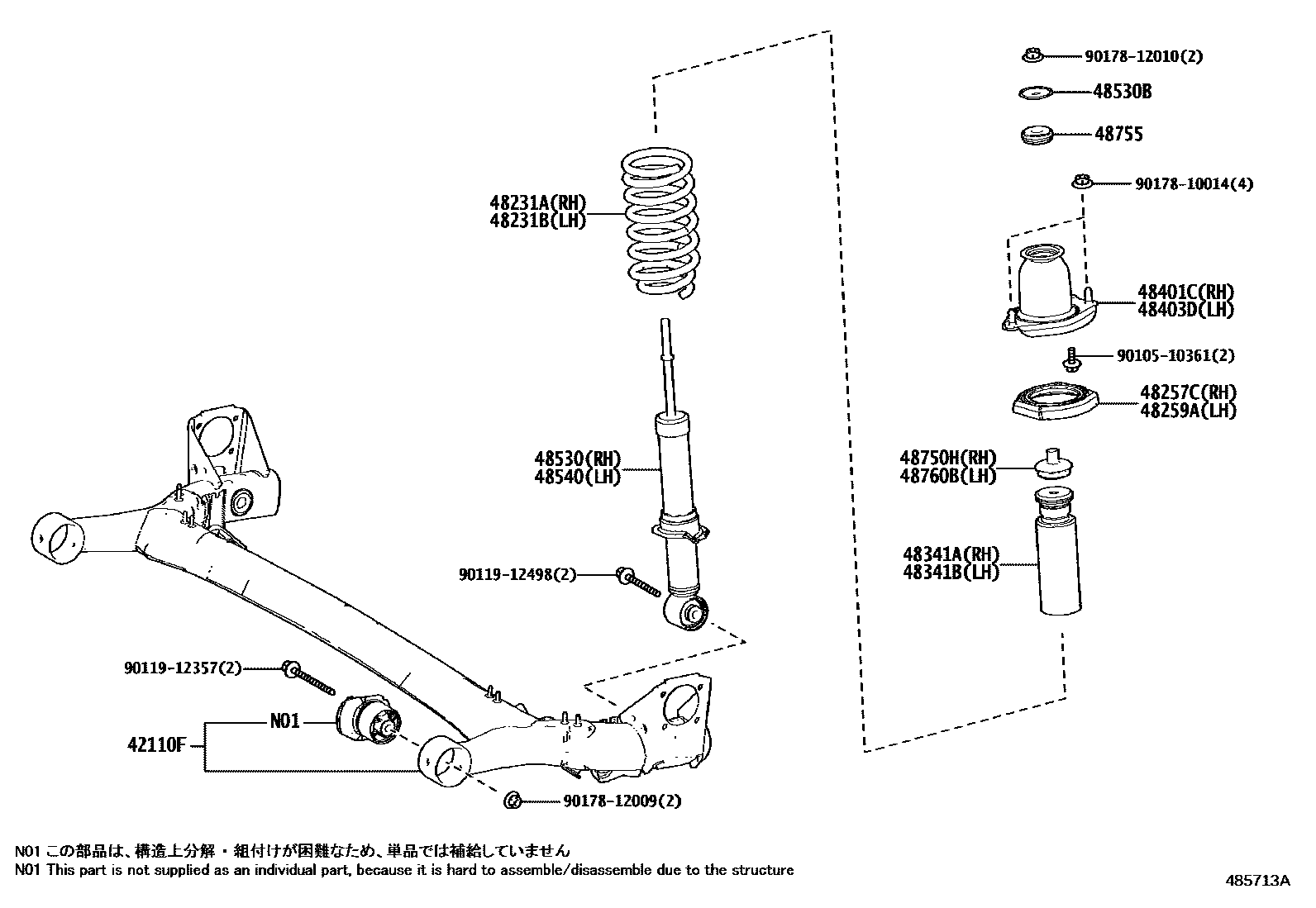

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48401CBRACKET SUB-ASSY, REAR SPRING, RH
48403DBRACKET SUB-ASSY, REAR SPRING, LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-52Q80
MARK 48530-52Q90
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-52Q80
MARK 48530-52Q90
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
9010510361
main90105-10361
9011912357
main90119-12357
9011912498
main90119-12498
9017810014
main90178-10014
9017812009
main90178-12009
9017812010
main90178-12010
21 parts on this diagram · 1 diagram in section
