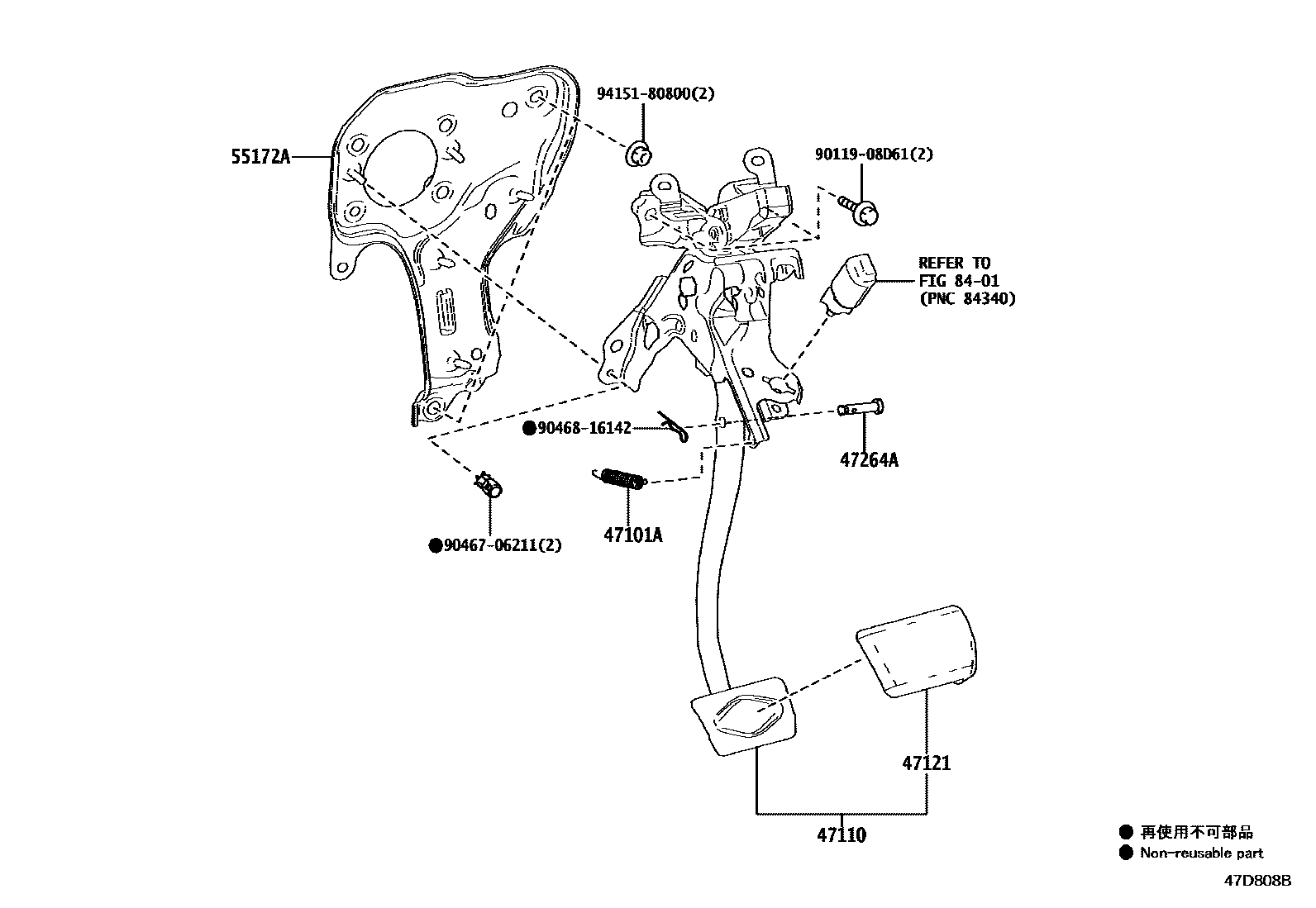

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-17003iMXPC10..N202207-202405

47110SUPPORT ASSY, BRAKE PEDAL

main47110-52530iMXPC10..N202207-202405

main47110-52540iMXPL10202207-202508

47121PAD, BRAKE PEDAL

main47121-47010iMXPC10..N202207-202405

47264APIN(FOR PUSH ROD)

main90249-08256iMXPC10..N202207-202405

55172ABASE, BRAKE PEDAL SUPPORT

main55172-52060iMXPC10..N202207-202405

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908D61

main90119-08D61

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
