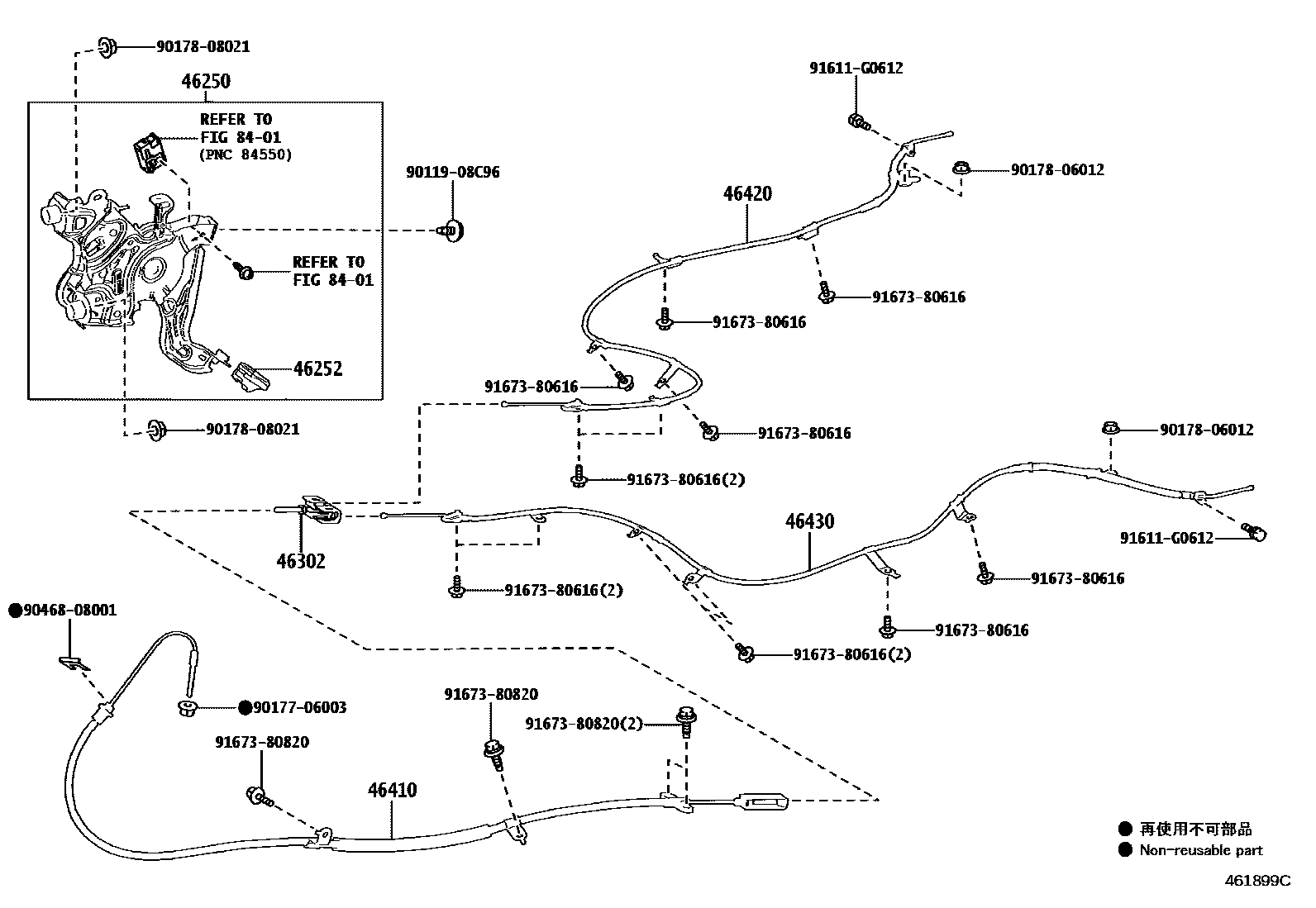

PARKING BRAKE & CABLE

0001 1 0002 1

46250PEDAL ASSY, PARKING BRAKE W/O CABLE

main46250-33010iMXPC10..N202207-202405

46252PAD, PARKING PEDAL

main46252-47020iMXPC10..N202207-202405

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-52040iMXPC10..N202207-202405

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-52150iMXPC10..N202207-202405

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52550iMXPC10..N202207-202405

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52550iMXPC10..N202207-202405

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C96

main90119-08C96

9017706003

main90177-06003

9017806012

main90178-06012

9017808021

main90178-08021

9046808001

main90468-08001

91611G0612

main91611-G0612

9167380616

main91673-80616

9167380820

main91673-80820

15 parts on this diagram · 2 diagrams in section
