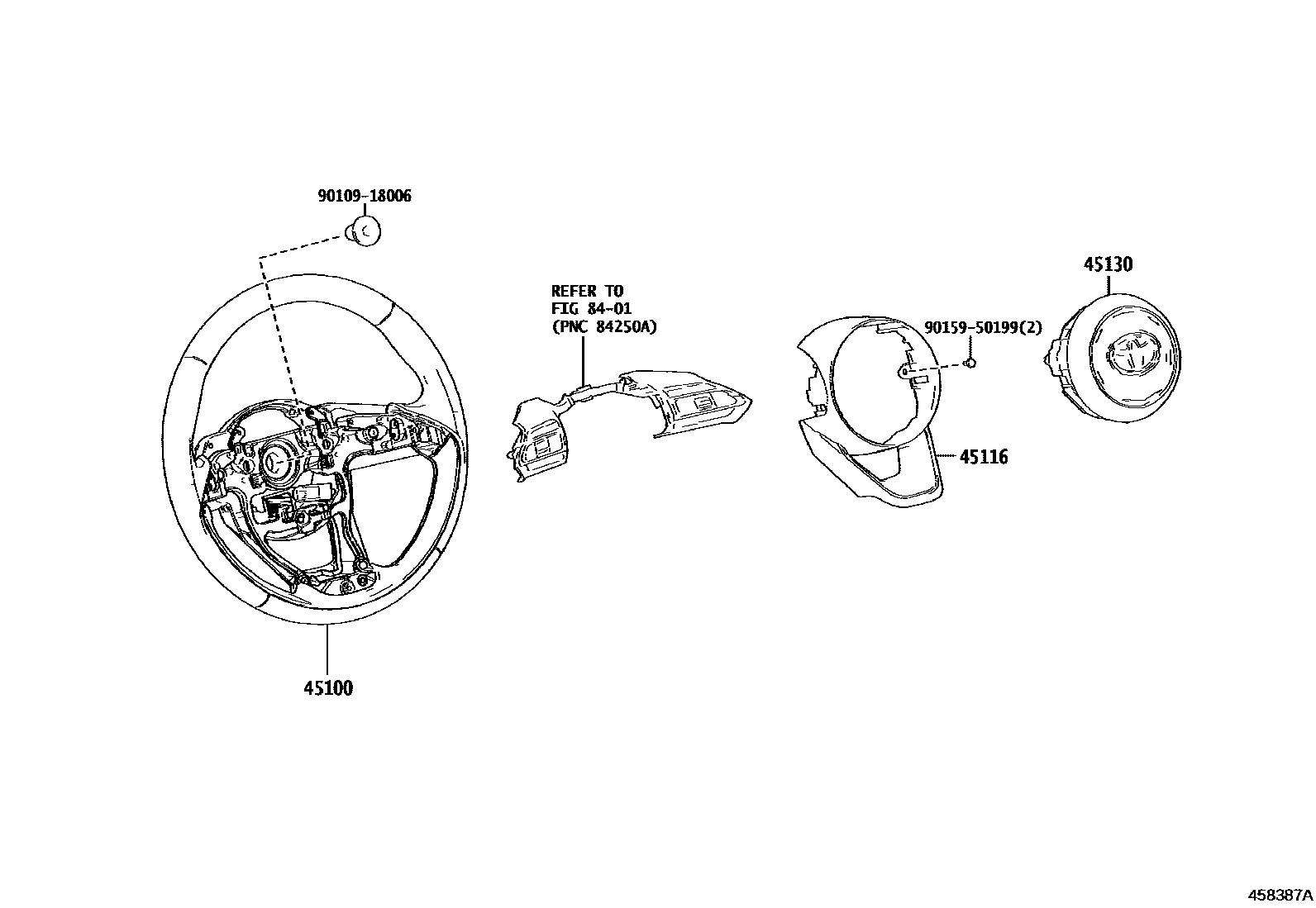

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-K0010-C0iMXPC10..N202207-202405

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-K0030-C1iMXPC10,MXPL10..U202207

3-SPOKE,LEATHER,BLACK,TRIM2#,4#

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-52200-C0iMXPC10..N202207-202405

BLACK,TRIM2#

main45116-K0020-C2iMXPC10,MXPL10..U202207

SILVER,TRIM2#,4#

45130BUTTON ASSY, HORN

main45130-52A00-C0iMXPC10..N202207-202405

BLACK,TRIM2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010918006

main90109-18006

9015950199

main90159-50199

6 parts on this diagram · 1 diagram in section
