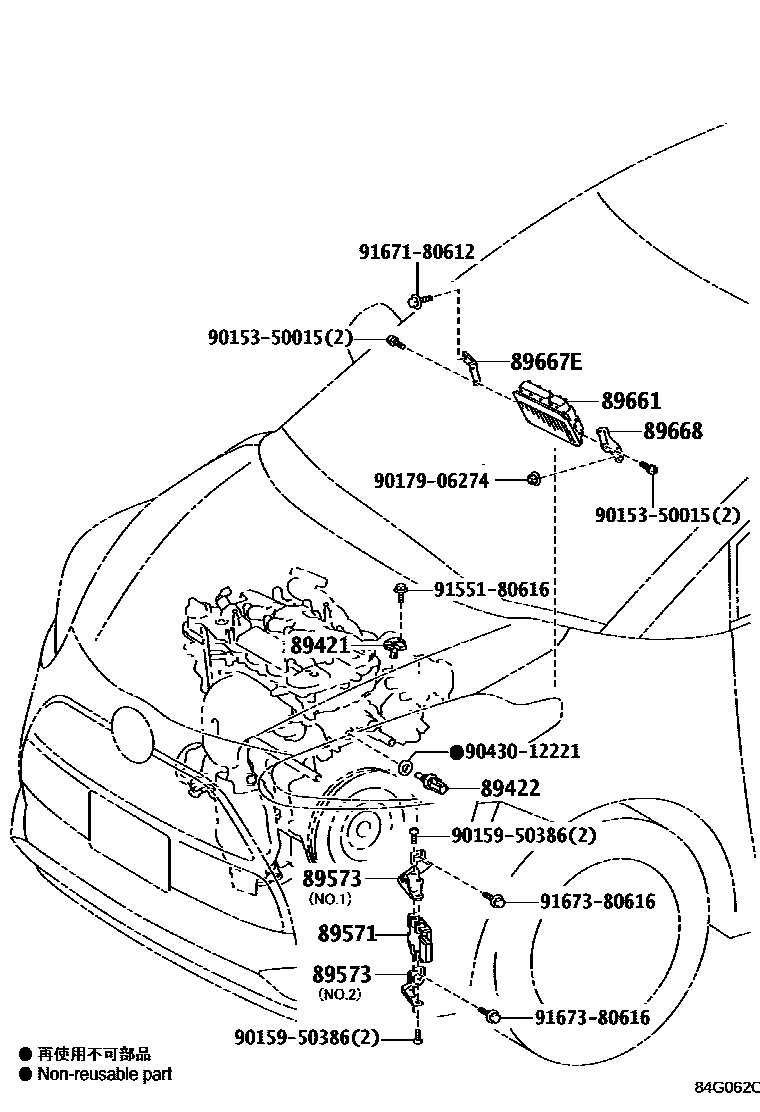

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iNHP170,NSP170201506-201809

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNHP170,NSP170201506-201809

89571COMPUTER, FUEL PUMP CONTROL

main89571-34070iNSP170201506-201809

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-52030iNSP170201809-202207

NO.1

main89573-52040iNSP170201506-201809

NO.2

89661COMPUTER, ENGINE CONTROL

main89661-5C550iNHP170201809-202207

DENSO TEN

main89661-5C580iNHP170201507-201809

main89661-5C590iNSP170201506-201809

main89661-5C890iNSP170201809-202006

DENSO TEN

main89661-5CD30iNSP170202006-202207

DENSO TEN

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52340iNHP170,NSP170201506-201809

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52350iNHP170,NSP170201506-201809

9015350015

main90153-50015

9015950386

main90159-50386

9017906274

main90179-06274

9043012221

main90430-12221

9155180616

main91551-80616

9167180612

main91671-80612

9167380616

main91673-80616

14 parts on this diagram · 2 diagrams in section
