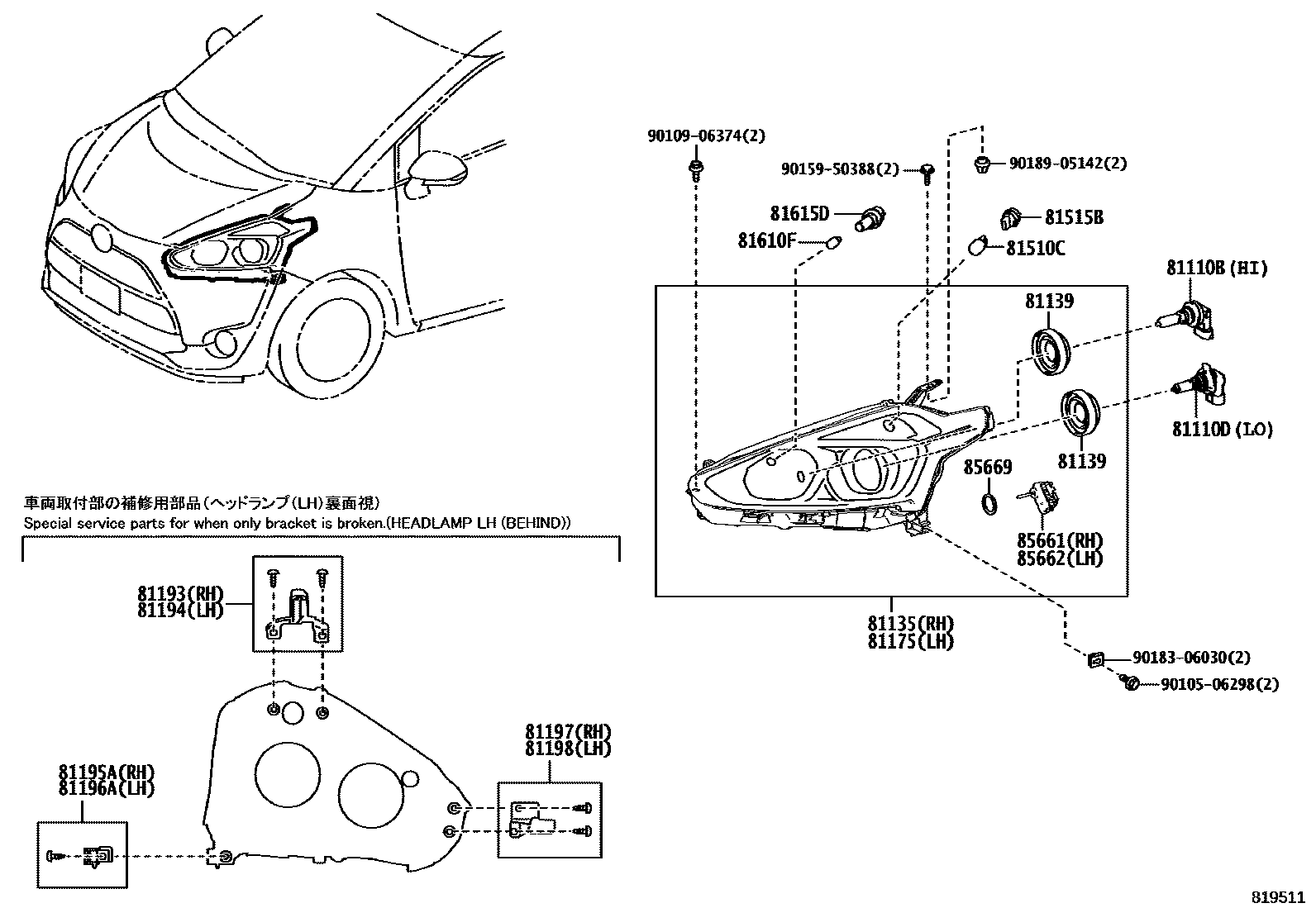

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1LED HEADLAMP 0003 1LED HEADLAMP(CLEARANCE LAMP =0004 1LED HEADLAMP(CLEARANCE LAMP =

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iNHP170,NSP170201506-201809

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075×2iNHP170,NSP170201506-201809

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-52K20iNHP170,NSP170201506-201809

main81130-52M90iNHP170,NSP170..N201809-202207

main81130-52K30iNHP170,NSP170..Q201506-201701

HEADLAMP-LED

main81130-52K31iNHP170,NSP170..Q201701-201809

HEADLAMP-LED

main81130-52N00iNHP170,NSP170..Q201809-202207

HEADLAMP-LED(*CL=LED)

81139COVER, HEADLAMP SOCKET

main90075-65006×4iNHP170,NSP170201506-201809

81175UNIT ASSY, HEADLAMP, LH

main81070-52N90iNHP170,NSP170..N; NHP170,NSP170..Q202006-202207

HEADLAMP-LED(*CL=BULB)

main81170-52K20iNHP170,NSP170201506-201809

main81170-52M90iNHP170,NSP170..N201809-202207

main81170-52K30iNHP170,NSP170..Q201506-201701

HEADLAMP-LED

main81170-52K31iNHP170,NSP170..Q201701-201809

HEADLAMP-LED

main81170-52N00iNHP170,NSP170..Q201809-202207

HEADLAMP-LED(*CL=LED)

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52270iNHP170,NSP170201506-201809

main81193-52280iNHP170,NSP170..Q201809-202207

HEADLAMP-LED(*CL=LED)

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52260iNHP170,NSP170201809-202207

main81194-52270iNHP170,NSP170..Q201809-202207

HEADLAMP-LED(*CL=LED)

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-52200iNHP170,NSP170201506-201809

main81195-52210iNHP170,NSP170..Q201506-201809

HEADLAMP-LED

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-52180iNHP170,NSP170201809-202207

main81196-52190iNHP170,NSP170..Q201506-201809

HEADLAMP-LED

81197BRACKET, HEADLAMP, LOWER RH

main81197-52080iNHP170,NSP170201506-201809

main81197-52090iNHP170,NSP170..Q201506-201809

HEADLAMP-LED

81198BRACKET, HEADLAMP, LWR LH

main81198-52080iNHP170,NSP170201506-201809

main81198-52090iNHP170,NSP170..Q201506-201809

HEADLAMP-LED

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iNHP170,NSP170201506-201809

12V 21W,AMBER

main90981-15011×2iNHP170,NSP170..Q201506-201809

12V 21W,AMBER,HEADLAMP-LED

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iNHP170,NSP170201809-202207

main81515-42050×2iNHP170,NSP170..Q201506-201809

HEADLAMP-LED

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNHP170,NSP170201809-202207

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60089×2iNHP170,NSP170201506-201809

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iNHP170,NSP170201506-201809

main85661-68011iNHP170,NSP170..Q201506-201809

HEADLAMP-LED

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iNHP170,NSP170201809-202207

main85661-68011iNHP170,NSP170..Q201506-201809

HEADLAMP-LED

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iNHP170,NSP170201506-201809

9010506298

main90105-06298

9010906374

main90109-06374

9015950388

main90159-50388

9018306030

main90183-06030

9018905142

main90189-05142

23 parts on this diagram · 4 diagrams in section
