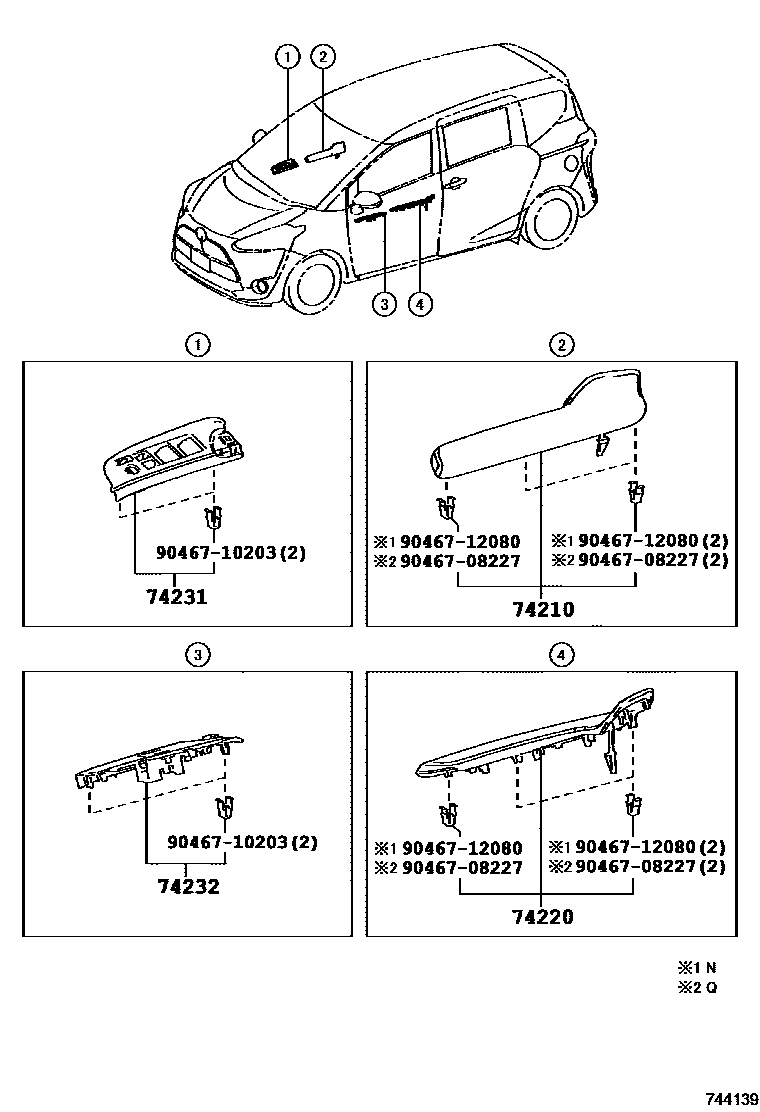

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-52030-B0iNHP170,NSP170..Q201809-202207

DK.GRAY,TRIM2#

main74210-52030-C1iNHP170,NSP170..Q201506-201809

BLUE BLACK,TRIM2#

main74210-52030-E0iNHP170,NSP170..Q201506-202207

DK.BROWN,TRIM0#

main74210-52040-A1iNHP170,NSP170..N201506-202207

FROMAGE,TRIM0#

main74210-52040-C1iNHP170,NSP170..N201506-202207

BLACK,TRIM2#

74220ARMREST ASSY, FRONT, LH

main74220-52020-B0iNHP170,NSP170..Q201809-202207

DK.GRAY,TRIM2#

main74220-52020-C1iNHP170,NSP170..Q201506-201809

BLUE BLACK,TRIM2#

main74220-52020-E0iNHP170,NSP170..Q201506-202207

DK.BROWN,TRIM0#

main74220-52030-A1iNHP170,NSP170..N201506-202207

FROMAGE,TRIM0#

main74220-52030-C1iNHP170,NSP170..N201506-202207

BLACK,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52A80-A0iNHP170,NSP170201506-202207

FROMAGE,TRIM0#

main74231-52A80-C0iNHP170,NSP170201506-202207

BLACK,TRIM2#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52660-A0iNHP170,NSP170201506-202207

FROMAGE,TRIM0#

main74232-52660-C0iNHP170,NSP170201506-202207

BLACK,TRIM2#

9046708227

main90467-08227

9046710203

main90467-10203

9046712080

main90467-12080

7 parts on this diagram · 2 diagrams in section
