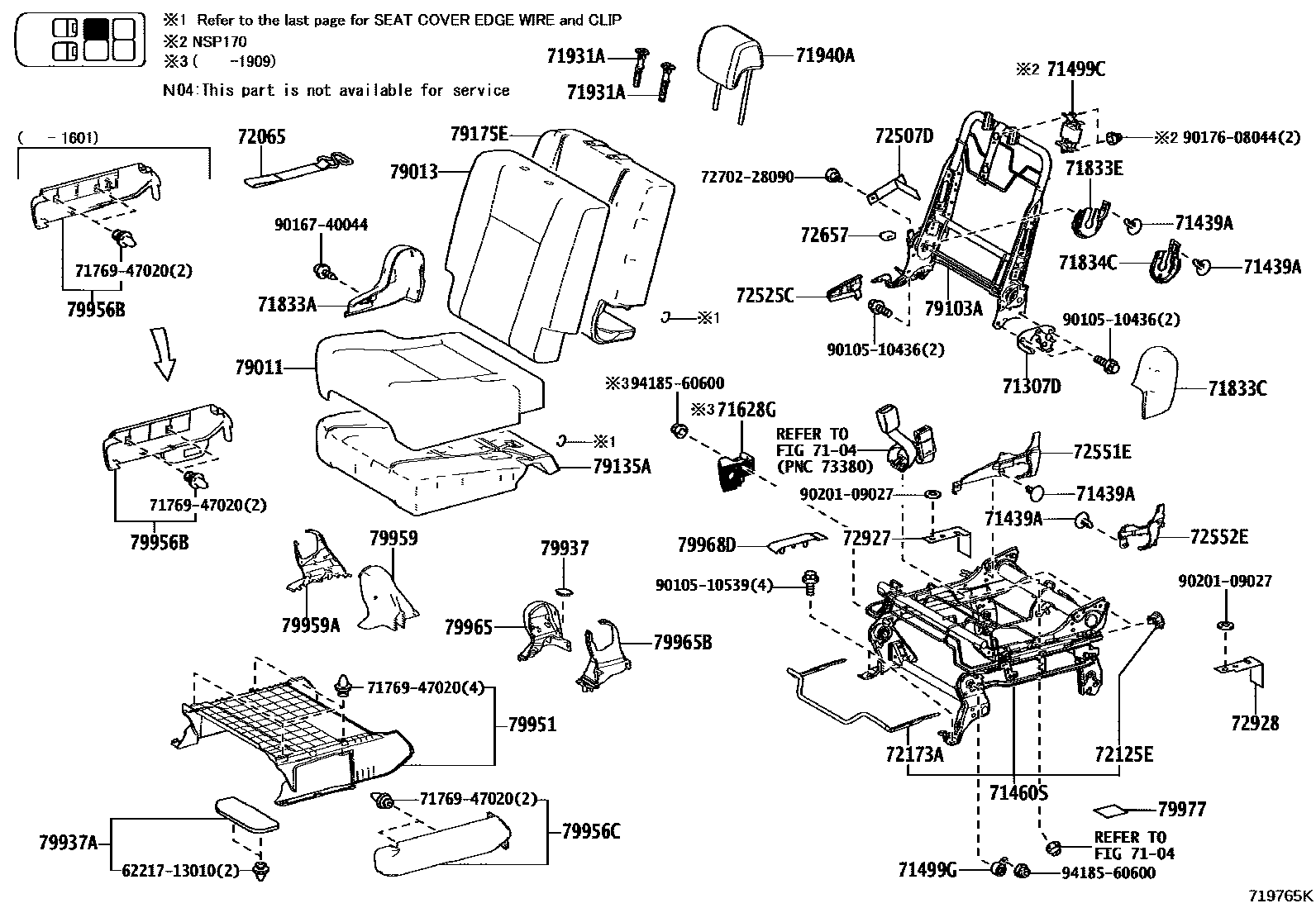

REAR SEAT & SEAT TRACK

0001 1REAR NO.1 SEAT RH 0002 1REAR NO.1 SEAT LH 0003 1REAR NO.1 SEAT RH 0004 1REAR NO.1 SEAT LH 0005 1REAR NO.2 SEAT 0006 1SEAT COVER EDGE WIRE & CLIP

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71307DBRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH

main71307-52020iNHP170,NSP170201506-201808

71439ACLIP

main67771-26230-C0×8iNHP170,NSP170201506-201710

BLACK,TRIM0#,2#

main67771-26230-C1×8iNHP170,NSP170201710-201809

BLACK,TRIM0#,2#

71460SCUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

main71460-52T50iNHP170,NSP170201506-201809

main71460-52Z60iNSP170..05S202006-202207

71499CDAMPER, REAR SEAT CUSHION SPRING

main71499-46020iNSP170201506-201809

71499GDAMPER, REAR SEATBACK SPRING, RH

main71499-52060iNHP170,NSP170201506-201809

main71499-72010iNSP170..05S202006-202207

71628GSPACER, REAR SEAT CUSHION, RH

main72136-52020iNHP170,NSP170201506-201809

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-52200-C0iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

71833CCOVER, REAR SEAT RECLINING, NO.2 RH

main71833-52210-C0iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

71833ECOVER, REAR SEAT RECLINING, NO.3 RH

main71833-52190-C0×2iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

71834CCOVER, REAR SEAT RECLINING, NO.3 LH

main71834-52170-C0×2iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-21×3iNHP170,NSP170..07S201809-202207

W(LOCK),BLACK,TRIM0#,2#

main71930-44020-C0×3iNHP170,NSP170201506-201710

W(LOCK),BLACK,TRIM0#,2#

main71931-47010-C0×3iNHP170,NSP170201506-201710

W/O(LOCK),BLACK,TRIM0#,2#

main71931-47010-C8×3iNHP170,NSP170201710-201809

W/O(LOCK),BLACK,TRIM0#,2#

71940AHEADREST ASSY, REAR SEAT

main71940-52G30-A0×2iNHP170,NSP170..07S..N201809-202207

FROMAGE/DK.BROWN,TRIM0#

main71940-52G30-B0×2iNHP170,NSP170..N201506-201809

DK.GRAY,TRIM2#

main71940-52G30-B2×2iNHP170,NSP170..07S..N201809-202102

DK.GRAY,TRIM2#

main71940-52G30-C0×2iNHP170,NSP170..07S..N202102-202207

BLACK,TRIM2#

main71940-52G30-E1×2iNHP170,NSP170..N201506-201809

FROMAGE/DK.BROWN,TRIM0#

main71940-52G40-B2×2iNHP170,NSP170..Q201506-201809

BLUE BLACK/DK.GRAY,TRIM2#

main71940-52G40-E0×2iNHP170,NSP170..Q201506-201809

DK.BROWN,TRIM0#

main71940-52G80-C0×2iNHP170,NSP170..07S..Q201809-202102

BLACK/DK.GRAY,TRIM2#

main71940-52G80-C1×2iNHP170,NSP170..07S..Q202102-202207

BLACK/BLACK,TRIM2#

main71940-52G80-E0×2iNHP170,NSP170..07S..Q201809-202207

DK.BROWN,TRIM0#

main71940-52G90-B0×2iNSP170..05S..N202006-202102

DK.GRAY,TRIM2#

main71940-52G90-C0×2iNSP170..05S..N202102-202207

BLACK,TRIM2#

main71940-52K30-C0×2iNSP170..05S..Q202006-202102

BLACK/DK.GRAY,TRIM2#

main71940-52K30-C1×2iNSP170..05S..Q202102-202207

BLACK/BLACK,TRIM2#

72065BELT SUB-ASSY, REAR SEAT HOOK, RH

main72065-28171-C1iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

72125ECOVER, SEAT TRACK, UPPER REAR RH

main71848-52120×2iNHP170,NSP170201712-201809

main72125-52020×2iNHP170,NSP170201506-201712

72173AHANDLE, REAR SEAT TRACK ADJUSTING, RH

main72173-52030iNHP170,NSP170..07S201809-202207

72507DHANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE

main72507-52030-C0×2iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

main72525-52080-C0iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

72551ECOVER, RECLINING HINGE, RH

main72551-52090-C0iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

72552COVER, RECLINING HINGE, NO.2

main72552-52100-C0iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

72552ECOVER, RECLINING HINGE, LH

main72552-52090-C0iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

72657SILENCER, REAR SEATBACK LOCK CONTROL ROD

main72657-28010×2iNHP170,NSP170201506-201809

72927COVER, REAR SEAT CUSHION UNDER, RH

main72907-52010iNHP170,NSP170201506-201809

72928COVER, REAR SEAT CUSHION UNDER, LH

main72908-52010iNHP170,NSP170201506-201809

79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main79011-52060-B2iNHP170,NSP170..N201506-201809

FROMAGE/DK.GRAY,TRIM0#

main79011-52060-B3iNHP170,NSP170..N201506-201809

BLUE BLACK/DK.GRAY,TRIM2#

main79011-52070-B2iNHP170,NSP170..Q201506-201809

DK.BROWN/DK.GRAY,TRIM0#

main79011-52070-B3iNHP170,NSP170..Q201506-201809

BLUE BLACK/DK.GRAY,TRIM2#

main79011-52120-B1iNHP170,NSP170..07S..Q201809-202102

DK.GRAY,TRIM2#

main79011-52120-B2iNHP170,NSP170..07S..Q202102-202207

DK.GRAY/BLACK,TRIM2#

main79011-52120-E1iNHP170,NSP170..07S..Q201809-202102

DK.BROWN/DK.GRAY,TRIM0#

main79011-52120-E2iNHP170,NSP170..07S..Q202102-202207

DK.BROWN/BLACK,TRIM0#

main79011-52190-B0iNSP170..05S..N202006-202102

DK.GRAY/BLACK,TRIM2#

main79011-52190-C0iNSP170..05S..N202102-202207

BLACK/BLACK,TRIM2#

main79011-52200-B0iNSP170..05S..Q202006-202102

DK.GRAY,TRIM2#

main79011-52200-C0iNSP170..05S..Q202102-202207

BLACK,TRIM2#

main79011-52210-A0iNHP170,NSP170..07S..N201809-202102

FROMAGE/DK.GRAY,TRIM0#

main79011-52210-A1iNHP170,NSP170..07S..N202102-202207

FROMAGE/BLACK,TRIM0#

main79011-52210-C0iNHP170,NSP170..07S..N201809-202102

BLACK/DK.GRAY,TRIM2#

main79011-52210-C1iNHP170,NSP170..07S..N202102-202207

BLACK/BLACK,TRIM2#

79013COVER SUB-ASSY, NO.1 SEATBACK, RH

main79013-52120-A1iNHP170,NSP170..N201506-201809

FROMAGE/DK.BROWN,TRIM0#

main79013-52120-B2iNHP170,NSP170..N201506-201809

BLUE BLACK/DK.GRAY,TRIM2#

main79013-52130-B2iNHP170,NSP170..Q201506-201809

DK.BROWN,TRIM0#

main79013-52130-B3iNHP170,NSP170..Q201506-201809

BLUE BLACK/DK.GRAY,TRIM2#

main79013-52180-B0iNHP170,NSP170..07S..Q201809-202102

DK.GRAY/BLACK,TRIM2#

main79013-52180-C0iNHP170,NSP170..07S..Q202102-202207

BLACK/BLACK,TRIM2#

main79013-52180-E0iNHP170,NSP170..07S..Q201809-202207

DK.BROWN,TRIM0#

main79013-52280-C0iNSP170..05S..N202006-202102

BLACK,TRIM2#

main79013-52280-C1iNSP170..05S..N202102-202207

BLACK/BLACK,TRIM2#

main79013-52290-C0iNSP170..05S..Q202006-202102

BLACK,TRIM2#

main79013-52290-C1iNSP170..05S..Q202102-202207

BLACK/BLACK,TRIM2#

main79013-52300-B0iNHP170,NSP170..07S..N201809-202102

DK.GRAY/BLACK,TRIM2#

main79013-52300-C0iNHP170,NSP170..07S..N202102-202207

BLACK/BLACK,TRIM2#

main79013-52300-E0iNHP170,NSP170..07S..N201809-202207

DK.BROWN/FROMAGE,TRIM0#

79103AFRAME SUB-ASSY, NO.1 SEATBACK, RH

main79103-52040iNSP170201506-201809

main79103-52060iNHP170201507-201809

main79103-52090iNSP170..05S202006-202207

79135APAD, NO.1 SEAT CUSHION, RH

main79135-52020iNHP170,NSP170201506-201809

main79135-52070iNSP170..05S202006-202207

79175EPAD, NO.1 SEATBACK, RH

main79175-52040iNHP170,NSP170201506-201809

main79175-52090iNSP170..05S202006-202207

79937COVER, REAR SEAT LEG, NO.2

main79937-52040-C0×2iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

79937ACOVER, REAR SEAT LEG, NO.2

main79926-52020-C0iNHP170,NSP170..07S201809-202207

BLACK,TRIM0#,2#

79951COVER, NO.1 SEAT CUSHION

main79951-52010-C0iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

79956BCOVER, REAR SEAT LEG SIDE, RH

main79076-52070-C0iNHP170,NSP170201601-201707

BLACK,TRIM0#,2#

main79076-52071-C0iNHP170,NSP170201708-201809

BLACK,TRIM0#,2#

main79076-52100-C0iNHP170,NSP170..07S202006-202207

BLACK,TRIM0#,2#

main79956-52090-C0iNHP170,NSP170201506-201601

BLACK,TRIM0#,2#

79956CCOVER, REAR SEAT LEG SIDE, LH

main79956-52100-C0iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

79959COVER, RR SEAT LEG

main79959-52260-C0iNHP170,NSP170..07S201809-202207

BLACK,TRIM0#,2#

79959ACOVER, REAR SEAT LEG, RH

main79959-52310-C0iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

79965COVER, REAR SEAT LEG SIDE, NO.2

main79965-52060-C0iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

79965BCOVER, REAR SEAT LEG SIDE, NO.2

main79965-52070-C0iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

79968DCOVER, REAR SEAT LEG SIDE, NO.5, RH

main79955-52040-C0iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

79977FELT, SEATBACK

main79977-52200×2iNHP170,NSP170201506-201808

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

7176947020COVER, FRONT SEAT UNDER TRAY BRACKET

main71769-47020

7270228090BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-28090

9010510436

main90105-10436

9010510539

main90105-10539

9016740044

main90167-40044

9017608044

main90176-08044

9020109027

main90201-09027

9418560600

main94185-60600

49 parts on this diagram · 6 diagrams in section
