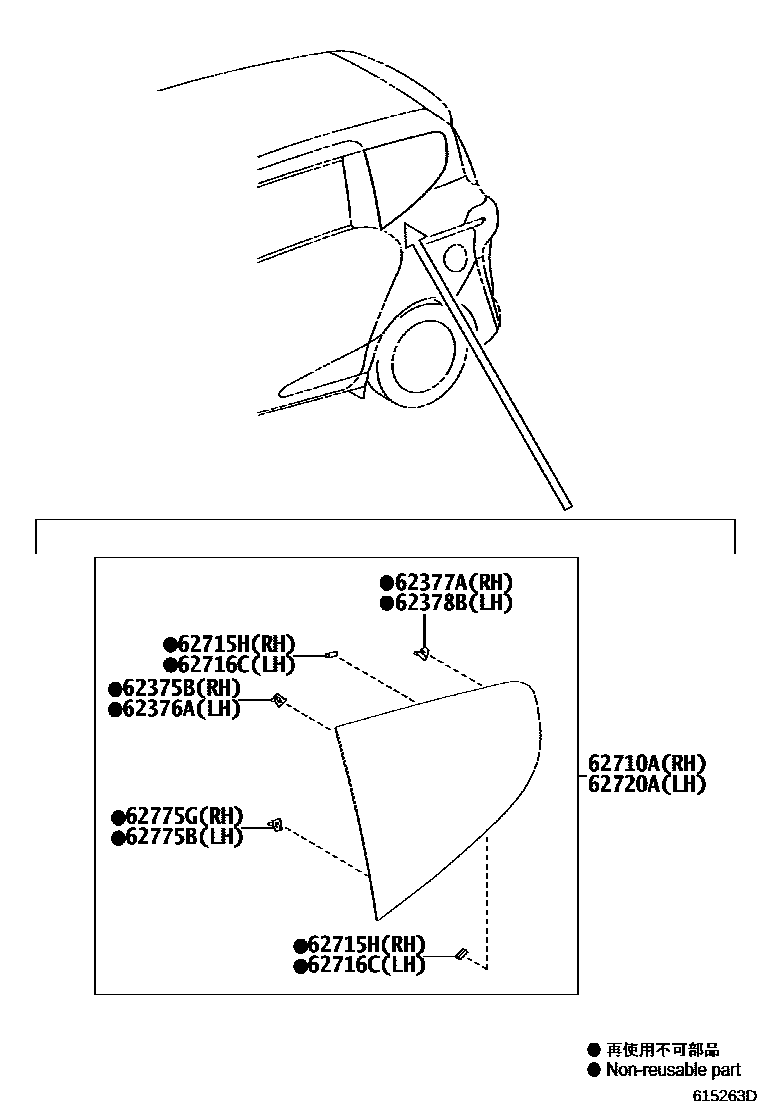

QUARTER WINDOW

62375BCLIP, SIDE WINDOW, NO.1

main62775-52160iNHP170,NSP170201506-201809

62376ACLIP, SIDE WINDOW, NO.2

main62775-52190iNHP170,NSP170201506-201809

62377ACLIP, SIDE WINDOW, NO.3

main62775-52150iNHP170,NSP170201506-201809

62378BCLIP, SIDE WINDOW, NO.4

main62775-52180iNHP170,NSP170201506-201809

62710AWINDOW ASSY, QUARTER, RH

main62710-52250iNHP170,NSP170201506-201809

62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH

main62785-12050×2iNHP170,NSP170202112-202207

main68294-26030×2iNHP170,NSP170201809-202111

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

main62785-12050×2iNHP170,NSP170202112-202207

main68294-26030×2iNHP170,NSP170201809-202111

62720AWINDOW ASSY, QUARTER, LH

main62720-52250iNHP170,NSP170201809-202207

62775BCLIP, QUARTER WINDOW, LH

main62775-52170iNHP170,NSP170201506-201809

62775GCLIP, QUARTER WINDOW, RH

main62775-52140iNHP170,NSP170201506-201809

10 parts on this diagram · 1 diagram in section
