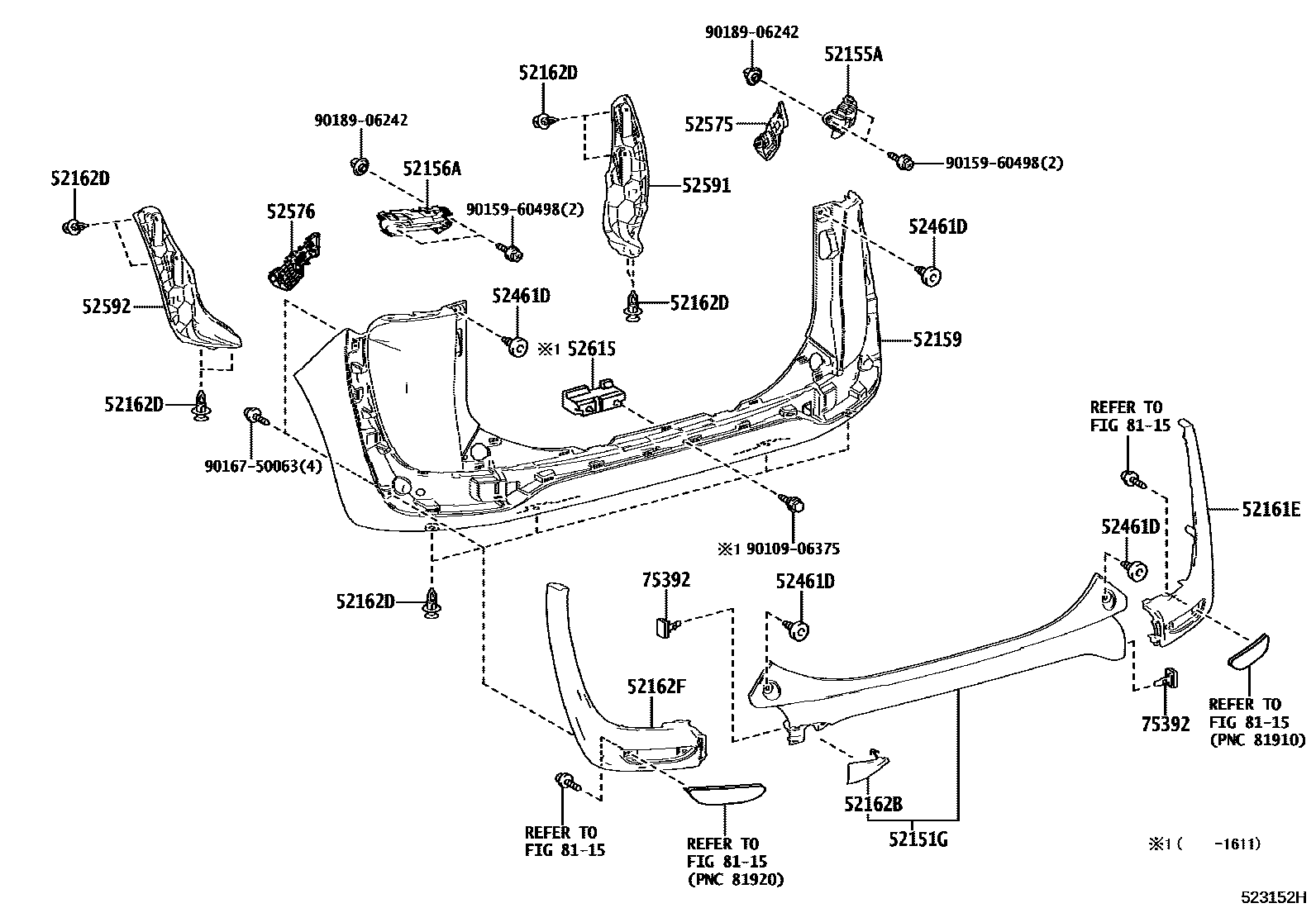

REAR BUMPER & BUMPER STAY

52151GEXTENSION, REAR BUMPER

main52151-52010iNHP170,NSP170201506-201809

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-52130iNHP170,NSP170201506-201605

main52155-52131iNHP170,NSP170201606-201809

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-52130iNHP170,NSP170201506-201809

52159COVER, REAR BUMPER

main52159-52978iNHP170,NSP170201506-201809

PAINT REQ.

52161EEXTENSION, REAR BUMPER SIDE, RH

main52161-52170iNHP170,NSP170201506-201809

52162BPLATE, REAR BUMPER, NO.1

main52162-52180iNHP170,NSP170201506-201809

52162DPIECE, REAR BUMPER

main52161-16010×12iNHP170,NSP170201506-201809

52162FEXTENSION, REAR BUMPER SIDE, LH

main52162-52150iNHP170,NSP170201506-201809

52461DCUSHION, REAR BUMPER

main52461-52020×4iNHP170,NSP170201506-201809

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52200iNHP170,NSP170201506-201809

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52180iNHP170,NSP170201506-201809

52591SEAL, REAR BUMPER SIDE, RH

main52591-52360iNHP170,NSP170201506-201809

52592SEAL, REAR BUMPER SIDE, LH

main52592-52350iNHP170,NSP170201506-201809

52615ABSORBER, REAR BUMPER ENERGY

main52615-52080iNHP170,NSP170201506-201611

75392RETAINER, OUTSIDE MOULDING

main75392-35200×2iNHP170,NSP170201506-201809

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9010906375

main90109-06375

9015960498

main90159-60498

9016750063

main90167-50063

9018906242

main90189-06242

20 parts on this diagram · 1 diagram in section
