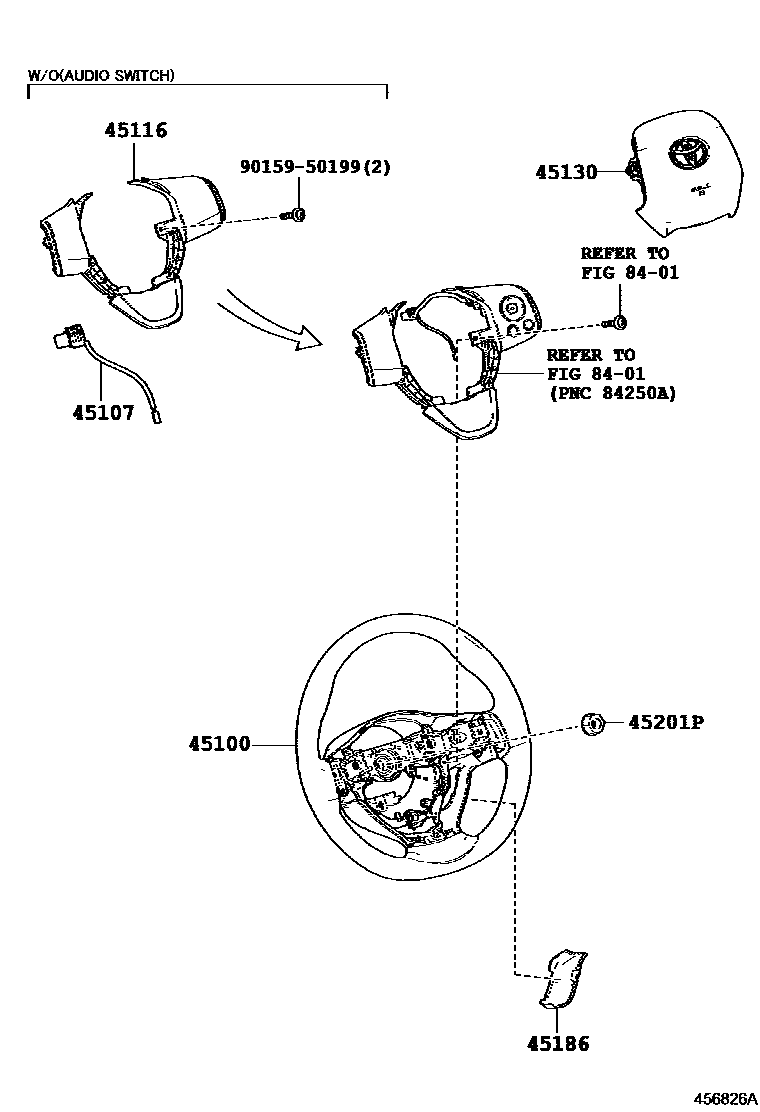

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-52480-C1iNHP170,NSP170..07S..N201809-202207

3-SPOKE, URETHANE,BLACK,TRIM0#,2#

main45100-52610-C0iNSP170..05S..Q202006-202207

3-SPOKE,LEATHER,BLACK/BLACK/STITCH NO.201,TRIM2#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-52010iNSP170..N201809-202207

main45107-48010iNSP170..N201506-201809

BACK MONITOR-WITH

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-52160-C2iNSP170..N201506-201809

PIANOBLACK_22BK22,TRIM0#,2#

45130BUTTON ASSY, HORN

main45130-52810-C0iNHP170,NSP170201506-201809

BLACK & RESIN,TRIM0#,2#

main45130-52811-C0iNHP170,NSP170..07S201910-202207

BLACK & RESIN,TRIM0#,2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-52020-C0iNHP170,NSP170201506-201809

BLACK,TRIM0#,2#

45201PNUT, STEERING WHEEL SET

main90179-12071iNHP170,NSP170201506-201809

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950199

main90159-50199

8 parts on this diagram · 1 diagram in section
