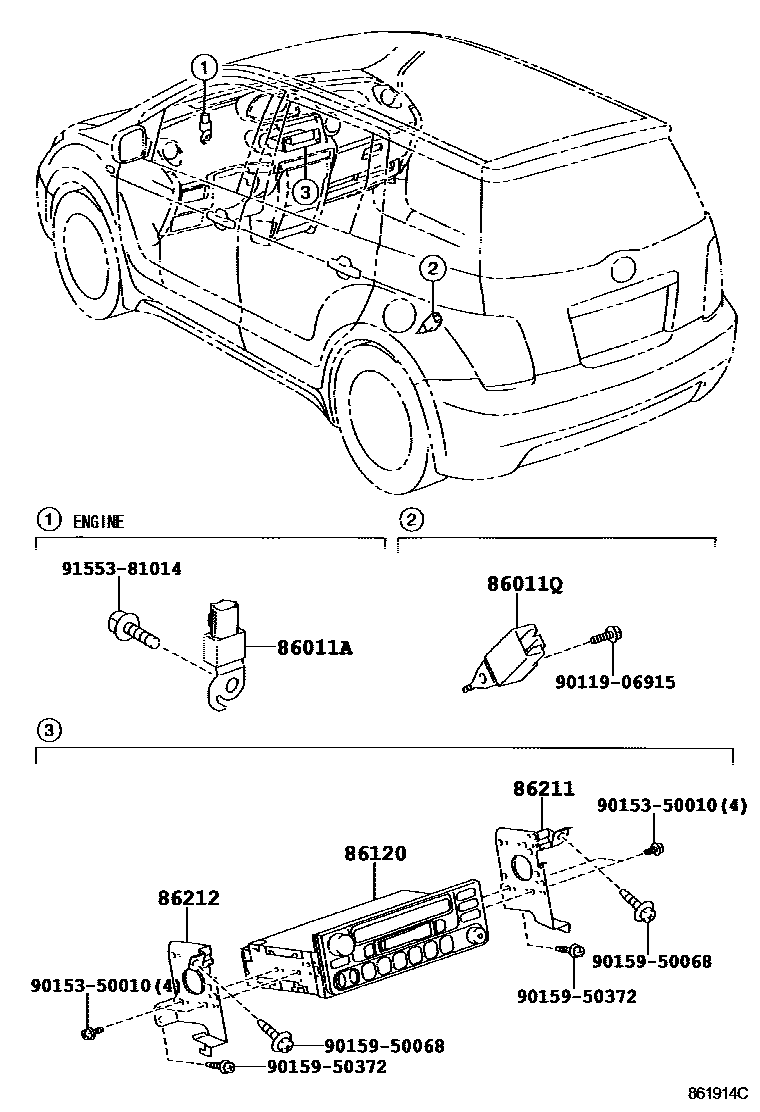

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04141iNCP61200507

86011QCONDENSER, RADIO SETTING

main90980-04148iNCP61200308-200507

86120RECEIVER ASSY, RADIO

main86120-52710iNCP61200507

PIONEER,ID=P7859,AUDIO-AM/FM CD CST 4SP,TYPE B:REFER ILLUST.

86211BRACKET, RADIO, NO.1

main86211-52091iNCP61200507

86212BRACKET, RADIO, NO.2

main86212-52091iNCP61200507

9011906915

main90119-06915

9015350010

main90153-50010

9015950068

main90159-50068

9015950372

main90159-50372

9155381014

main91553-81014

10 parts on this diagram · 2 diagrams in section
