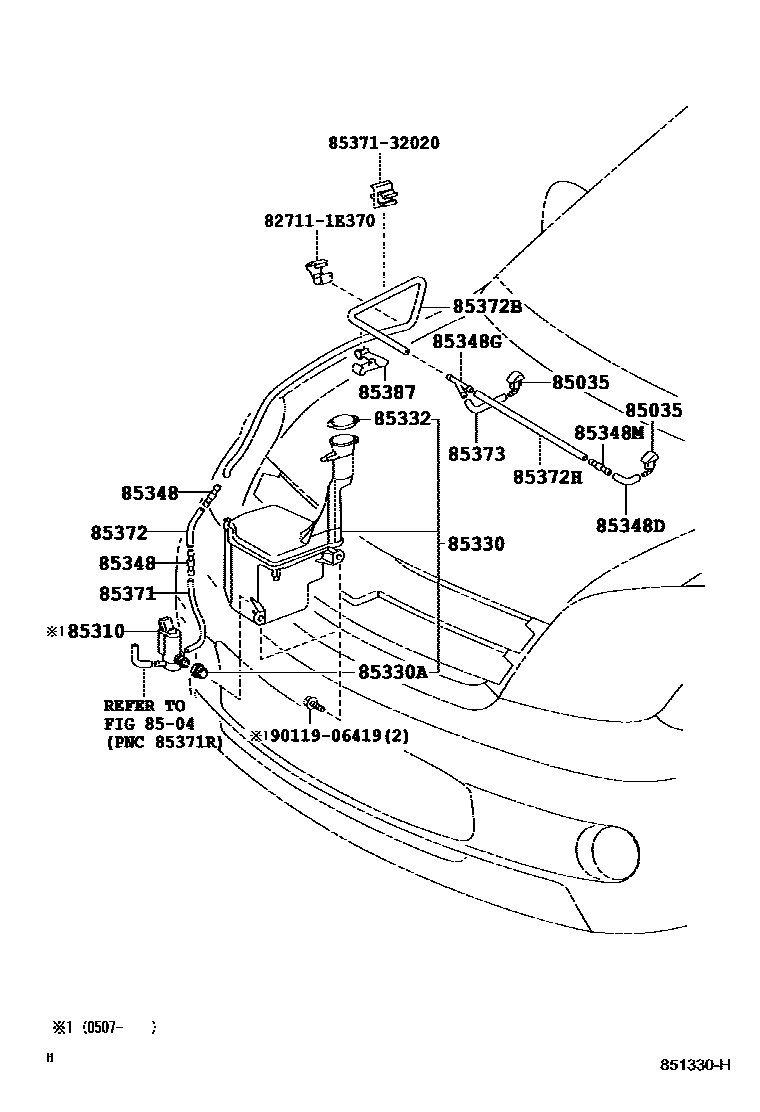

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52240×2iNCP61200308-200507

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10290iNCP61200308-200505

85330JAR ASSY, WINDSHIELD WASHER

main85315-52240iNCP61200308-200507

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iNCP61200308-200507

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iNCP61200308-200507

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122×2iNCP61200308-200507

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230iNCP61200308-200507

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250iNCP61200308-200507

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iNCP61200308-200507

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iNCP61200308-200507

L=1800(*H,L=270)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iNCP61200304-200507

L=1450(*H,L=50)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iNCP61200308-200507

L=1800(*H,L=1680)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iNCP61200308-200507

L=1800(*H,L=610)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iNCP61200308-200507

L=1450(*H,L=80)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22410iNCP61200308-200507

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

9011906419

main90119-06419

19 parts on this diagram · 1 diagram in section
