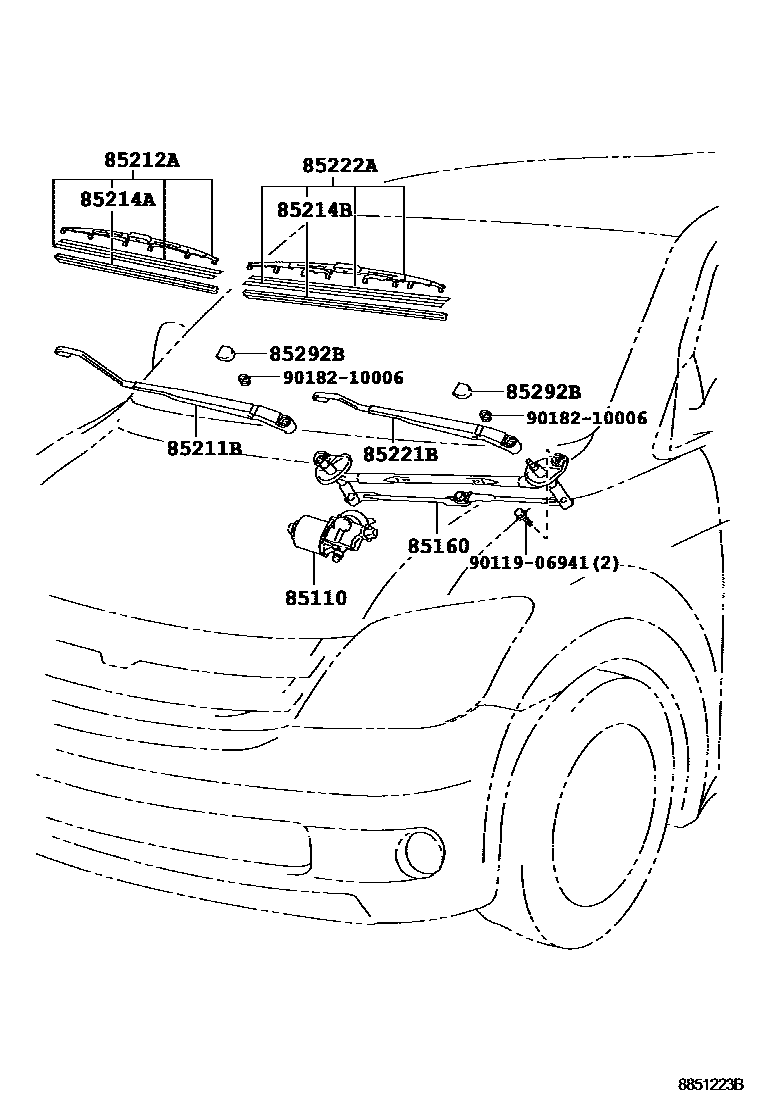

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-35290iNCP61200308-200507

85160LINK ASSY, WINDSHIELD WIPER

main85150-52180iNCP61200308-200507

85211BARM, FRONT WIPER, RH

main85211-52200iNCP61200308-200507

85212ABLADE, FR WIPER, RH

main85212-12340iNCP61200308-200312

main85212-12370iNCP61200312-200507

main85212-12371iNCP61200608

85214ARUBBER, WIPER, RH

main85214-50060iNCP61200312-200507

main85214-50061iNCP61200608

main85214-50130iNCP61200308-200312

85214BRUBBER, WIPER, LH

main85214-50100iNCP61200308-200507

85221BARM, FRONT WIPER, LH

main85221-52170iNCP61200507

85222ABLADE, FR WIPER, LH

main85222-24080iNCP61200312-200507

main85222-52100iNCP61200308-200312

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iNCP61200308-200507

9011906941

main90119-06941

9018210006

main90182-10006

11 parts on this diagram · 1 diagram in section
