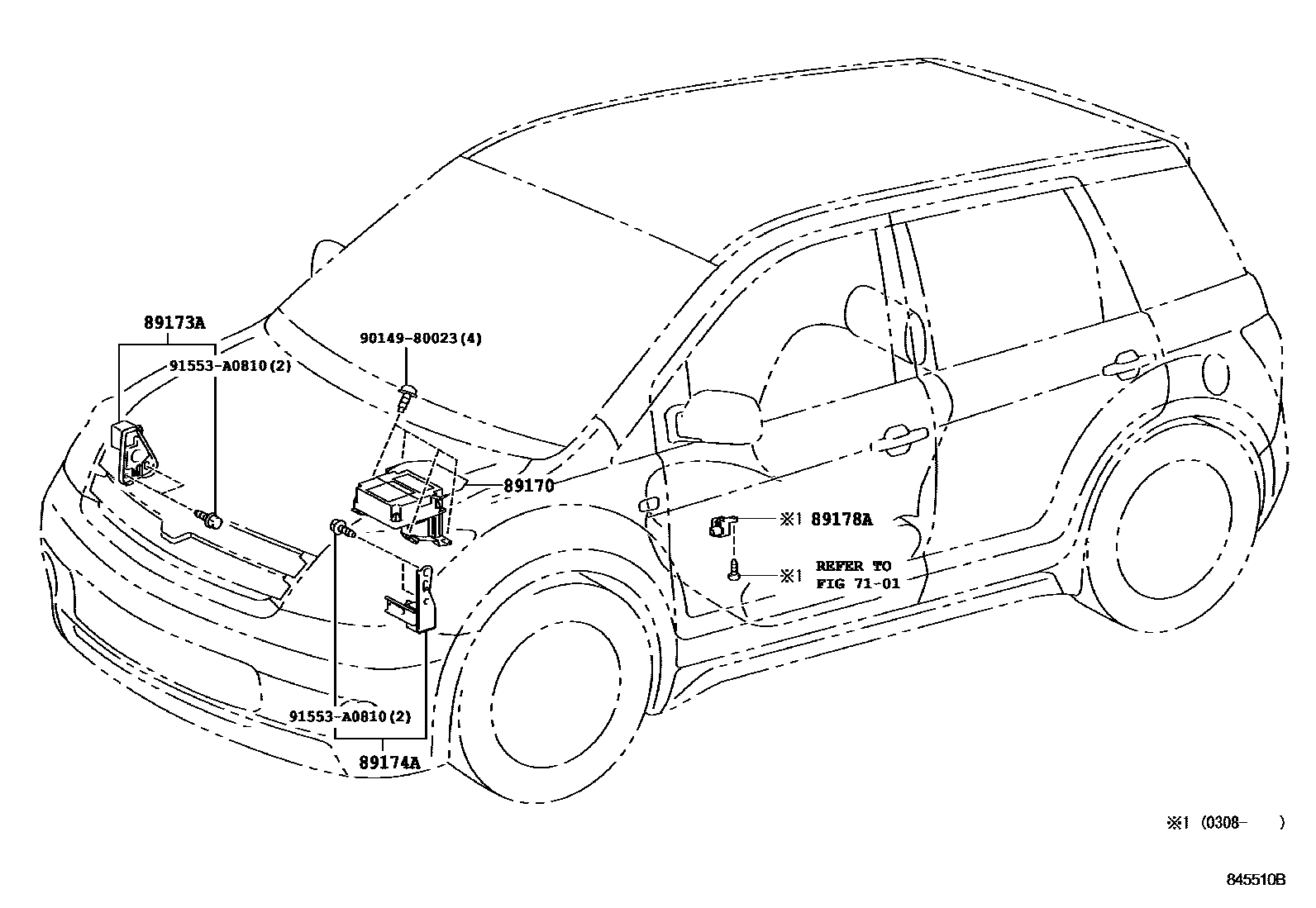

AIR BAG

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

89170SENSOR ASSY, AIRBAG

main89170-52420iNCP61200308-200507

89173ASENSOR, AIRBAG, FRONT RH

main89173-69115iNCP61200308-200507

89174ASENSOR, AIRBAG, FRONT LH

main89174-69115iNCP61200308-200507

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06020iNCP61200308-200507

9014980023

main90149-80023

91553A0810

main91553-A0810

7 parts on this diagram · 1 diagram in section
