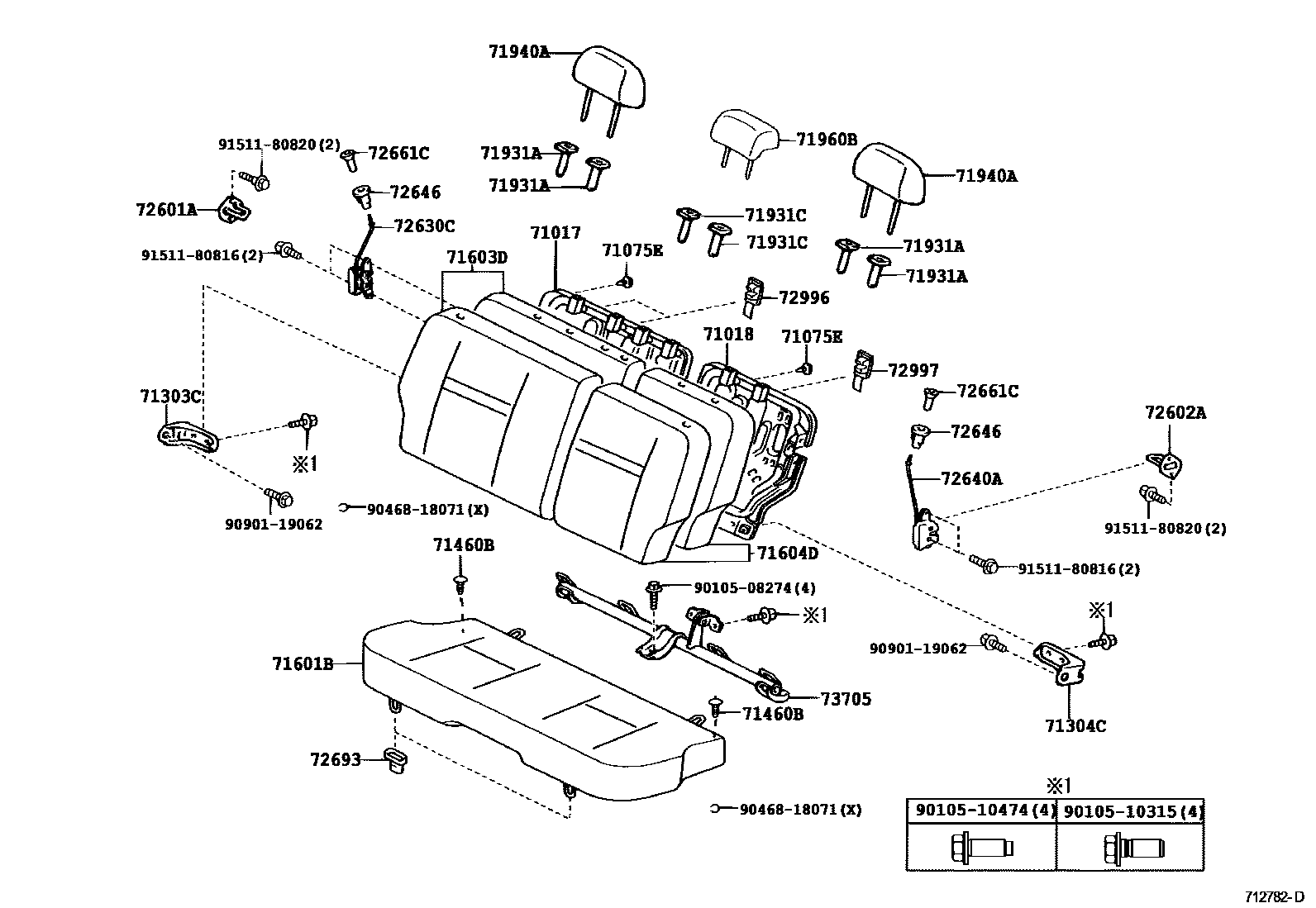

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-52440iNCP61200507

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-52270iNCP61200308-200507

71075ECLIP(FOR REAR SEAT)

main90467-11050-B3×15iNCP61200308-200507

DK.GRAY,TRIM1#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71345-52010iNCP61200308-200507

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71345-52010iNCP61200308-200507

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main90467-06070-B6×2iNCP61200308-200507

DK.GRAY,TRIM1#

71601BPAD SUB-ASSY, REAR SEAT CUSHION W/COVER

main71601-52C90-B0iNCP61200507-200612

DK.GRAY,TRIM1#

main71601-5C590-C0iNCP61200308-200507

BLACK,TRIM1#

71603DPAD SUB-ASSY, REAR SEATBACK W/COVER, RH

main71603-52C10-C0iNCP61200407-200507

BLACK,TRIM1#

main71603-52D20-B0iNCP61200507-200612

DK.GREY,TRIM1#

main71603-5D080-C0iNCP61200308-200407

BLACK,TRIM1#

71604DPAD SUB-ASSY, REAR SEATBACK W/COVER, LH

main71604-52B50-C0iNCP61200407-200507

BLACK,TRIM1#

main71604-52C40-B0iNCP61200507-200612

DK.GREY,TRIM1#

main71604-5C110-C0iNCP61200308-200407

BLACK,TRIM1#

71931ASUPPORT, REAR SEAT HEADREST

main71930-47010-B2×2iNCP61200308-200507

W(LOCK),DK.GRAY,TRIM1#

main71931-47010-B2×2iNCP61200308-200507

W/O(LOCK),DK.GRAY,TRIM1#

71931CSUPPORT ASSY, REAR NO.2 SEAT HEADREST

main71956-47010-B2iNCP61200507-200612

W/O(LOCK),DK.GRAY,TRIM1#

main71970-47010-B2iNCP61200308-200507

W(LOCK),DK.GRAY,TRIM1#

71940AHEADREST ASSY, REAR SEAT

main71940-52130-C0×2iNCP61200308-200507

BLACK,TRIM1#

main71940-52290-B0×2iNCP61200507-200612

DK.GRAY,TRIM1#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-52180-C0iNCP61200308-200507

BLACK,TRIM1#

main71960-52230-B0iNCP61200507-200612

DK.GRAY,TRIM1#

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-52130iNCP61200308-200507

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72601-52110iNCP61200308-200507

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-52060iNCP61200308-200507

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-52050iNCP61200405-200507

main72640-52080iNCP61200308-200405

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-33010-B4×2iNCP61200308-200507

DK.GRAY,TRIM1#

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-32030-B3×2iNCP61200308-200507

DK.GRAY,TRIM1#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-10040×2iNCP61200507

72996COVER, REAR SEATBACK, RH

main72996-60110-B2×2iNCP61200308-200507

DK.GRAY,TRIM1#

72997COVER, REAR SEATBACK, LH

main72996-60110-B2iNCP61200308-200507

DK.GRAY,TRIM1#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-52060iNCP61200308-200507

9010508274

main90105-08274

9010510315

main90105-10315

9010510474

main90105-10474

9046818071

main90468-18071

9090119062

main90901-19062

9151180816

main91511-80816

9151180820

main91511-80820

30 parts on this diagram · 1 diagram in section
