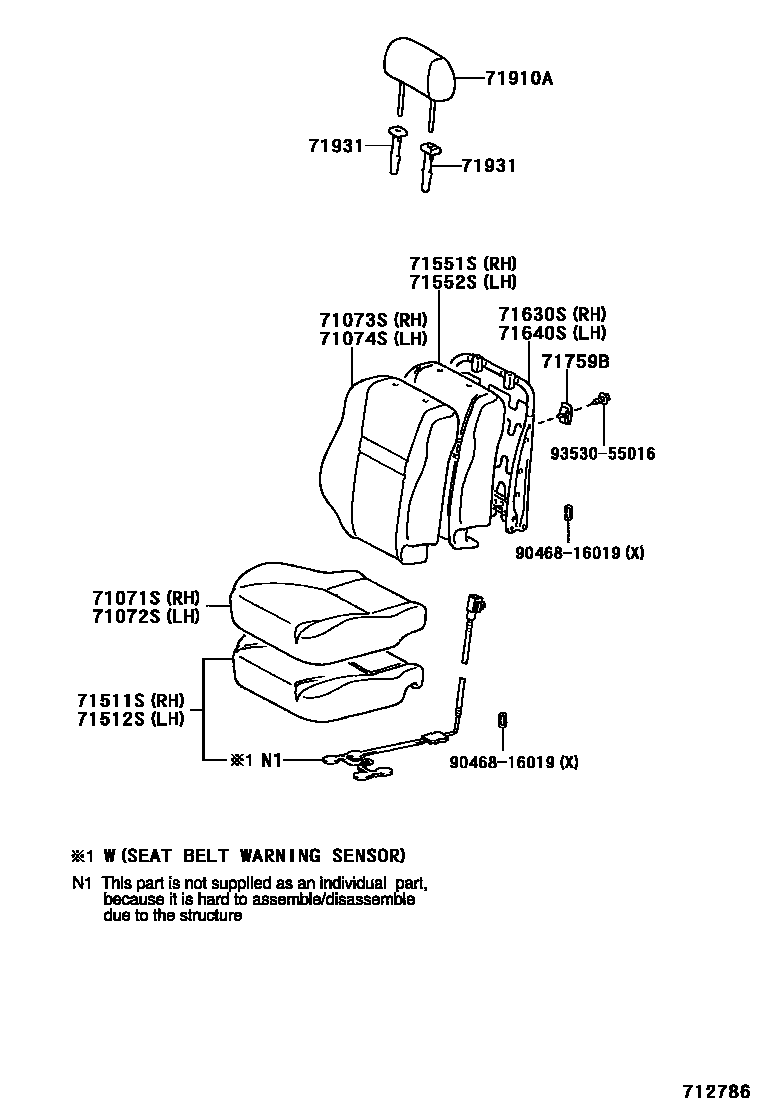

FRONT SEAT & SEAT TRACK

0001 1 0002 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-52A20-B0iNCP61200507-200612

DK.GREY,TRIM1#

main71071-5C200-C0iNCP61200308-200507

BLACK,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-52A40-B0iNCP61200507-200612

DK.GREY,TRIM1#

main71072-5C170-C0iNCP61200308-200507

BLACK,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-52560-C2iNCP61200308-200507

BLACK,TRIM1#

main71073-52B80-B0iNCP61200507-200612

DK.GREY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-52450-C0iNCP61200308-200507

BLACK,TRIM1#

main71074-52770-B0iNCP61200507-200612

DK.GREY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71502-52020iNCP61200507

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-63020iNCP61200308-200507

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-13160iNCP61200308-200507

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-13160iNCP61200308-200507

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-13050iNCP61200308-200507

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-13040iNCP61200507

71759BHOOK, FRONT SEATBACK

main71759-13020-B0×2iNCP61200308-200507

DK.GRAY,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-52240-C0×2iNCP61200308-200507

BLACK,TRIM1#

main71910-52540-B0×2iNCP61200507-200612

DK.GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47010-B2×2iNCP61200308-200507

W(LOCK),DK.GRAY,TRIM1#

main71931-47010-B2×2iNCP61200507-200612

W/O(LOCK),DK.GRAY,TRIM1#

9046816019

main90468-16019

9353055016

main93530-55016

15 parts on this diagram · 2 diagrams in section
