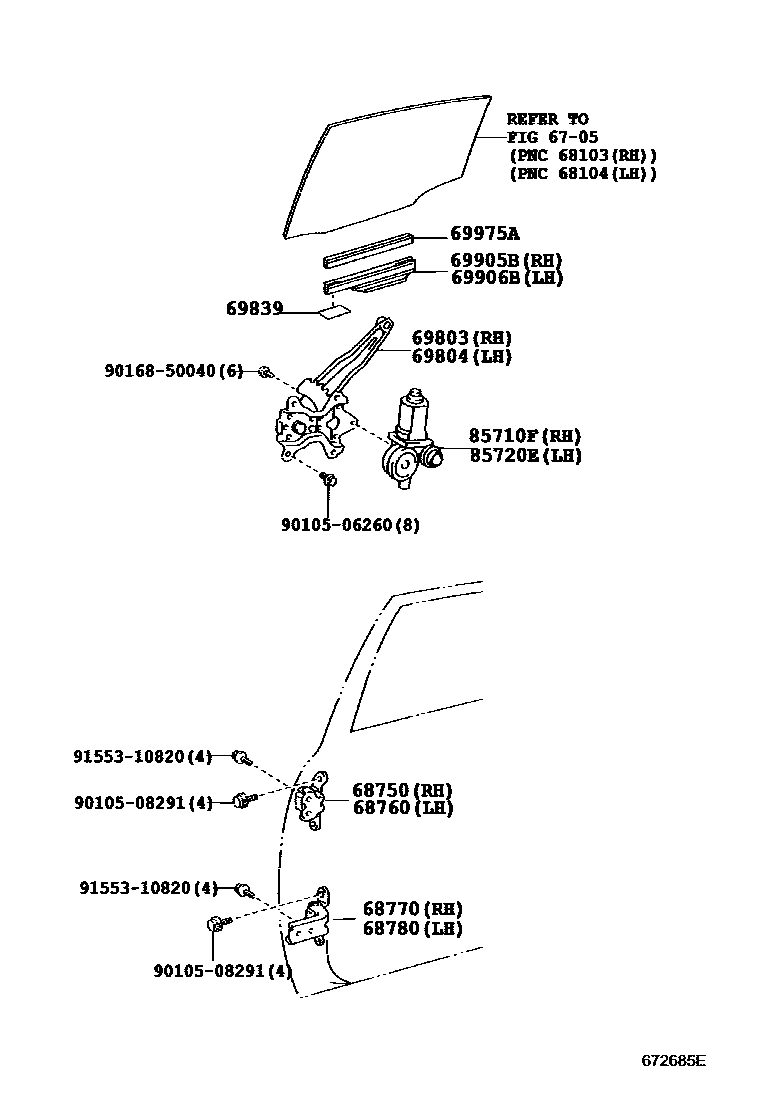

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20120iNCP61200308-200507

main68750-20121iNCP61200610-200612

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20120iNCP61200308-200507

main68760-20121iNCP61200610-200612

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-60030iNCP61200308-200507

main68770-60031iNCP61200610-200612

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-60030iNCP61200308-200507

main68780-60031iNCP61200610-200612

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-52070iNCP61200308-200507

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-52070iNCP61200308-200507

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-52010×2iNCP61200308-200507

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52020iNCP61200308-200507

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52010iNCP61200308-200507

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iNCP61200308-200507

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-32160iNCP61200308-200507

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-32190iNCP61200308-200507

9010506260

main90105-06260

9010508291

main90105-08291

9016850040

main90168-50040

9155310820

main91553-10820

17 parts on this diagram · 1 diagram in section
