Toyota TOYOTA XA — ROOF HEADLINING & SILENCER PAD

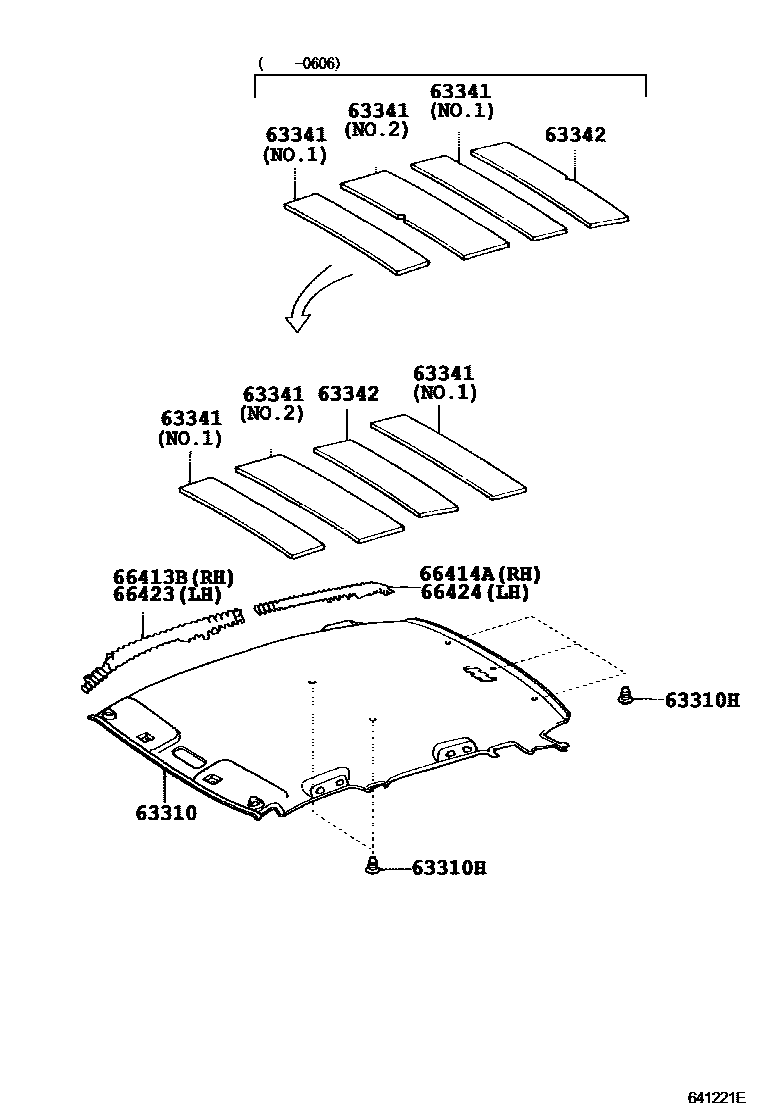

Parts diagram

63310HEADLINING ASSY, ROOF

63310HCLIP(FOR ROOF HEADLINING)

63341PAD, ROOF SILENCER, NO.1

63342PAD, ROOF SILENCER, NO.2

66413BSPACER, SIDE RAIL, FRONT RH

66414ASPACER, SIDE RAIL, REAR RH

66423SPACER, SIDE RAIL, FRONT LH

66424SPACER, SIDE RAIL, REAR LH

8 parts on this diagram · 2 diagrams in section

ROOF HEADLINING & SILENCER PAD for Toyota TOYOTA XA

This section contains 11 genuine Toyota parts for the ROOF HEADLINING & SILENCER PAD system of the Toyota TOYOTA XA. Key components include: TRIM SUB-ASSY, SUNSHADE, HEADLINING ASSY, ROOF, CLIP(FOR ROOF HEADLINING), MOULDING, SUN ROOF OPENING TRIM, PAD, ROOF SILENCER, NO.1.
