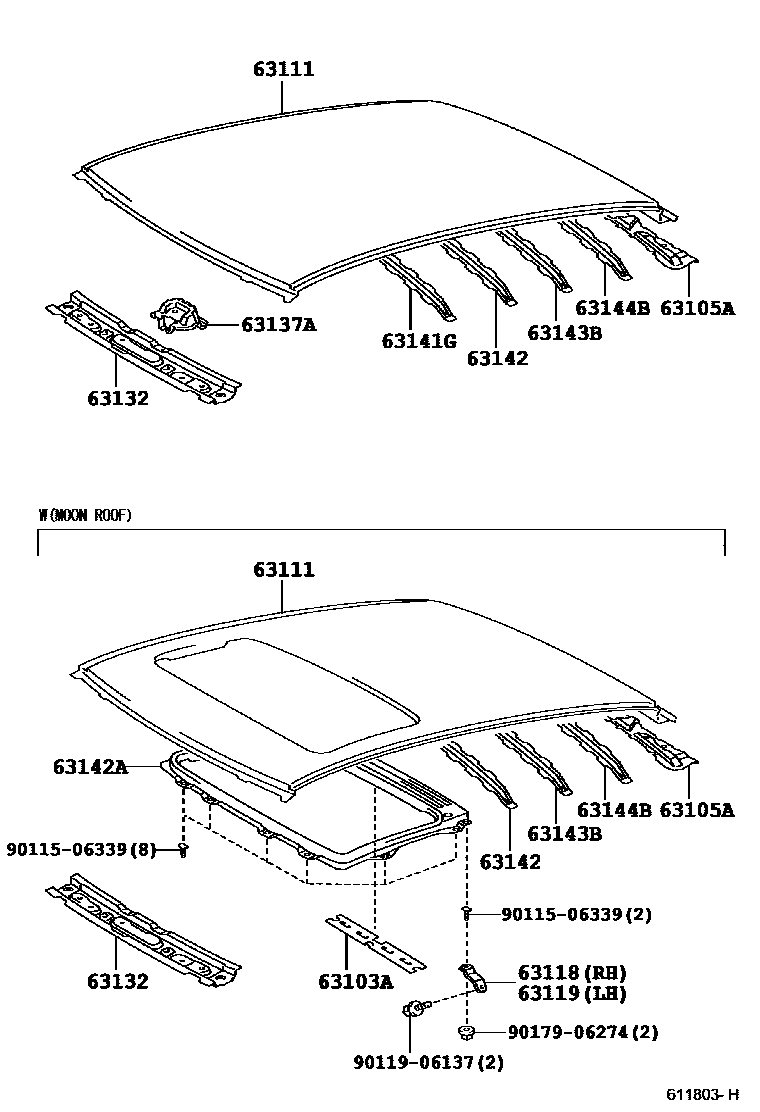

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-52060iNCP61200507-200605

WITH(MOON ROOF)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52050iNCP61200308-200507

63111PANEL, ROOF

main63111-52350supersedes 63111-52180iNCP61200507-200605

WITH(MOON ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-52040iNCP61200507-200605

WITH(MOON ROOF)

63119SUPPORT, ROOF PANEL, LH

main63118-52040iNCP61200507-200605

WITH(MOON ROOF)

63132PANEL, WINDSHIELD HEADER, INNER

main63132-52060iNCP61200308-200507

63137ABRACKET, DOME LAMP, NO.1

main63137-52020iNCP61200308-200507

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63149-52030iNCP61200308-200507

63142REINFORCEMENT, ROOF PANEL, NO.2

main63143-52070supersedes 63143-52060iNCP61200507-200605

WITH(MOON ROOF)

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-52901iNCP61200507-200605

WITH(MOON ROOF)

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63141-52060iNCP61200308-200507

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-52040iNCP61200308-200507

9011506339

main90115-06339

9011906137

main90119-06137

9017906274

main90179-06274

15 parts on this diagram · 2 diagrams in section
