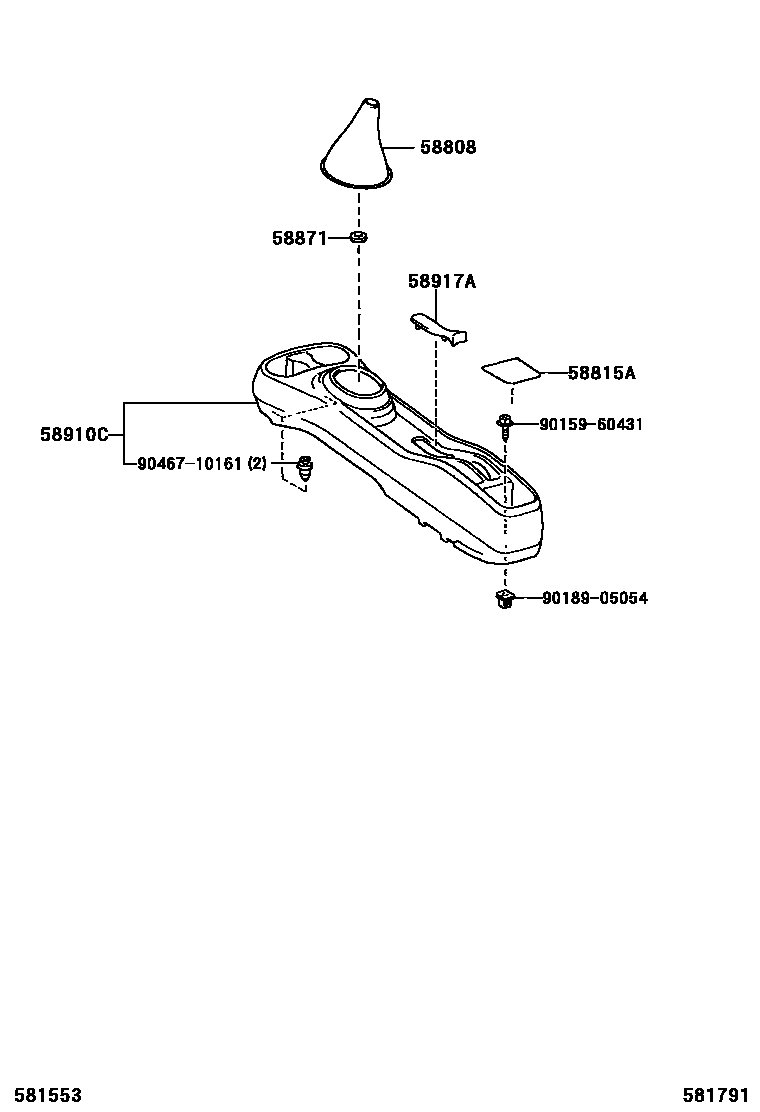

CONSOLE BOX & BRACKET

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-52050-B0iNCP61..5F200308-200507

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-52020iNCP61200308-200507

58871CUSHION, CONSOLE BOX

main58871-20060iNCP61..5F200308-200507

58910CBOX ASSY, CONSOLE, REAR

main58910-52010-B0iNCP61200308-200507

DK.GRAY,TRIM1#

58917ACOVER, CONSOLE BOX, REAR

main58917-52030-B0iNCP61200308-200507

DK.GRAY,TRIM1#

9015960431

main90159-60431

9018905054

main90189-05054

9046710161

main90467-10161

8 parts on this diagram · 1 diagram in section
