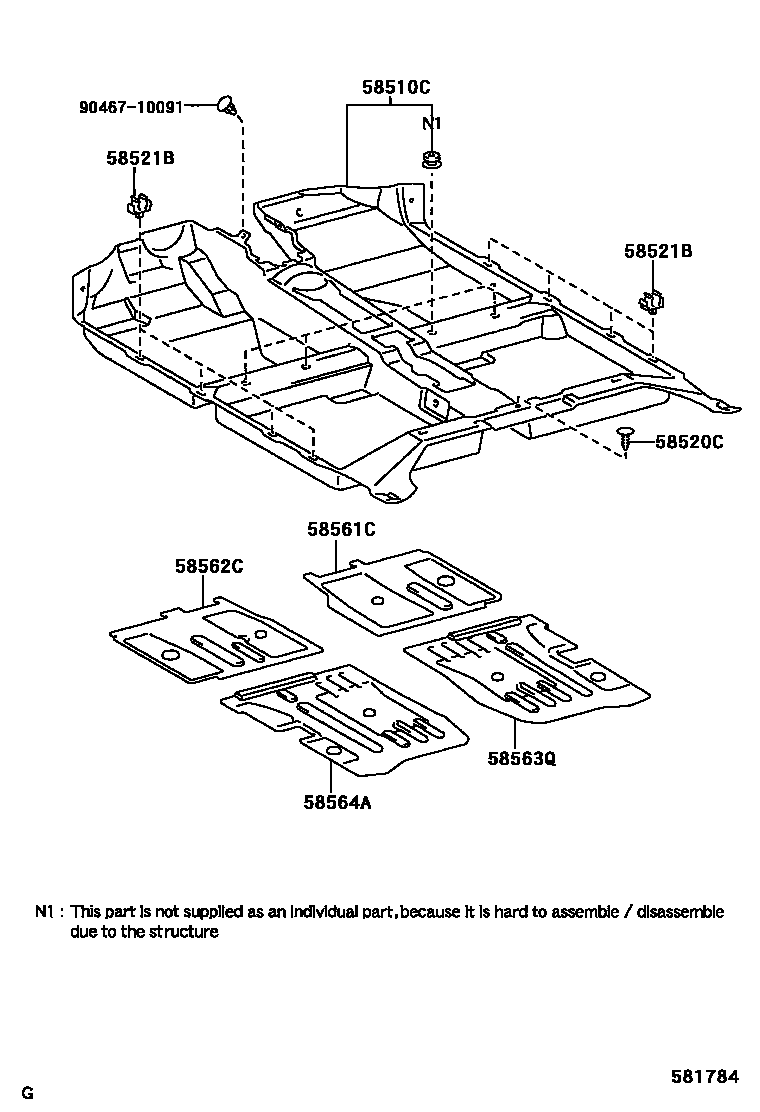

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-5C150-B1iNCP61200308-200507

DK. GREY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-P2iNCP61200308-200507

DK.GRAY,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-52010×8iNCP61200308-200507

58561CSILENCER, FRONT FLOOR, NO.1

main58561-52070iNCP61200308-200507

58562CSILENCER, FRONT FLOOR, NO.2

main58562-52020iNCP61200308-200507

58563QSILENCER, FRONT FLOOR, NO.3

main58563-52010iNCP61200308-200507

58564ASILENCER, FRONT FLOOR, NO.4

main58564-52040iNCP61200308-200507

9046710091

main90467-10091

8 parts on this diagram · 1 diagram in section
