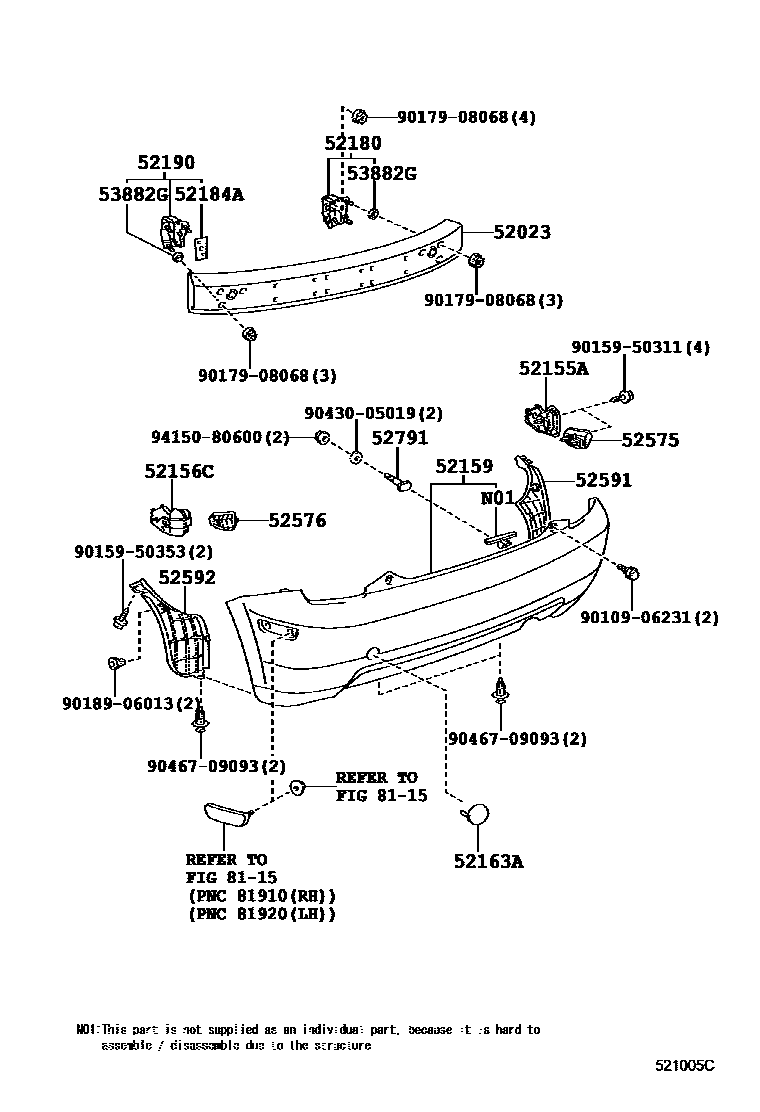

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52171-52040iNCP61200308-200612

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-52040iNCP61200308-200507

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-52040iNCP61200308-200507

52159COVER, REAR BUMPER

main52159-52915iNCP61200308-200507

PAINT REQ.

main52159-52927iNCP61200507-200612

PAINT REQ.

52163APLATE, REAR BUMPER, RH

main52163-52901iNCP61200308-200507

52180BRACKET ASSY, REAR BUMPER SIDE MOUNTING, RH

main52180-52010iNCP61200308-200507

52184AARM, REAR BUMPER, INNER LH

main52184-52020iNCP61200308-200507

52190BRACKET ASSY, REAR BUMPER SIDE MOUNTING, LH

main52190-52020iNCP61200308-200507

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52060iNCP61200308-200409

main52575-52061iNCP61200410-200507

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52040iNCP61200308-200409

main52576-52041iNCP61200410-200507

52591SEAL, REAR BUMPER SIDE, RH

main52591-52140iNCP61200308-200507

main52591-52210iNCP61200507

52592SEAL, REAR BUMPER SIDE, LH

main52592-52130iNCP61200308-200507

main52592-52200iNCP61200507

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12040iNCP61200308-200507

53882GSEAL, FRONT FENDER

main53882-30040iNCP61200308-200507

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9010906231

main90109-06231

9015950311

main90159-50311

9015950353

main90159-50353

9017908068

main90179-08068

9018906013

main90189-06013

9043005019

main90430-05019

9046709093

main90467-09093

9415080600

main94150-80600

23 parts on this diagram · 2 diagrams in section
