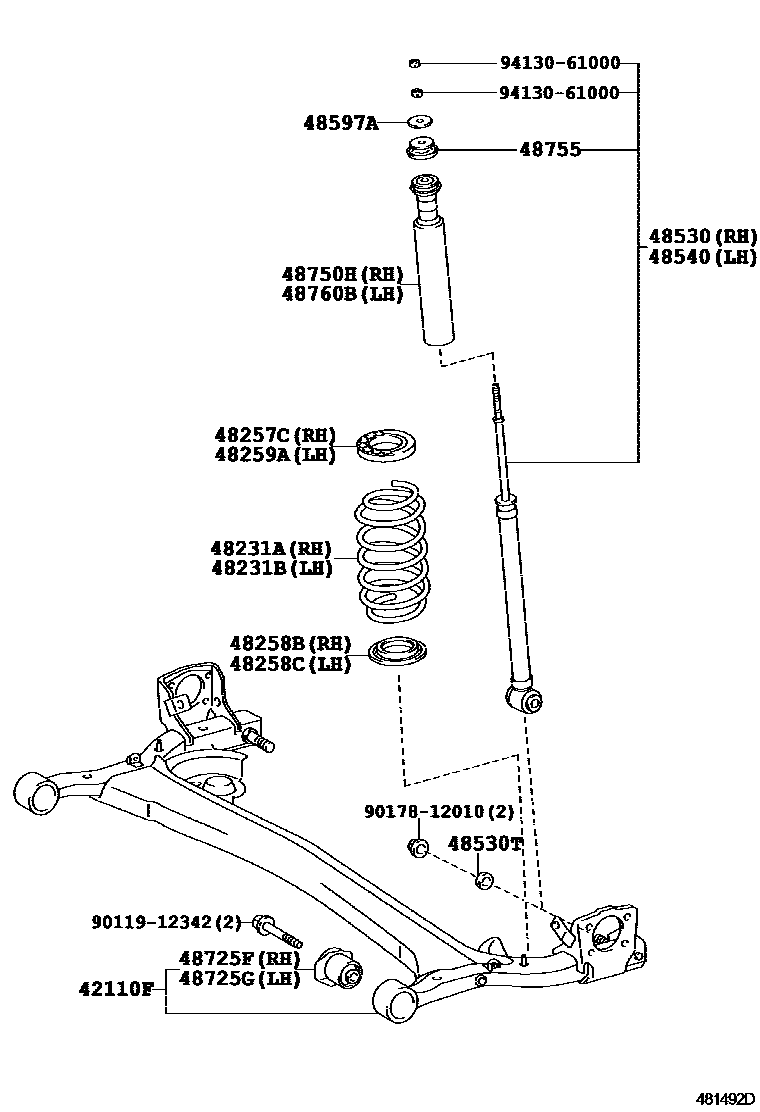

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42110-52140iNCP61200308-200507

48231ASPRING, COIL, REAR RH

main48231-52170iNCP61200308-200507

48231BSPRING, COIL, REAR LH

main48231-52170iNCP61200308-200507

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iNCP61200308-200507

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-52010iNCP61200308-200507

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-52010iNCP61200308-200507

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iNCP61200308-200507

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-59795iNCP61200308-200404

MARK 48530-52640

main48530-80195iNCP61200405-200507

MARK 48530-52640

48530TSPACER(FOR REAR SHOCK ABSORBER)

main90560-12065×2iNCP61200308-200507

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-59795iNCP61200308-200404

MARK 48530-52640

main48530-80195iNCP61200405-200507

MARK 48530-52640

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320×2iNCP61200308-200507

48725FBUSH, REAR AXLE CARRIER, RH

main48725-52021iNCP61200308-200507

48725GBUSH, REAR AXLE CARRIER, LH

main48725-52021iNCP61200308-200507

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-52090iNCP61200308-200507

48755SUPPORT, REAR SUSPENSION

main48755-52070×2iNCP61200308-200507

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-52090iNCP61200308-200507

9011912342

main90119-12342

9017812010

main90178-12010

9413061000

main94130-61000

19 parts on this diagram · 2 diagrams in section
