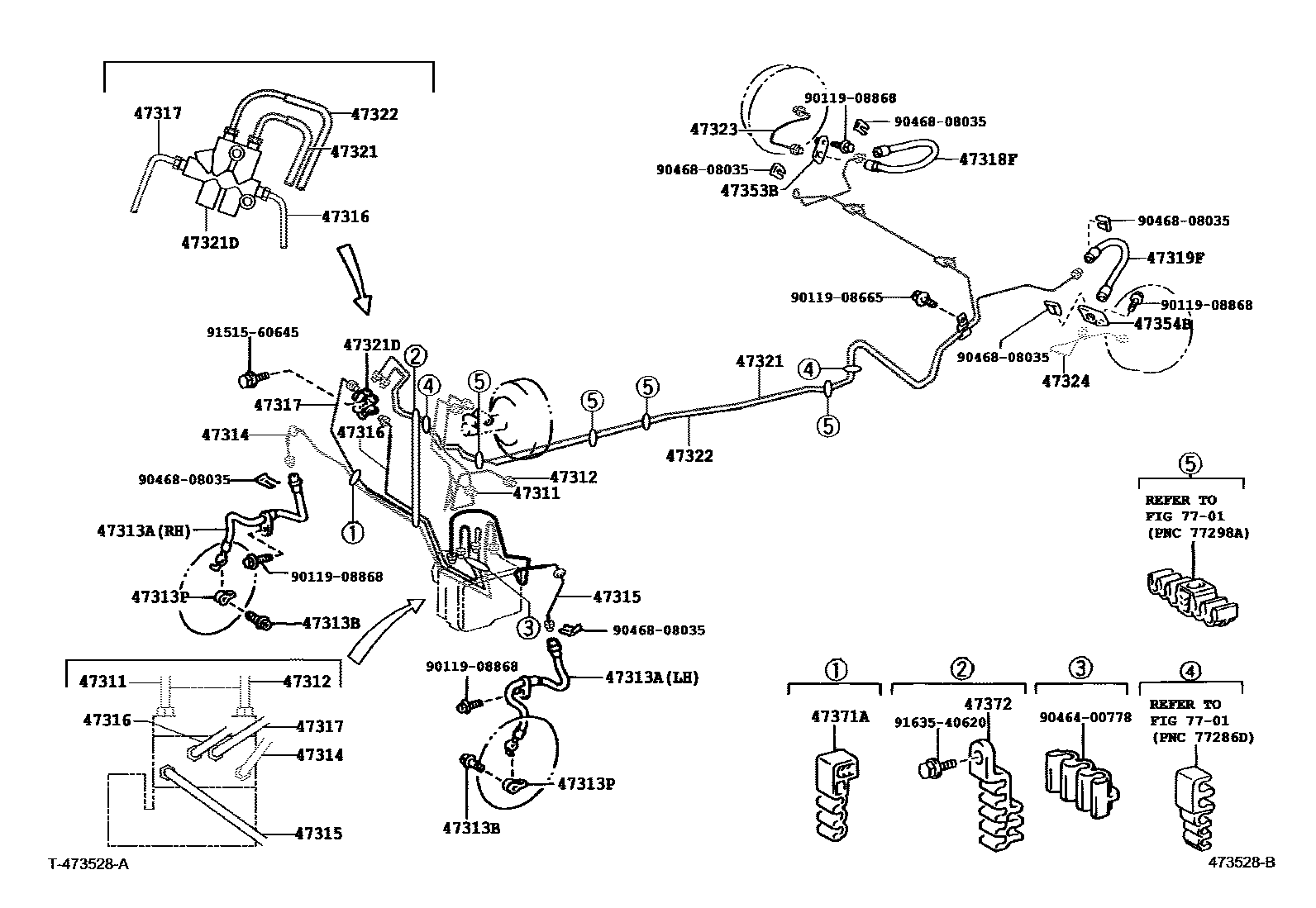

BRAKE TUBE & CLAMP

0001 1 0002 1W(VSC) 0003 1 0004 1W(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-52150supersedes 47311-52160iNCP61200604

VSC-WITH

47312TUBE, FRONT BRAKE, NO.2

main47312-52140supersedes 47312-52150iNCP61200507-200604

WITH(MOON ROOF)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02D76iNCP61200507

RH

main90947-02D77iNCP61200308-200507

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNCP61200308-200507

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iNCP61200308-200507

47314TUBE, FRONT BRAKE, NO.4

main47314-52081supersedes 47314-52091iNCP61200604

VSC-WITH

47315TUBE, FRONT BRAKE, NO.5

main47315-52081supersedes 47315-52090iNCP61200507-200604

WITH(MOON ROOF)

47316TUBE, FRONT BRAKE, NO.6

main47316-52061supersedes 47316-52071iNCP61200604

VSC-WITH

47317TUBE, FRONT BRAKE, NO.7

main47317-52061supersedes 47317-52071iNCP61200604

VSC-WITH

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02C30iNCP61200308-200507

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02C30iNCP61200308-200507

47321TUBE, REAR BRAKE, NO.1

main47321-52012iNCP61200308-200507

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90904-12088iNCP61200308-200507

47322TUBE, REAR BRAKE, NO.2

main47322-52012iNCP61200308-200507

47323TUBE, REAR BRAKE, NO.3

main47323-52090iNCP61200308-200507

47324TUBE, REAR BRAKE, NO.4

main47324-52080iNCP61200308-200507

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-52010iNCP61200308-200507

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-52010iNCP61200308-200507

47371ACLAMP, BRAKE TUBE, NO.1

main47371-52010iNCP61200308-200507

47372CLAMP, BRAKE TUBE, NO.2

main47372-52010iNCP61200308-200507

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908665

main90119-08665

9011908868

main90119-08868

9046400778

main90464-00778

9046808035

main90468-08035

9151560645

main91515-60645

9163540620

main91635-40620

27 parts on this diagram · 4 diagrams in section
