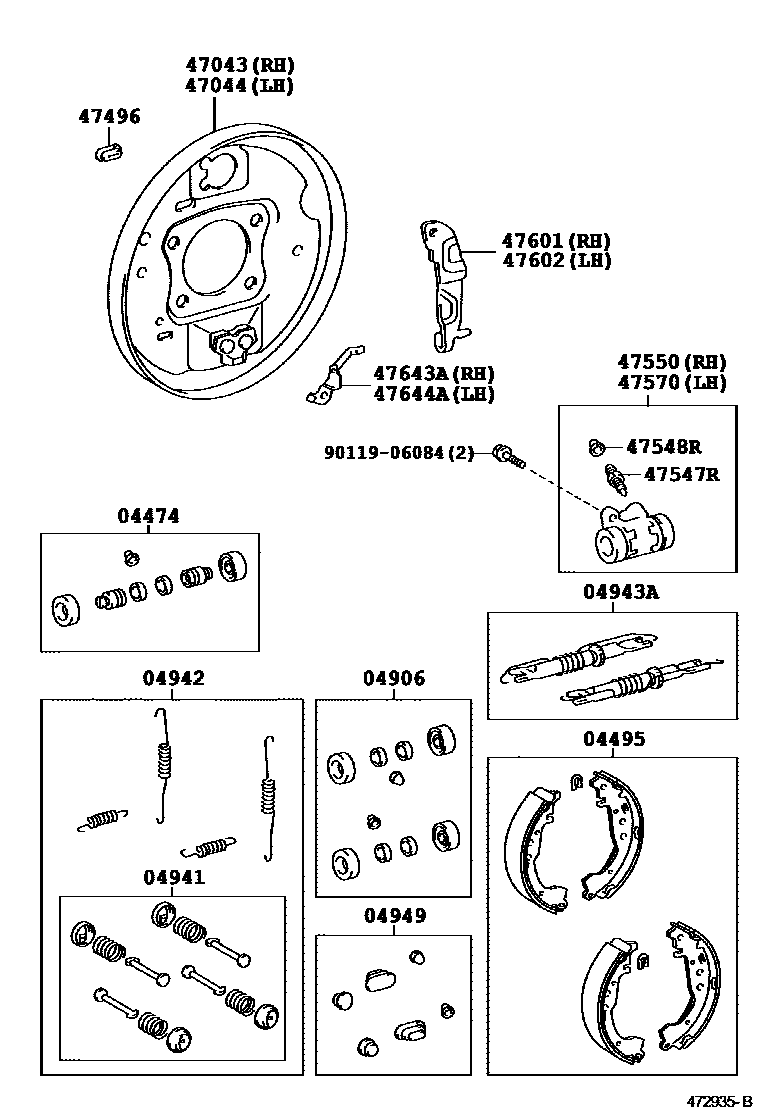

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-52010×2iNCP61200308-200507

04495SHOE KIT, REAR BRAKE

main04495-52040iNCP61200308-200507

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-52010iNCP61200308-200507

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-12010iNCP61200308-200502

main04941-46010iNCP61200502-200507

04942SPRING KIT, REAR BRAKE

main04942-12010iNCP61200308-200502

main04942-46010iNCP61200502-200507

04943ASTRUT KIT, REAR BRAKE

main04943-12010iNCP61200308-200507

04949PLUG KIT, REAR BRAKE

main04949-12010iNCP61200308-200507

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52010iNCP61200308-200507

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52010iNCP61200308-200507

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iNCP61200308-200507

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iNCP61200308-200507

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iNCP61200308-200507

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-52011iNCP61200308-200507

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-52011iNCP61200308-200507

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-47010iNCP61200308-200507

main47601-52100iNCP61200512

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-47010iNCP61200308-200507

main47602-52100iNCP61200512

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iNCP61200308-200507

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iNCP61200308-200507

9011906084

main90119-06084

19 parts on this diagram · 1 diagram in section
