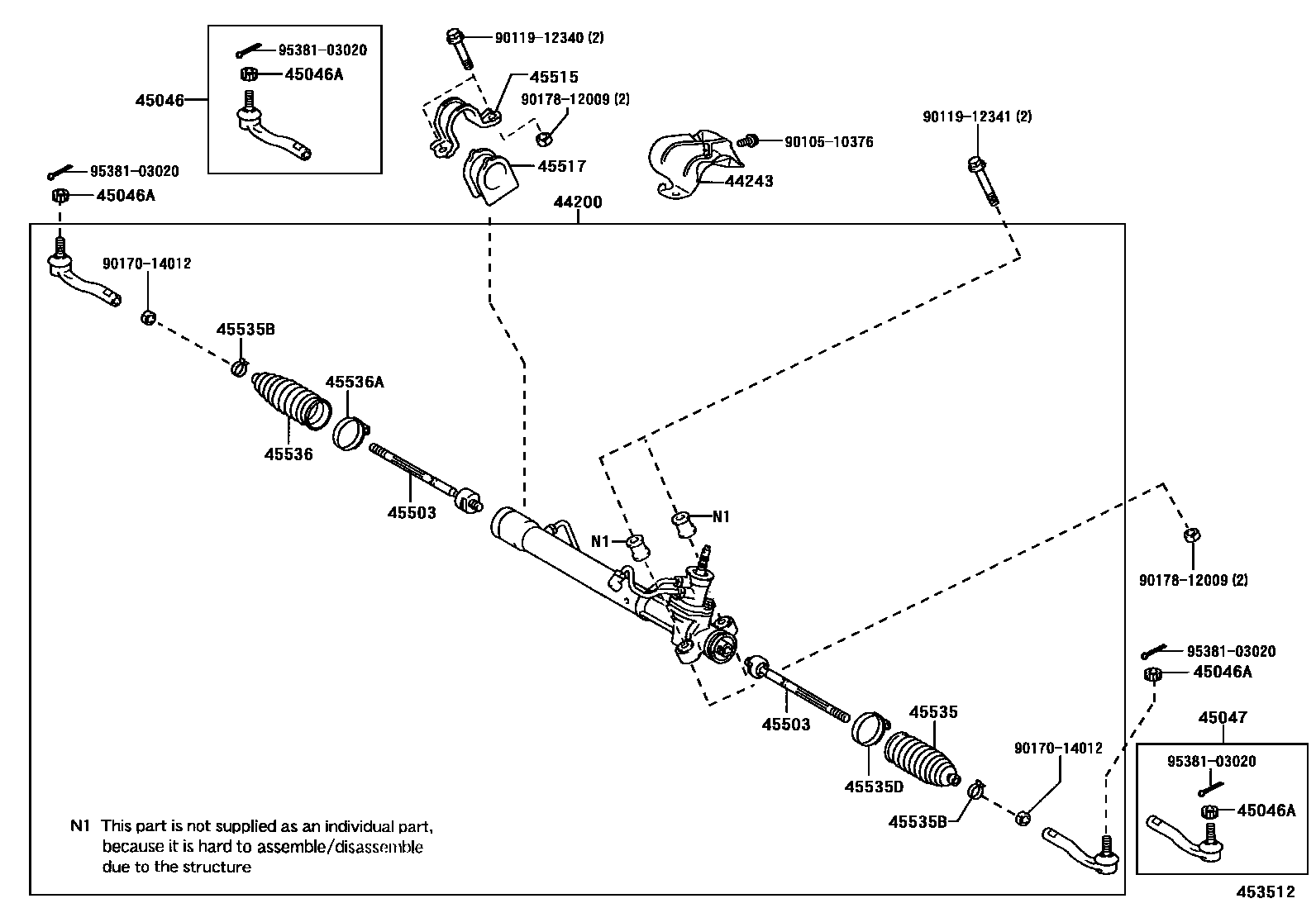

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-52340iNCP61200308-200507

sub44250-52200

sub90170-14012

44243INSULATOR, POWER STEERING RACK HOUSING HEAT

main44243-52010iNCP61200308-200507

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iNCP61200308-200507

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNCP61200308-200507

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iNCP61200308-200507

45503END SUB-ASSY, STEERING RACK

main45503-52030×2iNCP61200308-200507

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-52010iNCP61200308-200507

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-52010iNCP61200308-200507

45535BOOT, STEERING RACK, NO.1

main45535-52060iNCP61200308-200507

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iNCP61200308-200507

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-58008iNCP61200308-200507

45536BOOT, STEERING RACK, NO.2

main45535-52060iNCP61200308-200507

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-58008iNCP61200308-200507

9010510376

main90105-10376

9011912340

main90119-12340

9011912341

main90119-12341

9017014012

main90170-14012

9017812009

main90178-12009

9538103020

main95381-03020

19 parts on this diagram · 2 diagrams in section
