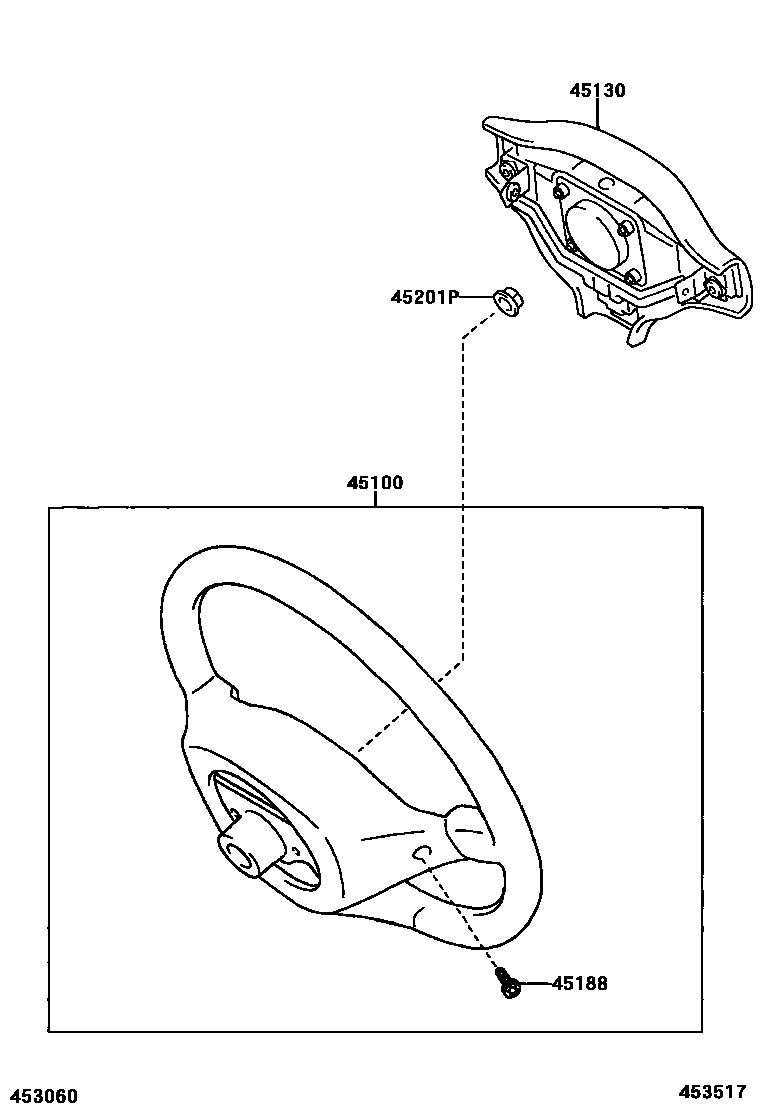

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-52080-B0iNCP61200308-200507

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

45130BUTTON ASSY, HORN

main45130-52300-B0iNCP61200308-200310

DK.GRAY,TRIM1#

main45130-52301-B0iNCP61200310-200408

DK.GRAY,TRIM1#

main45130-52302-B0iNCP61200507-200612

DK.GRAY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60026×2iNCP61200308-200507

L=19.0

45201PNUT, STEERING WHEEL SET

main90179-12071iNCP61200308-200507

4 parts on this diagram · 1 diagram in section
