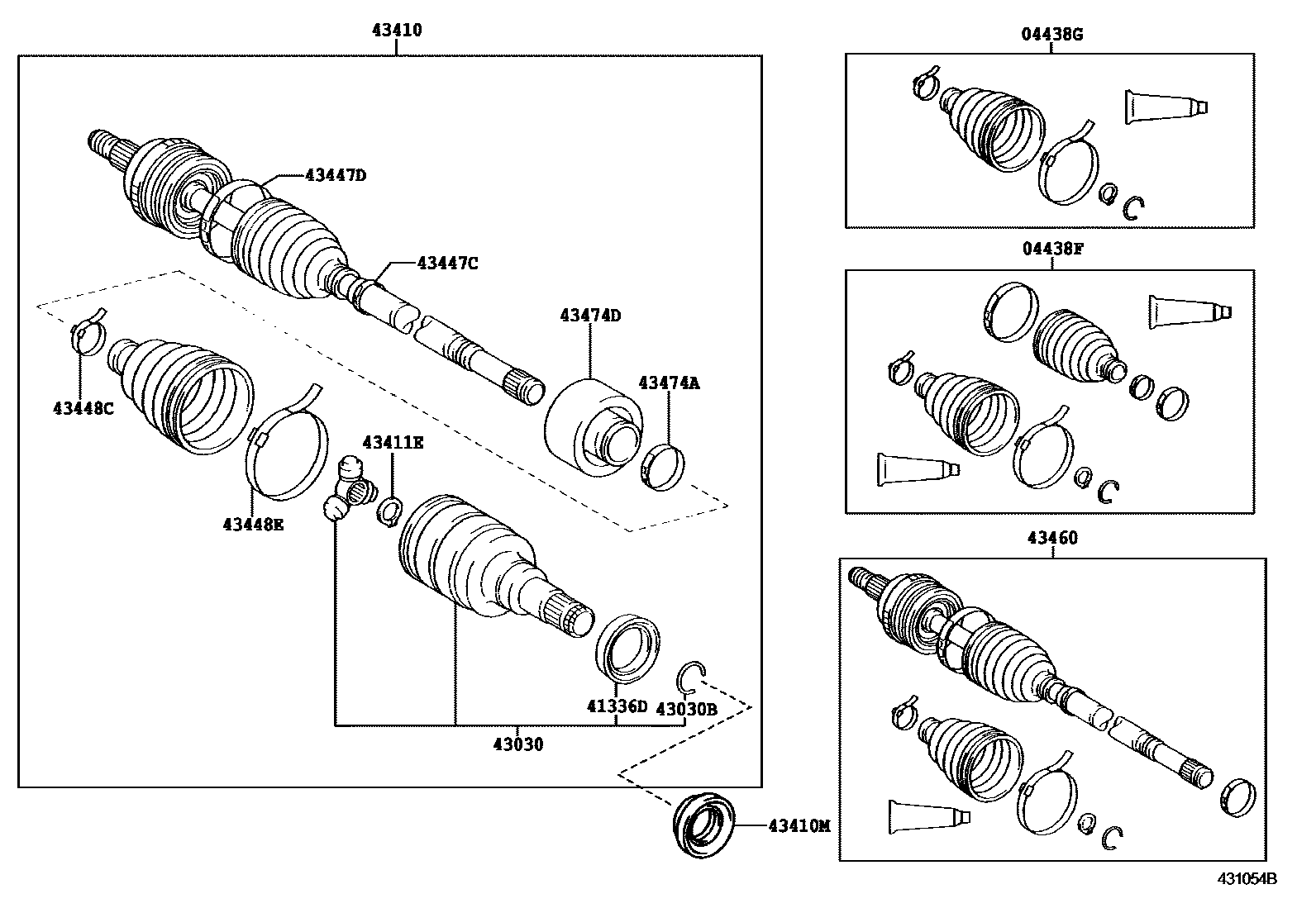

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-52260iNCP61200507-200603

main04427-52580iNCP61200604

sub04427-52671

main04438-52041iNCP61200308-200312

sub04438-52042

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-52190iNCP61200507

sub04437-52191

main04438-52030iNCP61200308-200312

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNCP61200308-200507

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-10011iNCP61200308-200507

sub43403-0W031

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-26004iNCP61200308-200507

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52070iNCP61200308-200507

sub43410-52071

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023iNCP61..5F200507-200612

main90311-34031iNCP61..4FC200507-200612

sub90311-34045

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22001iNCP61200507

sub90520-22029

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52110iNCP61200308-200507

sub42345-52260

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52100iNCP61200308-200507

sub42345-52250

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iNCP61200507

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01146iNCP61200308-200507

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59045iNCP61200308-200312

main43460-59365iNCP61200312-200507

sub43460-59366

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iNCP61200308-200507

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-52030iNCP61200308-200507

15 parts on this diagram · 2 diagrams in section
