TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

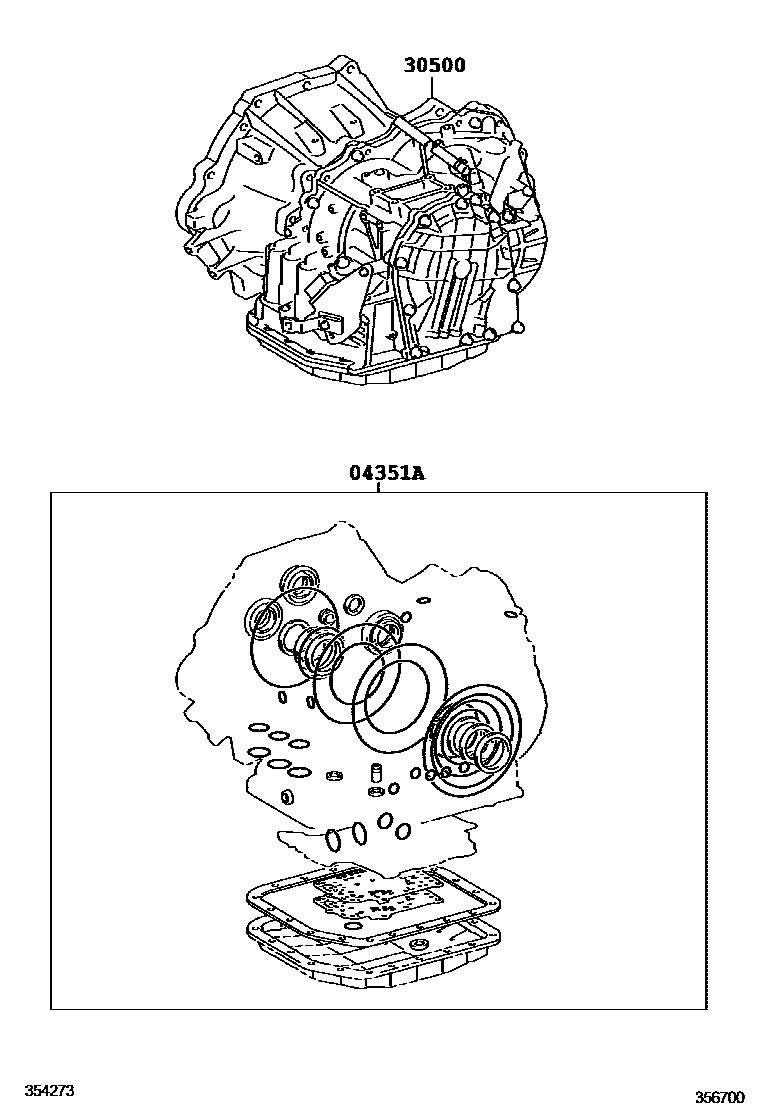

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-52040i200308-200503

main04351-52060i200507

main04351-52270i200503-200507

30500TRANSAXLE ASSY, AUTOMATIC

main30500-52280i200308-200502

U340E

main30500-52281i200502-200507

U340E

main30500-52361i200507-200508

U340E

main30500-52362i200508-200511

U340E

main30500-52363i200511

U340E

2 parts on this diagram · 1 diagram in section
