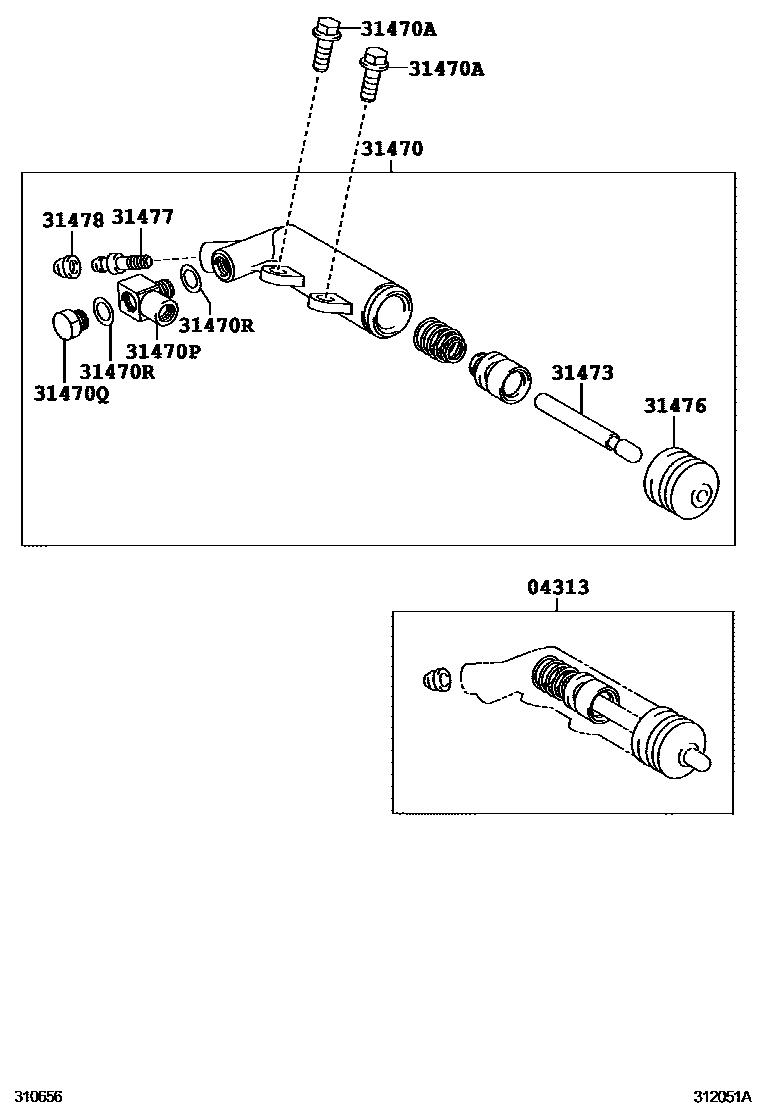

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-35060iNCP61..5F200308-200612

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-52011iNCP61..5F200308-200612

sub31470-12200

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iNCP61..5F200308-200507

*8-1.25PX22-17.1

31470PUNION(FOR CLUTCH RELEASE)

main90405-10073iNCP61..5F200308-200612

31470QBOLT, UNION(FOR CLUTCH RELEASE)

main90401-10056iNCP61..5F200308-200612

31470RGASKET(FOR CLUTCH RELEASE)

main90029-43002iNCP61..5F200407-200612

main90430-10074iNCP61..5F200308-200407

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-35050iNCP61..5F200308-200612

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iNCP61..5F200308-200612

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNCP61..5F200308-200612

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNCP61..5F200308-200612

10 parts on this diagram · 1 diagram in section
