VACUUM PIPING

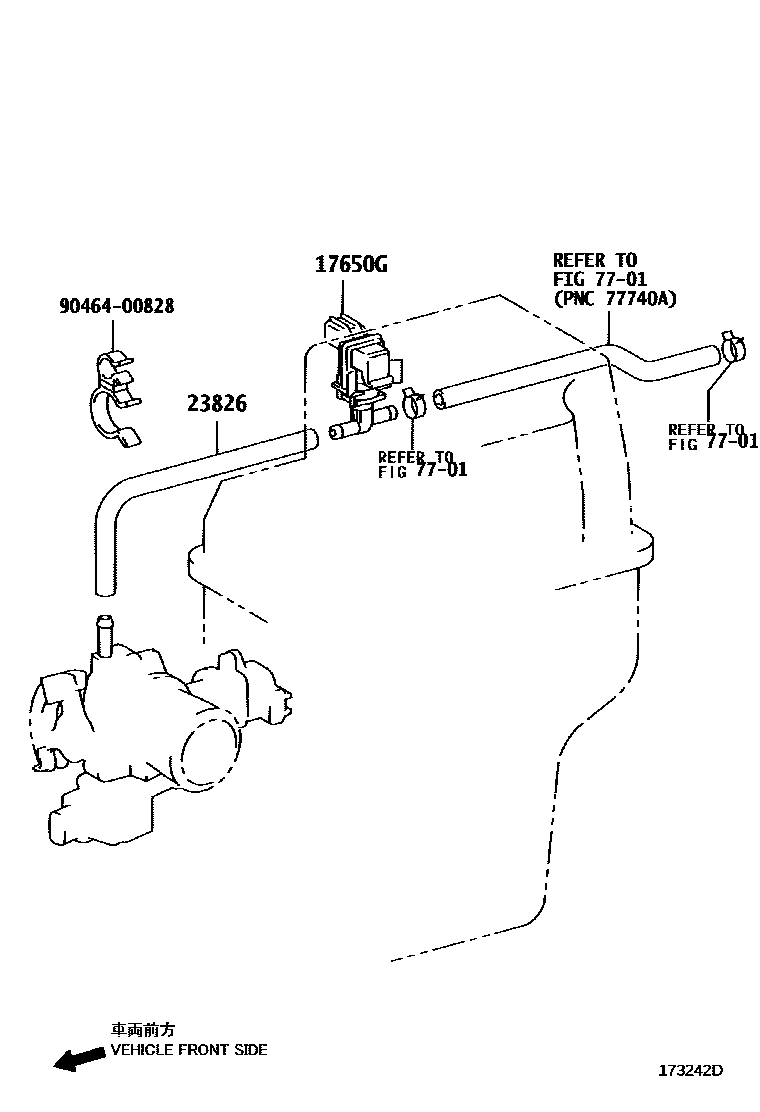

Parts diagram

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12202i200308-200507

23826HOSE, FUEL VAPOR FEED, NO.1

main95328-07036i200308-200507

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9046400828

main90464-00828

4 parts on this diagram · 1 diagram in section
