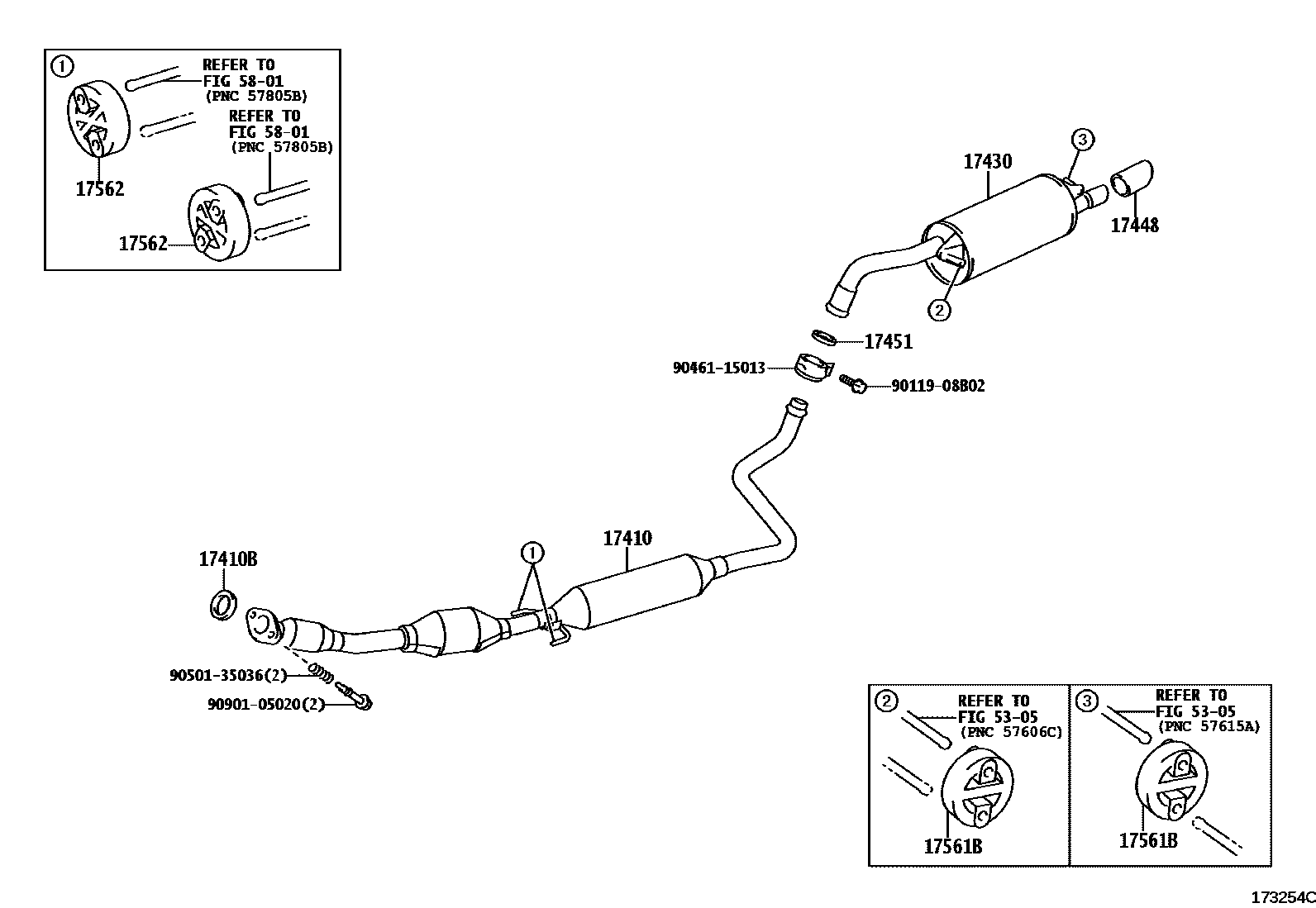

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-21440i1NZFE..NCP61200308-200507

17410BGASKET, EXHAUST PIPE

main17451-21030i1NZFE..NCP61200308-200507

17430PIPE ASSY, EXHAUST, TAIL

main17430-21480i1NZFE..NCP61200308-200507

main17430-21600i1NZFE..NCP61200507

17448BAFFLE, TAILPIPE

main17408-74080i1NZFE..NCP61200308-200507

17451GASKET, EXHAUST PIPE

main90917-06082i1NZFE..NCP61200308-200507

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-74280×2i1NZFE..NCP61200308-200507

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-23040×2i1NZFE..NCP61200308-200507

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9011908B02

main90119-08B02

9046115013

main90461-15013

9050135036

main90501-35036

9090105020

main90901-05020

13 parts on this diagram · 1 diagram in section
