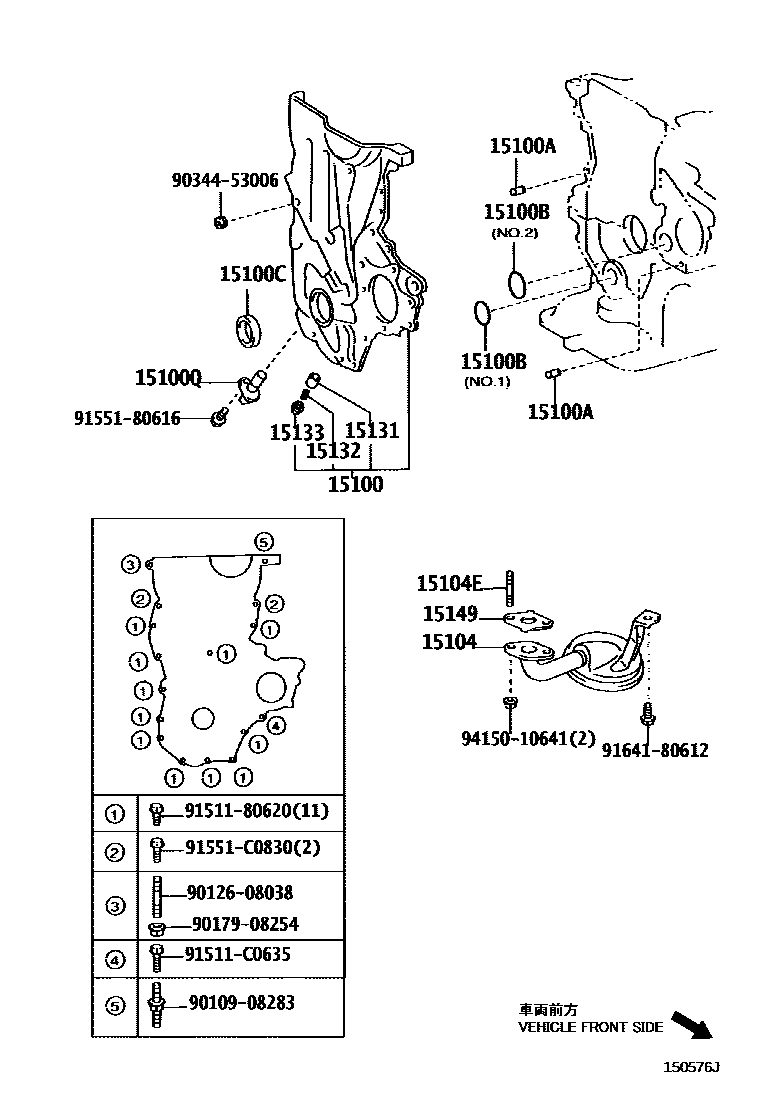

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-21040i1NZFE..NCP61200308-200507

sub15100-21042

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003i1NZFE..NCP61200308-200507

15100BRING, O(FOR OIL PUMP)

main90301-31012i1NZFE..NCP61200308-200507

NO.1

sub12151-21010

main90301-42006i1NZFE..NCP61200308-200507

NO.2

sub11497-21010

15100CSEAL(FOR OIL PUMP)

main90311-25021i1NZFE..NCP61200308-200507

sub90311-25032

15100QSENSOR, CRANK POSITION

main90919-05045i1NZFE..NCP61200308-200507

sub90919-05081

15104STRAINER SUB-ASSY, OIL

main15104-21021i1NZFE..NCP61200308-200612

sub15104-21022

main15104-21022i1NZFE..NCP61200612

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021i1NZFE..NCP61200308-200507

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFE..NCP61200308-200507

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21020i1NZFE..NCP61200308-200507

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21020i1NZFE..NCP61200308-200405

main15133-21030i1NZFE..NCP61200405-200507

15149GASKET, OIL STRAINER FLANGE

main16258-21030i1NZFE..NCP61200308-200507

9010908283

main90109-08283

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9151180620

main91511-80620

91511C0635

main91511-C0635

9155180616

main91551-80616

91551C0830

main91551-C0830

9164180612

main91641-80612

9415010641

main94150-10641

21 parts on this diagram · 1 diagram in section
