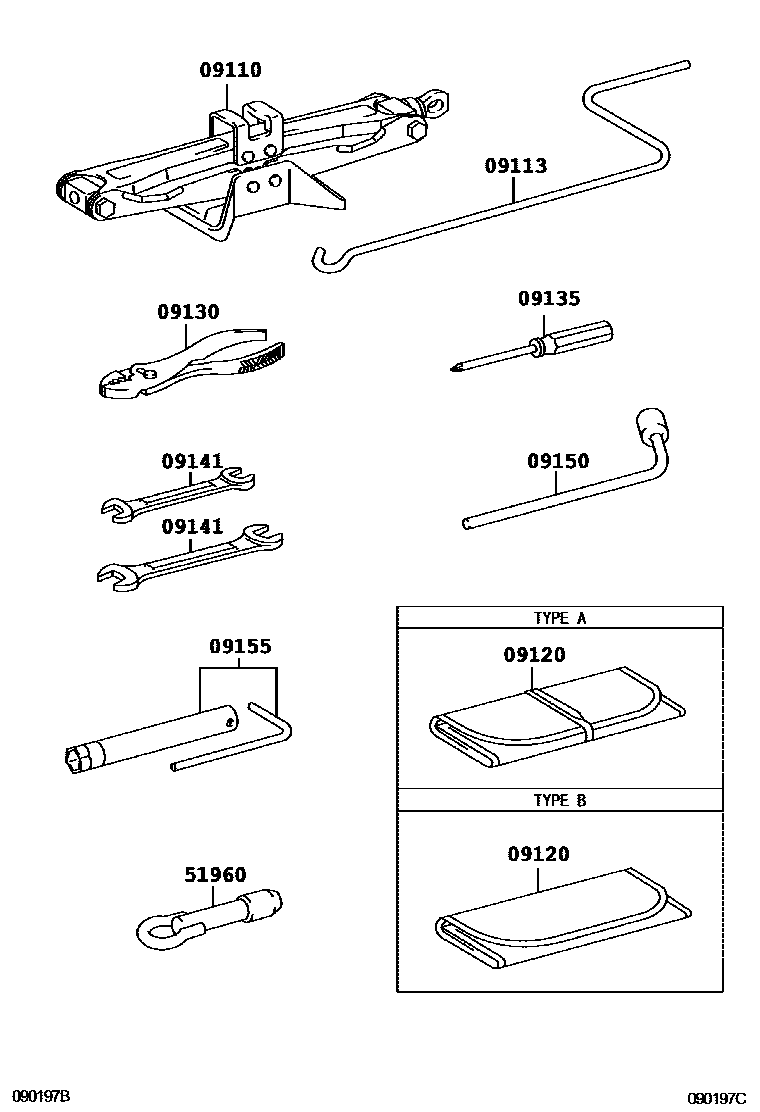

STANDARD TOOL

09110JACK ASSY

main09111-47010iNCP61200403-200612

sub09111-52060

main09111-52041iNCP61200308-200403

sub09111-52060

09113HANDLE, JACK

main09113-52040iNCP61200308-200507

sub09113-20050

09120BAG, TOOL

main09120-16030iNCP61200308-200507

TYPE A:REFER ILLUST.

main09120-52040iNCP61200308-200507

TYPE B:REFER ILLUST.

09130PLIERS

main99913-11500iNCP61200308-200507

09135DRIVER, SCREW

main99915-10700iNCP61200308-200507

09141SPANNER

main99914-10810iNCP61200308-200507

8 X 10

main99914-11214iNCP61200308-200507

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010iNCP61200308-200507

09155WRENCH, SPARK PLUG

main09155-74010iNCP61200308-200612

51960HOOK ASSY, FRONT

main51960-52080iNCP61200308-200507

9 parts on this diagram · 1 diagram in section
